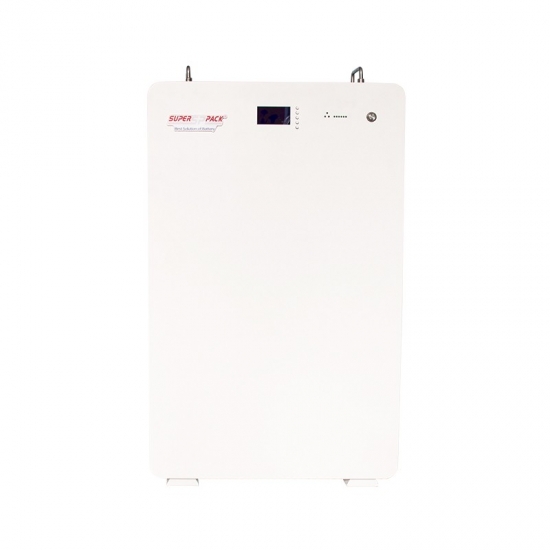

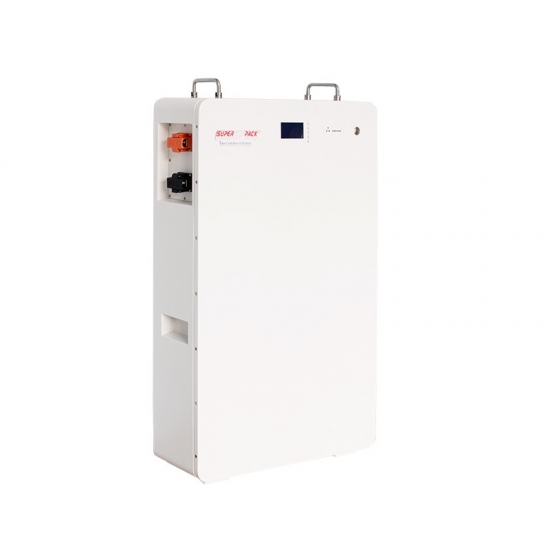

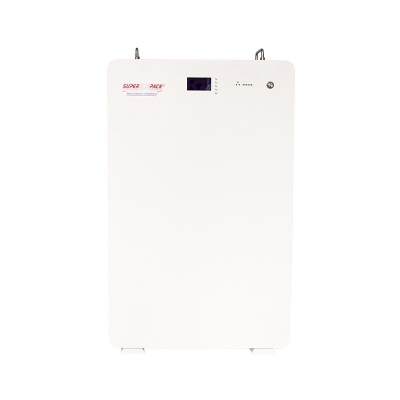

Superpack 51.2V 314Ah 16kWh all-in-one floor mounted LiFePO4 energy storage battery, built with intelligent BMS for full safety protection. Integrated all-in-one design for easy installation, ideal for off-grid solar systems as well as household and commercial emergency backup power supply.
Brand:
SuperpackItem NO.:
SP-ESS-16kWh-B1Product Origin:
ChinaColor:
whiteLead Time:
25-30 Working Days
The Superpack SP-ESS-16kWh-B1 is a 16.08kWh floor-mounted LiFePO4 energy storage battery with 51.2V nominal voltage and 314Ah capacity, specially designed for indoor residential self-consumption, off-grid power supply and commercial emergency backup. Adopting compact lightweight body design, this vertical floor-standing battery weighs only 118kg and fits limited indoor space perfectly. It delivers a max continuous output power of 7.68kW, with stable charge/discharge performance under wide temperature range from -20°C to 60°C.
| Item | SP-ESS-16kWh-B1 |
| BATTERY | |
| Cell Chemistry | LiFePO4 |
| Battery Energy | 16.08kWh |
| Battery Voltage | 51.2V |
| Nominal Capacity | 314Ah |
| Nominal Energy | 16076.8 |
| Operating Voltage Range | 43.2-57.6V |
| Maximum Output Power | 7.68kW |
| Maximum Charging Current | 150A |
| Maximum Continuous Discharge Current | 150A |
| Cycle Life | >6000 time, 25°C/77°F, 80%DOD |
| Dimensions (LxWxH) | 560x175x940mm |
| Weight | 118Kg |
| Designed Life-span | 10 years |
| Installation | Floor-Mounted Style |
| Communication | RS485,RS232 CAN |
| Certification | CE/UN38.3 |
| Charging Temperature Range | 0~45°C |
| Discharge Temperature Range | -20~60°C |
| Enclosure Protection | IP54 |
| Storage Ambient Temperature | 10~30°C |
| Warranty Period | 5 year |
| Application | Indoor |
| Inverter Choosing | Compatible with a variety of inverters |
48v Deep Cycle Lifepo4 Battery Powerwall for Home Solar Storage System
Learn More

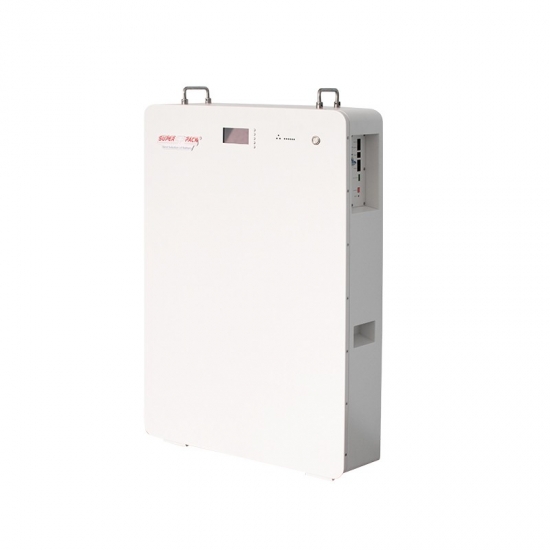

Superpack SP-ESS-6.66kWh-B1 51.2V 130Ah wall-mounted storage saves space with expandable modular design for off-grid homes. Featuring smart BMS, long cycle life and full safety certifications, it delivers reliable power for solar self-use & backup to lower electricity costs.
