Be prepared for unexpected power failures and off-the-grid camping trips
for emergency power supply energy storage of engineering vehicles
Effectively cleans carpets and hard floors, making your home smarter
For RGV,Robot,Automated Guided Vehicles,mobile,machinery equipment.
Superpack 48v Energy Storage System is widely apply for home and business.
Brand:

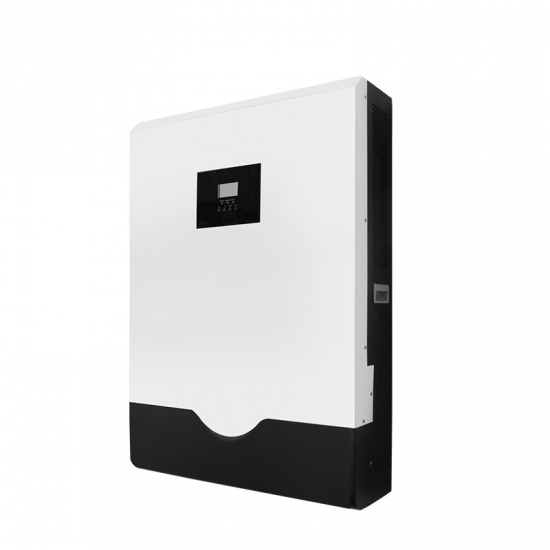

SuperpackPower wall 3Kwh 5Kwh LiFePO4 lithium battery for Home Energy Storage System
Superpack provides the most ideal lithium battery solution
Superpack 48v Energy Storage System is widely apply for home and business.
Superpack 51.2V 100Ah LiFePO4 lithium battery solar energy storage system adopts the latest Home Energy Storage System (HESS) battery system. With rich experience and advanced techniques, it features fashionable design, high energy, high power density, long service life, and easy installation and expansion, all of which reflect the real requirements of the end users and the strongest technical capability.
Superpack 51.2V 100Ah LiFePO4 lithium battery It is a kind of environmentally friendly backup power system.Compared with other products in the market now, this kind of product experiences a lower rate of capacity loss. With state-of-the-art power conversion and energy storage technologies, our energy storage system (ESS) offers high-efficiency power conditioning capabilities for demand management, power dispatch, renewable energy smoothing, etc. Our ESS can provide comprehensive energy storage for residential, commercial and utility applications. Our Li-ion battery portfolio covers cells, 48V modules, cabinets (indoor/outdoor) and containers, which offer customers excellent scalability and adaptability to a wide variety of requirements.
Features
• Fast Charge & Discharge Rates
• International standard 48V system.
• USB/RS485/Wi-Fi/GRS(option)
• 98% Efficiency Rate
• Perfect protection function of BMS
• Modular, Scalable & Proven Performance
• Long life cycle, >6000 times at 80% DOD
• Easy to install
• Environmental friendly
• Perfect thermal design
Parameter
| Model | SPESS-3000B | SPESS-5000B |
| Rated Voltage | 51.2V | 51.2V |
| Operating Voltage | 40-58.4V | 40-58.4V |
| Rated Capacity | 60 Ah | 100 Ah |
| Energy | 3.0KWh | 5.0KWh |
| Max. Continuous Charge Current | 60A | 100A |
| Max. Continuous Discharge Current | 80A | 120A |
| Charging temperature range | 0-45℃ | 0-45℃ |
| Discharge temperature range | -10-60℃ | -10-60℃ |
| Approx. Dimension L*W*H | 793.7mm*562mm*138mm | |
| Approx. Weight | 48kg | |
| Life | 10 Years | |
| Installation form | Wall-mounted | |
| Battery BMS protection function |
Overcharge/overdischarge/overtemperature/ overcurrent/short circuit |
Overcharge/overdischarge/overtemperature/ overcurrent/short circuit |
| Power charging | ||
| Cycles(80%DOD 25℃) |
(170Vac~280Vac)±2% (90Vac~280Vac)±2% |
|
| Solar panel input voltage |
Voltage ≤145V, current ≤60A, maximum power 4200W |
|
| AC output parameters | ||
| Output voltage | AC220V | AC220V |
| Maximum output power | Two output ports total: 3000W | Two output ports total: 5000W |
| Peak output power | 6000W/5S | 10000W/5S |
| Wave type | Sine wave | Sine wave |
| Frequency | 50Hz | 50Hz |
| Efficient | >95% | |
| LCD | ||
| Display size | 41*13mm | |
| Working power consumption | MAX8mA | |
| Standby power consumption | MAX0.5mA | |
| Sleep power consumption | MAX50uA | |
Product dimensions
Compatible with 48V DC Inverter
| Inverter Brand | Inverter Type | Communication | Application | Installation |
|
sunny island 6.0H | Powerwall Battery | ||
|
Multiplus 48V | CAN | On/off-grid* | Powerwall / Rackmount Battery |
|
SUN-SG01LP1 series | CAN / RS485 | On/off-grid* | Powerwall / Rackmount Battery |
| SUN-SG03LP1 series | CAN / RS485 | On/off-grid* | Powerwall / Rackmount Battery | |
|
SPH3000 - 6000 | CAN | On/off-grid | Powerwall / Rackmount Battery |
| SPF2000 - 5000 | RS485(9600) | On/off-grid | Powerwall / Rackmount Battery | |
|
GW-BP | CAN | On/off-grid | Powerwall / Rackmount Battery |
| SBP GW-ES | CAN | On/off-grid | Powerwall / Rackmount Battery | |
| EM | CAN | On/off-grid | Powerwall / Rackmount Battery | |
|
Xtender 48V serie | CAN | On/off-grid | Powerwall / Rackmount Battery |
|
Infinisolar series 48V | RS485(9600) | On/off-grid | Powerwall / Rackmount Battery |
| Axpert series 48V | RS485(9600) | On/off-grid | Powerwall / Rackmount Battery | |
|
RHI series | CAN | On/off-grid | Powerwall / Rackmount Battery |
|
LXP Hybrid 6K/8K | CAN | On/off-grid | Powerwall / Rackmount Battery |
|
BD series | CAN | On/off-grid | Powerwall / Rackmount Battery |
|
SMT-5K-TL-LV | CAN | On/off-grid | Powerwall / Rackmount Battery |
|
Conext XW Pro series | CAN | Debugging in progress | |
|
HYD series | RS485(115200)/CAN | Debugging in progress | |
|
Any-grid PSW-H-5kW-230/48V | RS485(9600) | Debugging in progress | |
|
SH5K | CAN | Debugging in progress | |
|
BK-BP Series | CAN | Debugging in progress |
Energy storage system for home with lithium ion battery 5kWh/10kWh/15kWh/20kWh. The all in one energy storage system includes inverter, controller and batteries.
5KW All-In-One Off-Grid Energy Storage System Floor Mounting is made of lithium iron phosphate battery, which is safety, long life, low internal resistance, and high charge and discharge efficiency.
SP-ESS-1.5K-5K-E1 Wheeled home energy storage system for easy mobility, a flexible modular design,Scalable from 5 to 20 KWh
Solar Home System (SHS) kits are designed for easy handling and selection, Each kit converts the sun’s energy into electricity, to power various DC electrical appliances
10pcs 51.2V LiFePO4 battery module in series + 1pc HV controller, compact design.
Suitable for Africa can waterproof 12V small household energy storage system
Wide Application in Home Solar Energy System and Industrial Projects
48V50Ah, 48V100Ah, 48V150Ah, 48V200Ah Modular Energy Storage System (ESS)
Rack energy stroage battery,It can provide energy storage and electricity for families. Its flexible to make the ESS from 5kwh to 80kwh with them for telecom base station,home/small business/base station use
Six 48V52AH LiFePO4 Battery module to be 288V battery energy storage system
