76.8V 150Ah (11520Wh) LiFePO4 battery for electric sightseeing cars. Built-in BMS with CAN/RS485
dual communication, control output and self-locking switch. Black powder-coated steel housing,
pre-installed Anderson connector, >2000 cycles with full safety protection.
Brand:
SuperpackItem NO.:
SPF76V150-SMProduct Origin:
ChinaColor:
BlackLead Time:
25-30 Working Days
| Item | General Parameter | Remark |
| Model | SPF76.8V150-SM | |
| Rated Capacity | 150.0Ah | Standard discharge 0.2C after standard charge 0.2C |
| Minimum Capacity | 142.5Ah | |
| Nominal Voltage | 76.8V | |
| Life Expectation | Higher than 80% of the Initial Capacity of the battery |
1）Charge:CC@0.2C to 87.6V, then CV till current to 0.05C 2）Rest: 30min. 3）Discharge: 0.2C to 60.0V Temperature:25±2℃ Carry out 2000cycles |
| Discharge cut-off voltage | 57.6V~64.8V | Recommended 67.2V(2.8V/Cell) |
| Charge limiting voltage | 86.4V~87.6V | |
| Cell and assembly method | IFP54174145 3.2V 150Ah | |
| Housing material | Steel Plate Cold | Black |
| Standard charge | 0.2C constant current (CC) charge to 87.6V then constant voltage (CV) 87.6V charge till charge current decline to ≤0.05C; |
Charge time : Approx 7h |
| Standard discharge | Constant current 0.2C，Cut-off voltage 60.0V | |
| Maximum Charge Current | 100A@25±2℃ | Recommend ≤30A |
| Maximum Continuous Discharge Current | 150A@25±2℃ | Peak current 200A ＜30S |
| Operation Temperature Range | Charge: 0～55℃ | |
| Discharge: -20～60℃（cell surface recommended temperature） |
60±25%R.H. 25 ± 2°C recommended |
|
| Storage Temperature Range | Less than 1 year : 0～25℃(SOC≥50%) | 60±25%R.H. at the shipment state |
| Less than 3 months:-5～35℃(SOC≥50%) | ||
| Approx. Weight | (85.7±0.5)Kg | |
| Internal resistance | 5mΩ≤ACR≤20mΩ | @AC 1KHz，50%SOC |
| Dimension | L*W*H=(822*410*201mm)±2mm | |
| Terminals | M8*1.25 9.7N.M±10% | |

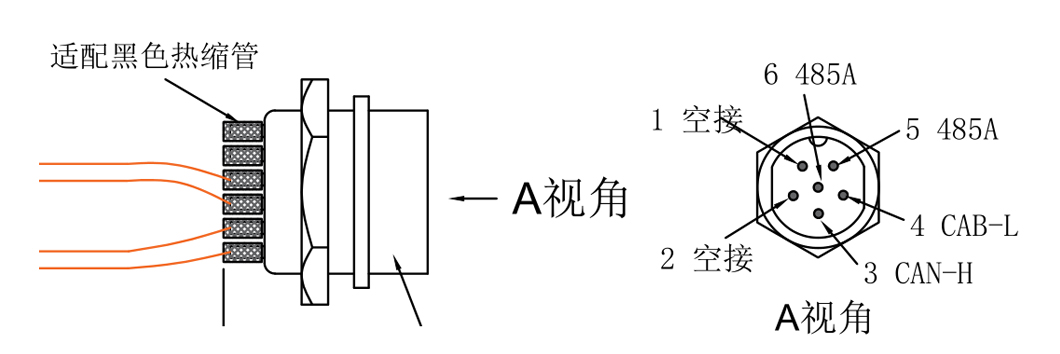

| Communication | CAN/RS485 | |
| Control Output | Self-locking switch | |
| IP | IP65 |
FAQ:
Q1: Is this battery plug & play for electric sightseeing cars?
A: Yes. Pre-assembled Anderson connector, ready for direct replacement of compatible sightseeing cars.
Q2: What communication protocols does the BMS support?
A: CAN & RS485 dual communication, with control output and self-locking switch.
Q3: Can I use my existing charger?
A: Matching CE charger recommended. Third-party charger must reach 87.6V.
Q4: What material is the battery case?
A: Black powder-coated steel case, splash-resistant for daily use.
Q5: What is the warranty period?
A: 2-year warranty. Damage from misuse, crash or immersion excluded.
