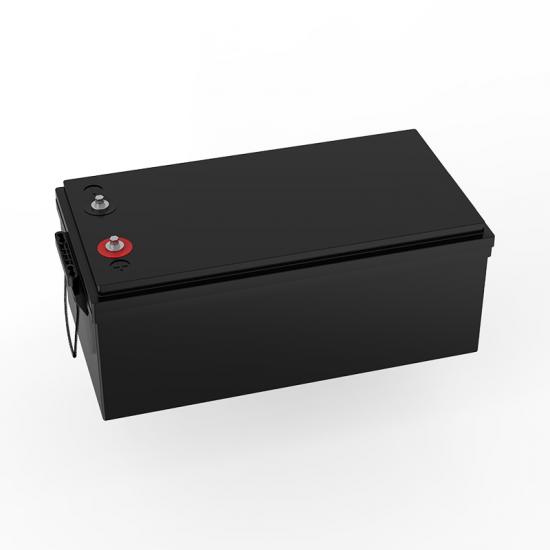

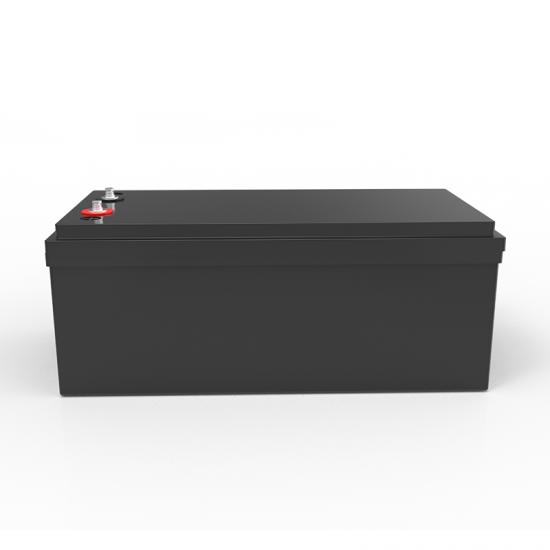

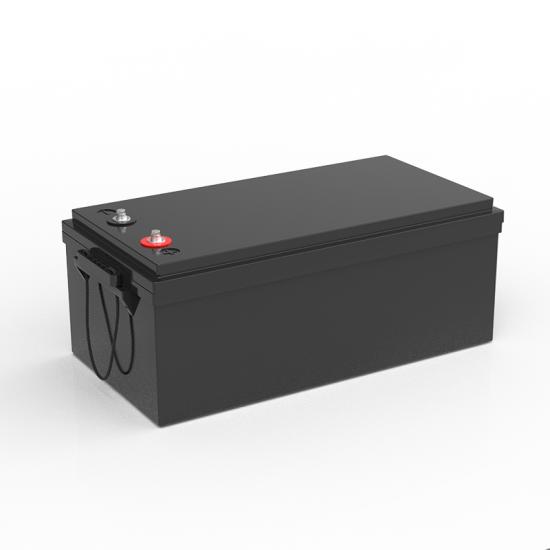

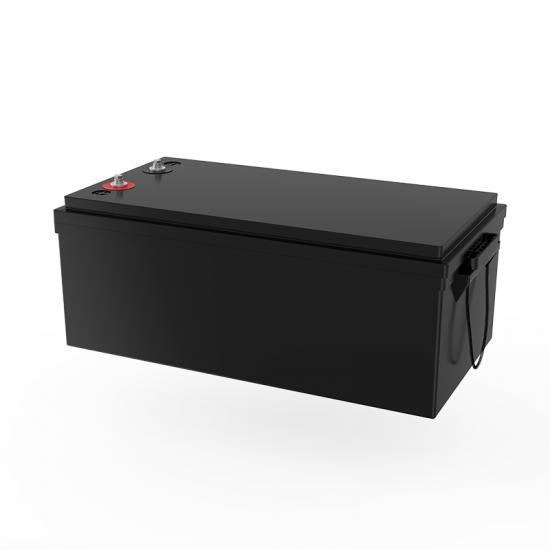

24V200Ah Lithium iron Phosphate Battery

Supports Bluetooth functionality to monitor real-time battery level, voltage and temperature information on the app

Grade A ferrous phosphate lithium-ion battery cell

1/3 the weight of lead-acid batteries and recyclable

Stable and reliable performance over a 10-year service life

Three charging methods (battery charger, alternator, solar)

Over 4,000 cycles with 100%DOD, 6,000 cycles with 80%DOD, 15,000 cycles with 60%DOD

Product categories

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Item	General Parameter	Remark
Rated Capacity	200Ah	Standard discharge 0.5C after standard charge 0.5C
Minimum Capacity	180Ah	Standard discharge 0.5C after standard charge 0.5C
Nominal Voltage	25.6V
Life Expectation	Higher than 80% .of the Initial Capacity of the battery	1）Charge:CC@0.5C to 29.2V, then CV till current to 0.05C 2）Rest: 30min. 3）Discharge: 0.5C to 20V Temperature:20±5℃ Carry out 2000cycles
Discharge cut-off voltage	20~22V
Charge cut-off voltage	28.8~29.2V
Cell and assembly method	IFP54173200-3.2V206Ah	8S1P
Housing material	ABS
Standard charge	0.5C constant current (CC) charge to 29.2Vthen constant voltage (CV) 29.2V charge till charge current decline to ≤0.05C	Charge time :Approx 7h
Standard discharge	Constant current 0.5C，Cut-off voltage 20V
Maximum Charge Current	200A@25℃
Maximum Continuous Discharge Current	200A@25℃
Operation Temperature Range	Charge: 0～60℃	60±25%R.H. 23 ± 5°C
Operation Temperature Range	Discharge：0～60℃（cell surface temperature≤80℃）	60±25%R.H. 23 ± 5°C
Storage Tempe	Less than 1 year : 0～25℃(SOC≥50%)	60±25%R.H. at the shipment state
Storage Tempe	Less than 3 months:-5～35℃(SOC≥50%)	60±25%R.H. at the shipment state
Approx. Weight	(36.2±0.7)Kg
Internal resistance	≤10mΩ	1KHz，AC
Dimension	LWH=（520267221mm）±2mm
Terminals	M8
Communication	Bluetooth
