The24V LiFePO4 Solar Tracker Battery optimizes the efficiency, dependability, and sustainability of solar tracking systems by offering a reliable energy storage solution designed to meet the specific demands of solar energy harnessing and utilization. Stored energy within the battery becomes accessible during periods of reduced sunlight or at night, ensuring continuous operation. This stored power can serve diverse applications or seamlessly connect to the electrical grid, providing reliable energy to residences, commercial establishments, or other facilities.
Brand:
SuperpackProduct Origin:
ChinaColor:
BlueLead Time:
25-30 Working DaysSuperpack offers a wide range of solar panel tracker battery which can be used in off-grid electrical various solar tracking systems by solar energy,which can calculate the sun's position using the current longitude, latitude, and time of day, and position of the tracking solar PV system to face the sun directly.
More Customized 25.6V lifepo4 battery pack for solar tracker system are available .
LiFePo4 Battery 25.6V 4.5Ah
LiFePo4 Battery 25.6V 6.6Ah
LiFePo4 Battery 25.6V 6.8Ah
LiFePo4 Battery 25.6V 8Ah
LiFePo4 Battery 25.6V 10Ah
LiFePo4 Battery 25.6V 12Ah
How does the solar tracker battery work?
A solar tracker battery typically works in conjunction with a solar tracking system, which adjusts the orientation of solar panels throughout the day to maximize their exposure to sunlight.
1.Solar Panels: Solar panels are mounted on a solar tracker, which moves them to track the sun's position throughout the day.
2.Energy Generation: As the solar panels track the sun, they generate electricity from sunlight.
3.Energy Storage: The electricity generated by the solar panels is then directed to charge the solar tracker battery. This battery serves as an energy storage system, storing excess electricity generated during peak sunlight hours.
4.Usage and Distribution: The stored energy in the battery can be used later when sunlight is not available, such as during the night or during periods of low sunlight. It can power various applications or be connected to the electrical grid to supply power to homes, businesses, or other facilities.
5.Optimizing Efficiency: By storing excess energy during peak sunlight hours, the solar tracker battery helps optimize energy usage and ensures a consistent power supply, even when solar panel output fluctuates due to weather conditions or changes in the sun's position.
Features
● Longer cycle life, Higher safety, reliability and energy density
● Smaller size and lighter weight, easy installation
● Better performance at high & low temperature
● Intelligent battery management system
Application
● Solar Panel Tracker

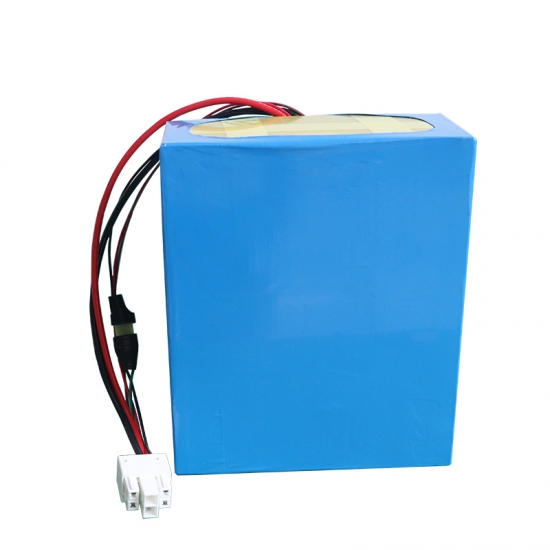

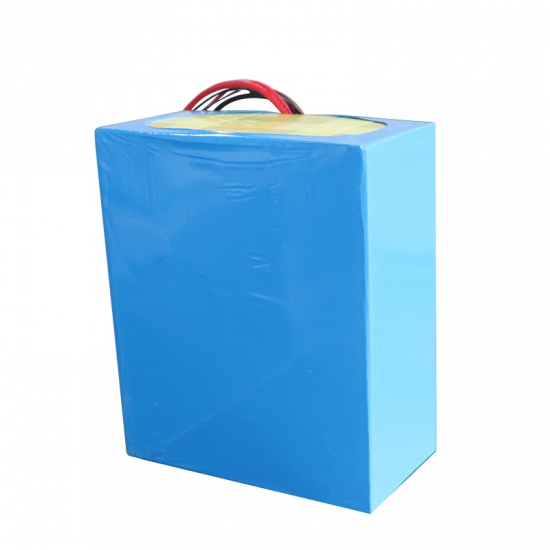

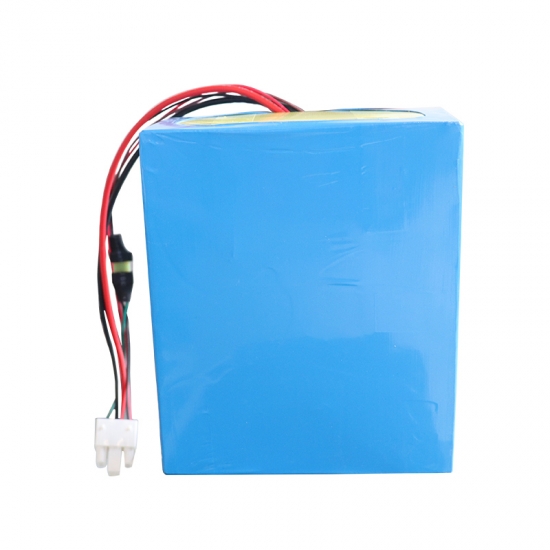

Solar Tracking System Product Specification
|
Item |
General Parameter |
|
Nominal Voltage |
25.6V |
|
Rated Capacity |
8.0Ah |
|
Minimum Capacity |
7.6Ah |
|
Dimension |
L*W*H=146*135*70(±2)mm |
|
Approx. Weight |
1.73Kg |
|
Life Expectation |
Higher than 80% of the Initial Capacity of the battery |
|
Discharge cut-off voltage |
2.3V/Cell(≥18.4V) |
|
Charge cut-off voltage |
3.65V/Cell（≤29.2V） |
|
Cell and assembly method |
IFR26700 |
|
Housing material |
PVC |
|
Standard discharge |
Constant current 0.2C，Cut-off voltage 20V |
|
Maximum Charge Current |
8A@20℃ |
|
Maximum Continuous Discharge Current |
10A@20℃ |
|
Internal resistance |
≤150mΩ |
Lithium iron phosphate power batteries are used in electric vehicles with long cycle life and stable performance.
