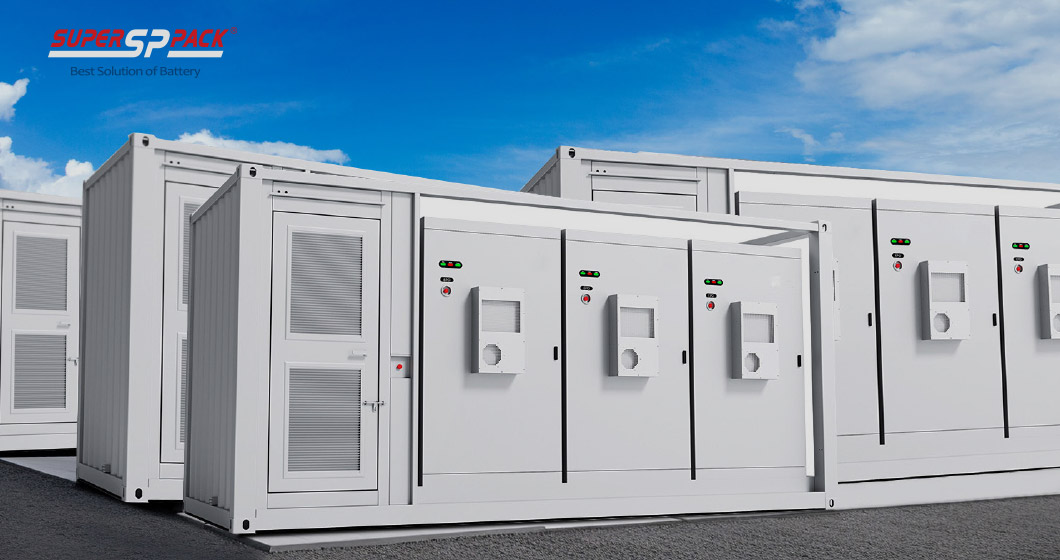

400KW/860KWh Energy Storage Battery Container System
400KW/860KWh Energy Storage Container (ESS) is designed for various applications including industrial and commercial energy storage, distributed energy systems, and microgrid setups. This comprehensive storage solution combines a lithium-ion battery system with energy conversion, management, monitoring, temperature regulation, and fire suppression systems. It offers flexibility for customization to meet specific customer needs.
Brand:
SuperpackItem NO.:
400KW/860KWhProduct Origin:
ChinaLead Time:
25-30 Working DaysIn remote areas without electricity, off-grid microgrid ESS with distributed solar or green energy units minimize costs and time. These microgrids offer quick setup, lower costs, and higher ROI. In areas with insufficient utility power, on/off-grid microgrid ESS prioritize solar or green energy, ensuring bill savings and reliable backup power when needed.
Performance characteristics:
Utilizing photovoltaic systems optimizes renewable energy utilization.
Demonstrates high system practicability. Requires less maintenance and fuel consumption compared to single-use diesel generators. Offers superior load matching flexibility, accommodating a wider range of load systems, including larger AC loads and shock loads. Better aligns load and power generation within the system.
Advantages of the 20ft container energy storage battery system:
1.Integrated Energy Storage Design
2.Lithium Battery Design with BMS/EMS
3.Factory-Integrated Automatic Emergency Backup
4.Automatic Diesel Generator Supplementation
5.High ROI Potential by Selling Energy to Utility
Specifications:
|
Model |
400KW/860KWh |
|
Battery Parameters |
|
|
Cell Type & Capacity |
LiFePO4 - 280Ah |
|
Battery Module Type |
16S1P (5U) |
|
Battery Capacity Range |
4*240S1P |
|
Rated Voltage |
768V |
|
System Capacity |
860KWh |
|
AC Side On-grid Parameters |
|
|
Grid Type |
3L/N/PE |
|
Rated Output/Input Power |
400KW |
|
Rated Grid Voltage |
400Vac |
|
Grid Voltage Range |
± 15% |
|
Frequency Range |
45~55 Hz |
|
Rated Output/Input Current |
577A |
|
Harmonics |
≤ 3% (@ rated power) |
|
General Parameters |
|
|
Dimensions (W*D*H) |
6100*2440*2930mm (Inside 5900*2350*2690mm) |
|
Max. Weight |
25000KG |
|
Enclosure Protection |
IP55 |
|
Operating Temperature Range |
-20 ~ 55°C (T≥45°C Be derated output power) |
|
System Connection Type |
AC coupled (DC coupled optional) |
|
Cooling Method |
Battery Compartment: HVAC, Electrical Compartment: Forced Air Cooling |
|
Fire Fighting System |
FAS / FM2000 / Novec 1230 |
|
Anti-corrosion Grage |
C3 |
|
Relative Humidity |
0~95% R.H. |
|
Altitude |
< 2000m ( 2000~3000m be derated output power) |
|
Noise Emission |
≤ 75dB |
|
Communication Port |
CAN / RS485 / Ethernet |
|
Communication Protocol |
MODBUS RTU/MODBUS TCP/IP |
|
Warranty |
5 years (Can be extended up to 10 years |
|
Certification |
CE (IEC62619, IEC62109, IEC62477, IEC61000), G99, EN50549, VDE4105, AS4777, UN38.3 |
