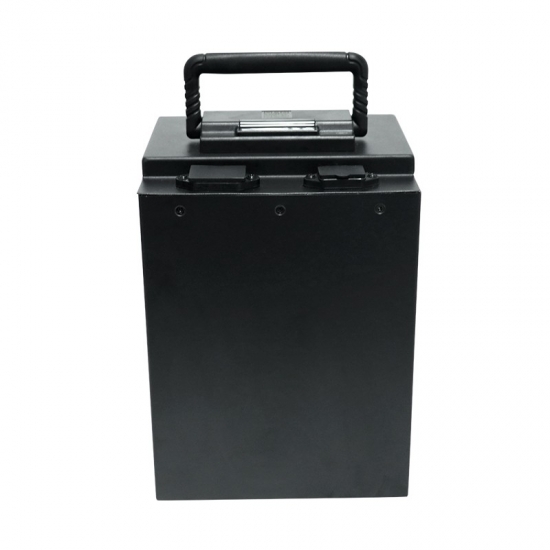

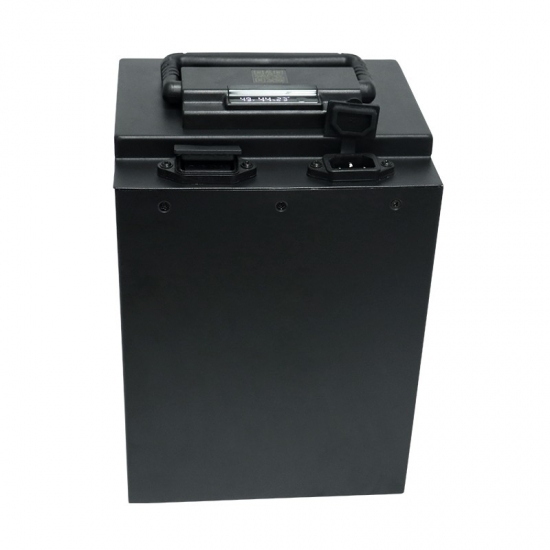

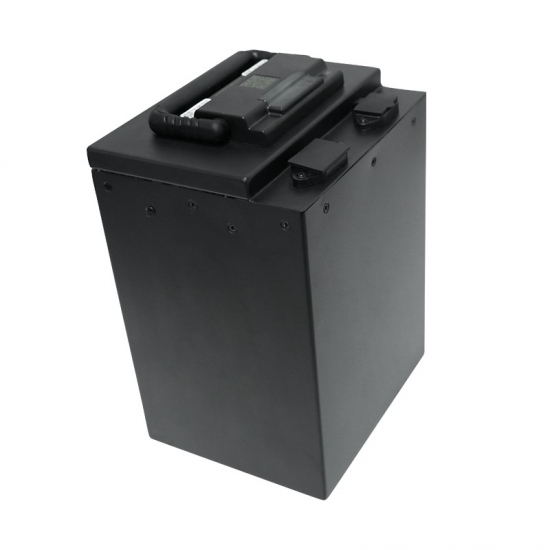

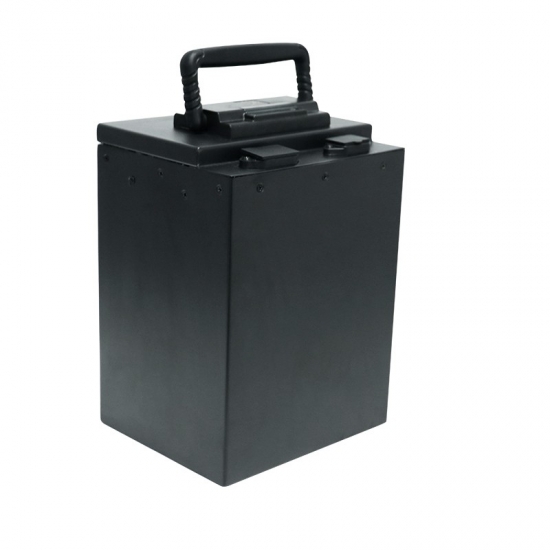

Reliable Superpack 48V24Ah LiFePO4 Batteries for Electric Bike
This compact 48V 24Ah lithium battery features a lightweight, high-power design and delivers an eco-mode range of 50–55 km. Available in multiple housing sizes, it is compatible with all 48V e-bike frames and serves as a direct replacement for four 12V lead-acid batteries. The low weight reduces climbing load, while the integrated BMS ensures stable output and extended cycle life.
Brand:
SuperpackProduct Origin:
ChinaColor:
BlackLead Time:
25-30 Working Days
SPF48V24-Cat parameter
|
Model |
SPF48V24-Cat |
|
Electrical Performance |
|
|
Nominal Voltage |
48V |
|
Nominal Capacity |
24Ah |
|
Energy |
1152Wh |
|
Single Cell |
24AH/24AH |
|
Cycle life/0.2C |
>2000 Cycles |
|
Charging Performance |
|
|
Standard Charging |
12A |
|
Fast Charging |
24A |
|
Max Charging Voltage |
54.75V |
|
Charging Temp Range |
0~55°C |
|
Discharging Performance |
|
|
Standard Discharging |
12A |
|
Fast Discharging |
24A |
|
Super Fast Discharging |
30A (<48mins) |
|
Peak Discharging |
40A (<300S) |
|
Cut off Voltage |
>37.5V |
|
Discharging Temp Range |
-20~60°C |
|
Driving Rang |
68Km (25Km/h) |
|
Communication Performance |
|
|
CAN II |
Available |
|
RS485 |
Available |
|
UART |
Available |
|
LCD Display |
Available |
|
Bluetooth |
Reserved |
|
GPS Port |
Reserved |
|
IOT Port |
Reserved |
|
Appearance Performance |
|
|
Dimensions(L*W*H) |
184*155*265mm |
|
Weight |
9.7Kg |
|
Charging Terminal |
Pin shaped terminal |
|
Discharging Terminal |
Pin shaped terminal |
|
IP Rating |
IP65 |
|
Case Material |
Stainless Steel 304 |
FAQ
Q: What is the driving range of the portable 48V 24Ah e-bike battery?
A: Approx. 68 km at a constant 25 km/h. Features a built-in handle for easy removal and charging. Actual range varies with rider weight, terrain, gradient, and speed.
Q: Can individual buyers customize the appearance or parameters of the 48V 24Ah battery?
A: Yes. We accept OEM/ODM orders of any size. Customizable items include dimensions, connectors, BMS charge/discharge current ratings,
and logo printing. On-site production line inspections are welcome.
Q: Is the cell quality of the 48V 24Ah battery reliable?
A: Yes. All packs use brand-new Grade A cells from top-tier brands. No used, disassembled, or recycled cells. Factory test reports are available upon request, and we can also assemble with customer-specified cells.
