Item NO.:

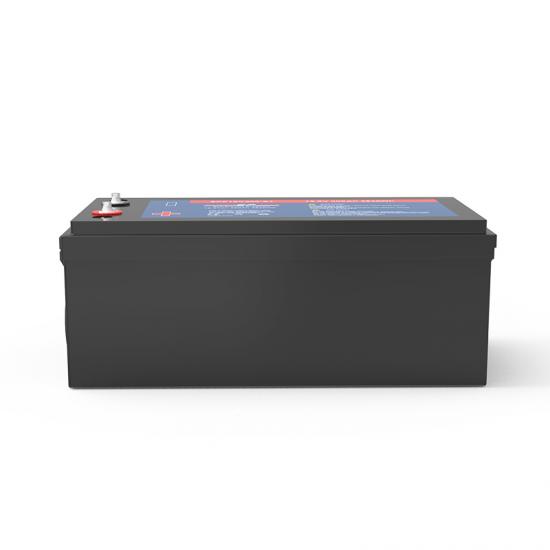

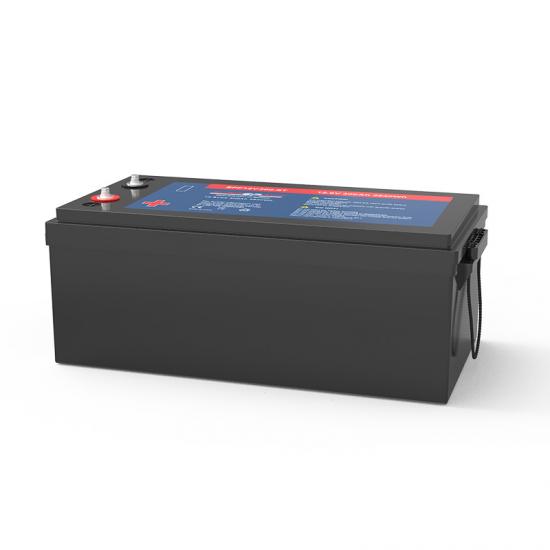

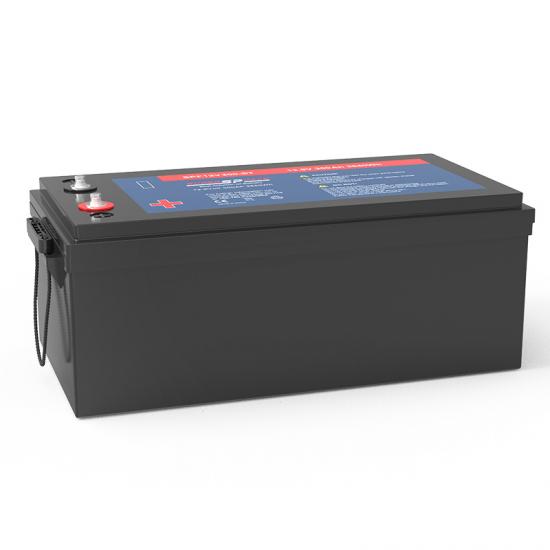

SPF12V300-STLifepo4 12v 300ah Lithium Ion Battery for Marine
Cell technology |
LiFePO4 |
Rated Voltage |
12V |
Rated Capacity |
300Ah |
Inner cell type |
IFR26650 -3.6Ah |
Dimensions |
520*267*228mm |
Weight |
Approx. 37.5Kg |
Terminals |
M8 screws |
LITHIUM ION BATTERY STRUCTURE DESCRIPTION
1. Innner cell : 26650-3.2V3.6Ah
2. 100A discharging BMS
3. Terminal Type M8*0.75*12mm
4. Terminal Torque 80 - 100 in-lbs (9 - 11 N-m)
OUTPUT
Maximum Continuous Discharge Current 100A@20℃ , 200A ,5-10 S
DATA SHEET
No. |
Item |
General Parameter |
Remark |
||
1 |
Rated Capacity |
300Ah |
Standard discharge(0.2C)after standard charge(0.2C) |
||
2 |
Minimal Rated Capacity |
285Ah |
|||
3 |
Nominal Voltage |
12.8V |
|
||
4 |
Life Exception
|
Higher than 60% .of the Initial Capacity of the Cells |
~Charge:CC*0.2Cto14.6V, then CV till current to 0.05C ~Rest: 30min. ~Discharge: 0.2C to 10 V ~Temperature:20±5℃ ~Carry out 1200cycles |
||
5 |
Discharge cut-off voltage |
2.0V/Cell(≥40V) |
|
||
6 |
Charging cut-off voltage |
3.8V/Cell(≤60.8V) |
14.6V (recommended) |
||
7 |
Cell and assembly method |
IFR26650-3.6AH |
4S88P |
||
8 |
Housing material |
ABS |
|
||
9 |
Standard charge |
0.2C constant current(CC) charge to14.6Vthen constant voltage (CV)14.6V charge till charge current decline to ≤0.05C |
Charge time : Approx.7h |
||
10 |
Standard discharge |
Constant current 0.2C Cut-off voltage40V |
|
||
11 |
Maximum Charge Current |
100A@20℃ |
|
||
12 |
Maximum Continuous Discharge Current |
100A@20℃ 200A 5-10S |
|
||
13 |
Operation Temperature Range |
Charge: 0~45℃ |
60±25%R.H. 23 ± 5°C(recommended) |
||
Discharge: -20~60℃(cell surface temperature≤80℃) |
|||||
14 |
Storage Temperature Range |
Less than 1 year : 0~25℃ |
60±25%R.H. at the shipment state |
||
Less than 3 months:-5~35℃ |
|||||
15 |
Weight |
Approx. 37.5Kg |
|
||
16 |
Internal resistance |
≤20mΩ@50%SOC |
|
||
17 |
Dimension |
Length: 526mm |
|
||
Width: 268mm |
|
||||
Height: 225mm |
|
||||
18 |
Terminals |
M8*0.75*12mm |
|
APPLICATION
Golf cart Solar battery storage Lead acid battery replacement
