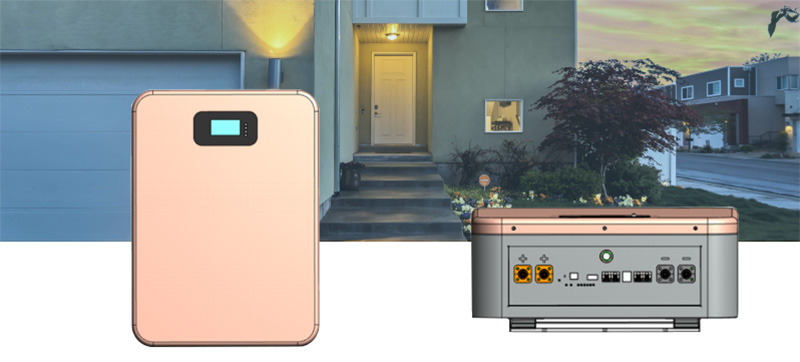

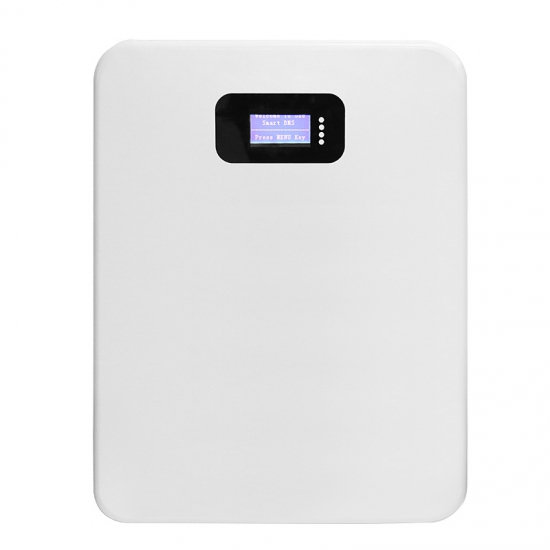

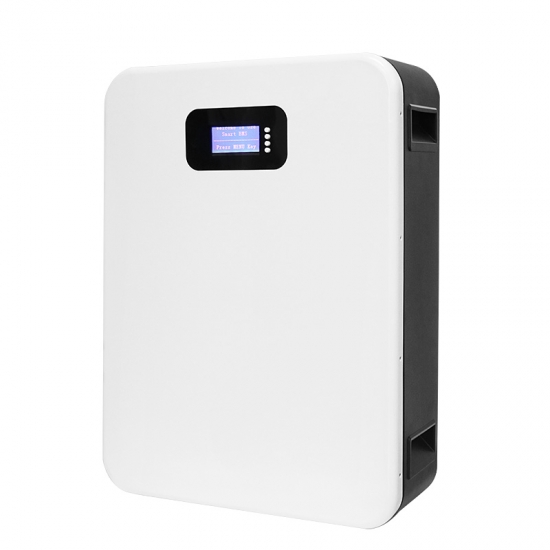

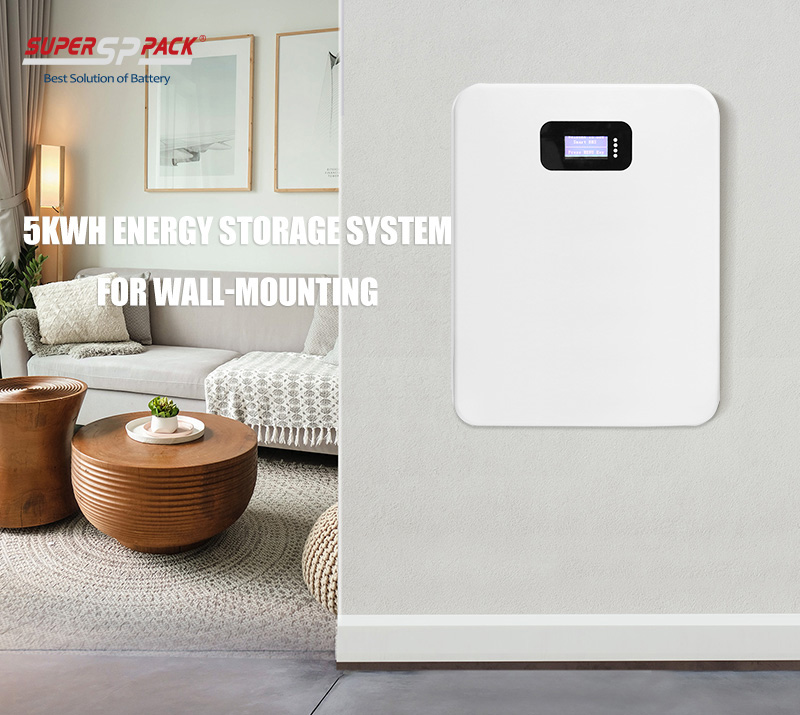

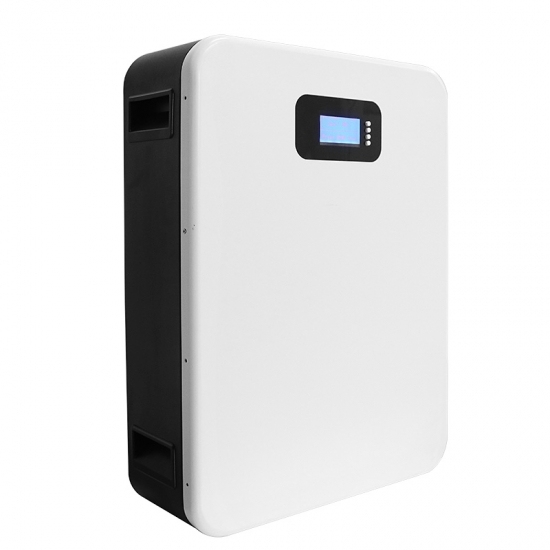

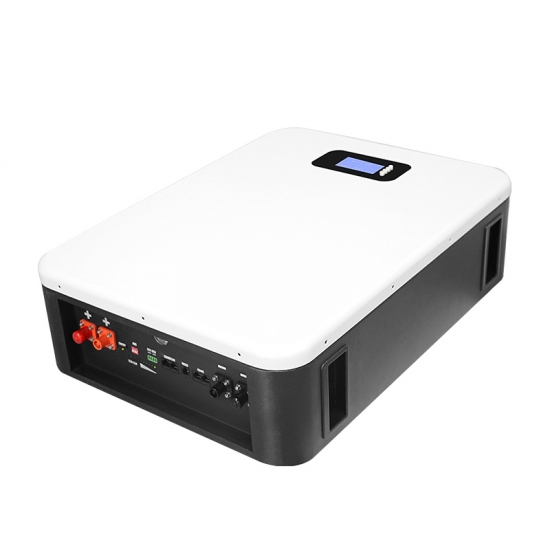

LiFePo4 5Kwh Wall Mounted Energy Storage Lithium Battery
The 51.2V 100Ah wall-mounted lithium battery pack is designed for small home energy storage systems. This ultra-thin battery pack is easy to install and provides a maximum output of 5KW. Its expandable capacity allows you to connect up to 15 units in parallel, offering a scalable solution for home energy needs.
Brand:
SuperpackItem NO.:
SP-ESS-5KWH-B1Product Origin:
ChinaColor:
whiteLead Time:
25-30 Working Days
The 51.2V100Ah wall style lithium battery pack is utra-thin design and easy installation.Multiple parallel configuration, up to 12 units, Advanced BMS control, The product can provide flexible and effective power system solutions for solar lithium batteries.;it would be the best choice for householders. Use your stored power anytime you want it day or night and lower those energy bills
Features
•Lithium iron phosphate battery solution
• High Safety: Low-voltage ESS
• Single module: 51.2V100AH, 5.12KWH, can be independent operating
• Max. Charge/discharge power: 5.12KW
• Rated DC power 5.12KW
• Advanced BMS control
• Multiple parallel configuration, up to 12 units
• Long cycle life: 6000cycles
• Calendar life: 10+ years
• Compact size and space saving: W440*D182*H600mm
• Various countries and regions ready, including US
• Versatile 48V energy storage system: Black out or emergency back-up
• TUV IEC62619/CE-IEC61000/IEC62040
Applications
• Residential energy storage system
• Off-grid energy storage
• Micro-grid applications
• UPS power supply
Specifications
|
Specifications of 5KWH Energy Storage System for Wall-mounting |
|
|
Cell Type |
LiFePO4 (LFP) |
|
Rated Voltage (V) |
51.2V |
|
Rated Capacity (Ah) |
100Ah |
|
Rated Energy (kWh) |
5.12kwh |
|
Usable Battery Capacity (Ah) |
100Ah |
|
Usable Battery Energy(kWh) |
5.12kWh |
|
Battery Depth of Discharge |
100% |
|
Battery Max Charge/Discharge Power(kw) |
5.12 |
|
Battery Pack |
16S1P |
|
Working Voltage Range (V) |
44.8～57.6 |
|
Standard Charge Current (A) |
20A |
|
Max. Continuous Charge Current (A) |
100A |
|
Standard Discharge Current (A) |
20A |
|
Max Continuous Discharge Current(A) |
100A |
|
Rated DC Power(kw) |
5.12kw |
|
Standard Charging Method |
0.5C CC to 57.6V; CV at 57.6V till current is 0.05C |
|
Working Temp. (℃) |
Charging: 0～50; Discharging: -20～55 |
|
Working ROH |
20%～80% |
|
Storage Temp. (℃) |
-5~35 |
|
Self-discharging rate |
≤ 5% (25 ℃, 50% SoC) Per Month |
|
SoC @ end of product line |
40% |
|
Insulation Resistance (MΩ) |
>100 |
|
Voltage Difference in each module (mV) |
≤20 |
|
Inner Resistance of single Cell (mΩ) |
≤ 20 (fresh cell 50% SoC) |
|
Cycle Life |
≥ 6000cycles (DOD 70% at 0.2C) |
|
Calendar Life |
≥ 10 years |
|
Cooling System |
Nature air |
|
IP Rating |
IP20 |
|
Recommended Indoor/Outdoor Usage |
Indoor |
|
Net Weight (kg) |
Approx. 54 |
|
Dimension (mm) |
W440*D182*H600 |

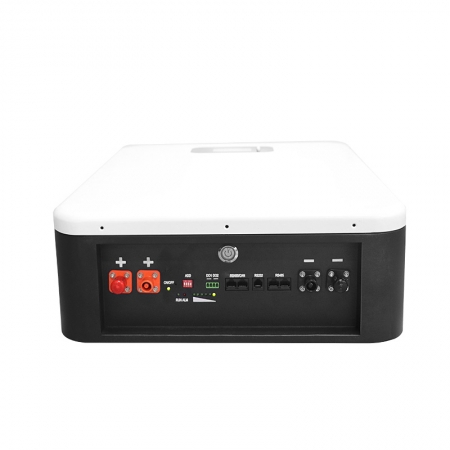

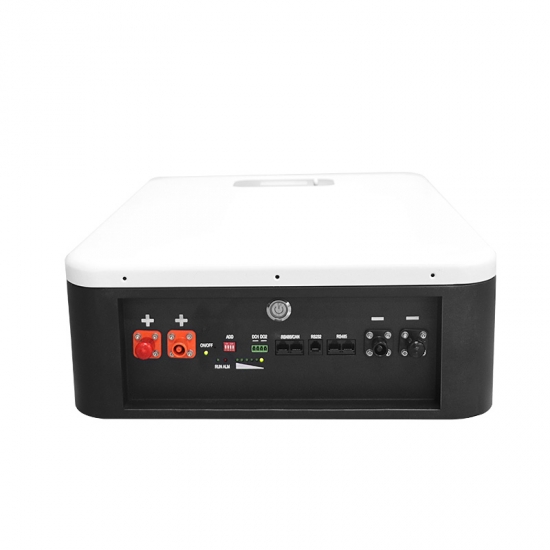

Ports Definition
|
No. |
Definition |
Description |
|
① |
Positive + |
2* Fast plug-in connector, Orange 6, 25mm2 |
|
② |
Negative - |
2* Fast plug-in connector, Black 6, 25mm2 |
|
③ |
RS485/CAN |
Communicate with inverter, (in parallel if inverter is available) |
|
④ |
RS485 |
Communicate with the upward modules (for modules in parallel) |
|
⑤ |
RS485 |
Communicate with the downward modules (for modules in parallel) |
|
⑥ |
RUN |
System running status |
|
⑦ |
 |
Power on/off switch |
|
⑧ |
LCD Display and setting button |
Display battery information and working mode setting |
|
⑨ |
LED indicators |
SoC indicator, operation status indicators, system alarm |
|
⑩ |
Dry Contact |
|
|
⑪ |
ADD switch |
BMS assign module’s ID automatically |
Installation

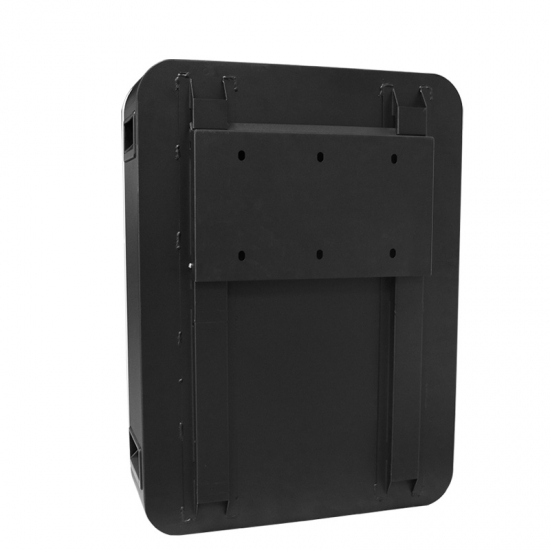

Wall Mounting Space
Inverter Matching List
|
Compatibility List of 5KWH Energy Storage System for Wall-mounting |
|||||
|
www.super-pack.com.cn |
|||||
|
Inverter |
Battery |
Application |
Installation |
||
|
Brand |
Type |
SPF48V100-SM-3U |
Communication |
||
|
Goodwe |
GW-BP |
OK |
CAN |
On/Off grid |
Powerwall / Rackmount |
|
SBP GW-ES |
OK |
CAN |
On/Off grid |
Powerwall / Rackmount |
|
|
EM |
OK |
CAN |
On/Off grid |
Powerwall / Rackmount |
|
|
Deye(Sunsynk) |
SUN-SG01LP1 series |
OK |
CAN/RS485 |
On/Off grid |
Powerwall / Rackmount |
|
SUN-SG03LP1 series |
OK |
CAN/RS485 |
On/Off grid |
Powerwall / Rackmount |
|
|
Growatt |
SPH3000-6000 |
OK |
CAN |
On/Off grid |
Powerwall / Rackmount |
|
SPH2000-5000 |
OK |
RS485 (9600) |
On/Off grid |
Powerwall / Rackmount |
|
|
Dowell |
iPower |
OK |
CAN |
|
|
|
LuxPower |
LXP Hybrid 6K/8K |
OK |
CAN |
` |
|
|
Victron Energy |
Multiplus/Quattro 48V (via Venus-device) |
OK |
CAN |
On/Off grid |
Powerwall / Rackmount |
|
SolaX Power |
SK-SU, SK-TL, SK-BMU |
OK |
CAN |
|
|
|
Imeon Energy |
IMEON 3.6 /9.12 |
OK |
CAN |
|
|
|
Sofar |
HYD series |
OK |
CAN/RS485 (115200) |
|
Debugging in progress |
|
Solis |
RHI series |
OK |
CAN |
On/Off grid |
Powerwall / Rackmount |
|
Steca |
Solarix PLI 5000-48 |
OK |
CAN |
|
|
|
Sorotec` |
REVOⅡ5.5KW |
OK |
CAN |
|
|
|
Voltronic Power |
Infinisolar series 48V |
OK |
RS485 (9600) |
On/Off grid |
Powerwall / Rackmount |
|
Axpert series 48V |
OK |
RS485 (9600) |
On/Off grid |
Powerwall / Rackmount |
|
|
Must Power |
Solar Inverter PV18-5048 VHM |
OK |
CAN |
|
|
|
Schneide |
Conext XW pro series |
OK |
CAN |
|
Debugging in progress |
|
Phocos |
Any grid PSW-H-5KW-230V/48V |
OK |
RS485 (9600) |
|
Debugging in progress |
|
SMA |
Sunny island 6.0H |
OK |
N/A |
|
Powerwall |
|
STUDER |
Xtender 48V series |
OK |
CAN |
On/Off grid |
Powerwall / Rackmount |
|
INVT |
BD series |
OK |
CAN |
On/Off grid |
Powerwall / Rackmount |
|
Sermatec |
SMT-5K-TL-LV |
OK |
CAN |
On/Off grid |
Powerwall / Rackmount |
|
Sungrow |
SH5K |
OK |
CAN |
|
Debugging in progress |
|
MEGAREVO |
BK-BP series |
OK |
CAN |
|
Powerwall |
|
* When compatible with Victron Multi/Quattro in off-grid application via Venus-device, it is required to have a Victron MPPT or other compatible PV inverter with Victron to avoid the system getting shut down. |
|||||
