With a nominal voltage of 51.2 V and a capacity of 200 Ah, this battery provides 10.24 kWh of energy. It features 99% efficiency, a self-discharge rate under 3% per month, and lasts up to 6,000 cycles at 80% depth of discharge.
Built with a sturdy steel case and IP65 protection, it’s durable for any environment. Safety features include protections against over-current, under-voltage, and high temperatures.
Upgrade to the Superpack Deep Cycle Lithium Battery for reliable, long-lasting power!
Brand:
SuperpackItem NO.:
SPF48V200Product Origin:
ChinaColor:
BlackLead Time:
25-30 Working Days

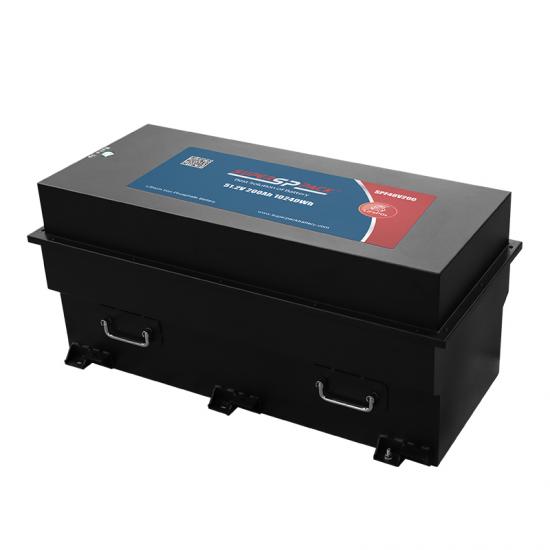

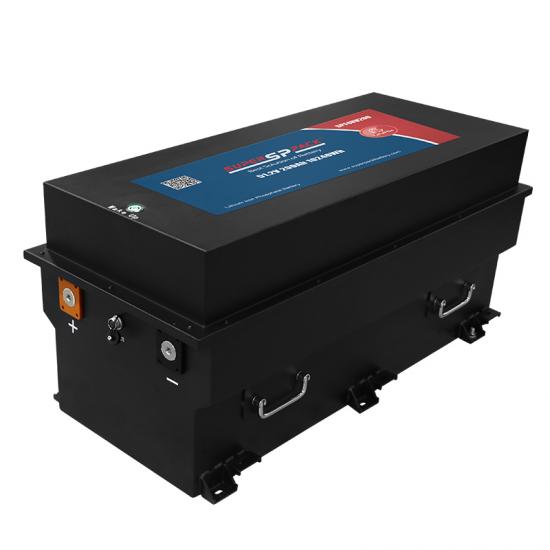

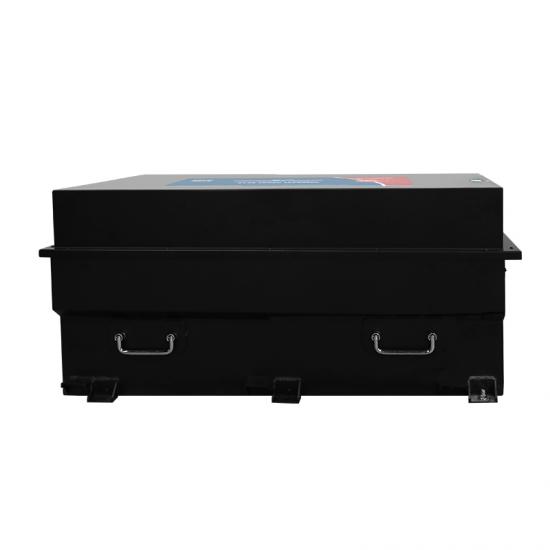

The Superpack 48V 200Ah LiFePO4 deep cycle battery is a high-quality energy storage solution for various applications, including solar, off-grid, and RV systems. The SPF48V200, with its lithium iron phosphate (LiFePO4) construction, delivers reliable performance and durability. With a lifespan of up to 6,000 cycles at 80% depth of discharge, this rechargeable battery provides a dependable and cost-effective solution for long-term use.
Specifications
|
Item |
General Parameter |
| Nominal Voltage | 51.2 V |
| Nominal Capacity | 200 Ah |
| Capacity @ 25 A | 480 min |
| Energy | 10.24 kWh |
| Self Discharge | 3% per Month |
| Resistance | 50 mΩ @ 50% SOC |
| Efficiency | 99% |

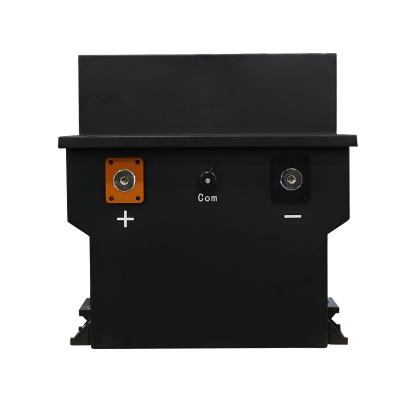

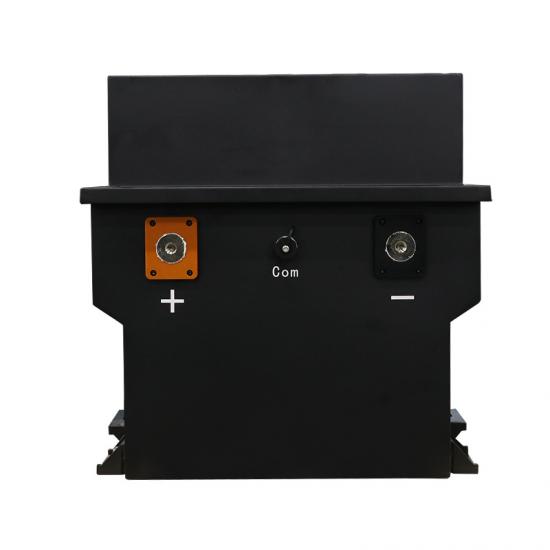

| Terminal Type | M10 x 1.5 |
| Terminal Torque | 110 - 125 in-lbs (12.2 - 14 N-m) |
| Case Material | Steel Case |
| Enclosure Protection | IP65 |
| Maximum Continuous Discharge Current | 200 A |
| Peak Discharge Current | 250 A (4 s ±1 s) |
| Discharge Over-Current Protection | 390 A (5 s) |
| Recommended Low Voltage Disconnect | 44.0 V |
| Discharge Under-Voltage Protection | 40.0 V (2.5 ±0.1 vpc) |
| Reconnect Voltage | 40.5 V (2.53 ±0.1 vpc) |
| Discharge Temperature | -4 to 131 ºF (-20 to 55 ºC) |
| Charge Temperature* | -4 to 131 ºF (-20 to 55 ºC) |
| Recommended Storage Temperature | 23 to 95 ºF (-5 to 35 ºC) |
| BMS High Temperature Cut-Off | 149 ºF (65 ºC) |
| Reconnect Temperature | 145 ºF (63 ºC) |
| Recommended Charge Current | 10 A - 100 A |
| Maximum Continuous Charge Current | 200 A |
| Charge Current 32ºF to 14ºF (0 to -10 ºC) | ≤0.1 C (20 A) |
| Charge Current -4ºF to 14ºF (-20 to -10 ºC) | ≤0.05 C (10 A) |
| Recommended Charge Voltage | 56.0 V - 58.4 V |
| BMS Charge Voltage Cut-Off | 60.8 V (3.8 ±0.025 vpc) |
| Dimensions (L x W x H) | 34.3 x 14.2 x 15.6” (867 x 358 x 393 mm) |
| Weight | 302 lbs (137 kg) |

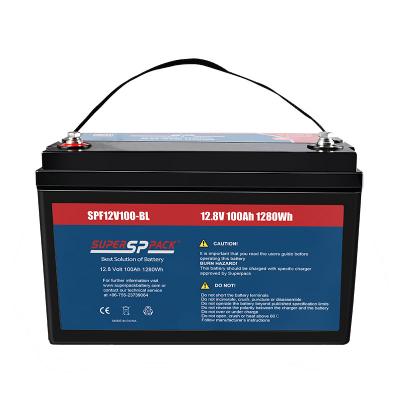

12V100Ah deep cycle marine battery for RV,Electric Vehicles,Floor Machines,Marine,Recreational Vehicles,Solar
Learn More

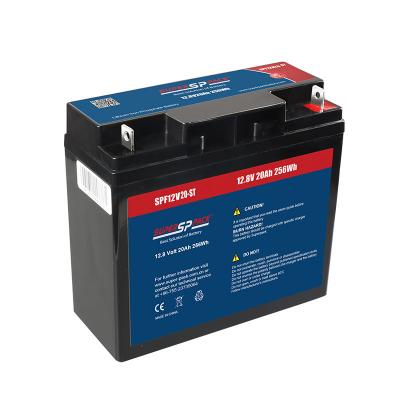

12V20Ah Marine LiFePO4 batteries for electronics, starting outboards and powering trolling motors. These batteries are engineered to withstand the harsh marine environment, offering durability, deep-cycle capabilities, and long-lasting performance for extended periods of fishing or boating activities.
