Brand:
SuperpackItem NO.:
SPF48V36‑SMProduct Origin:
ChinaColor:
BlackLead Time:
25-30 Working DaysProduct Details

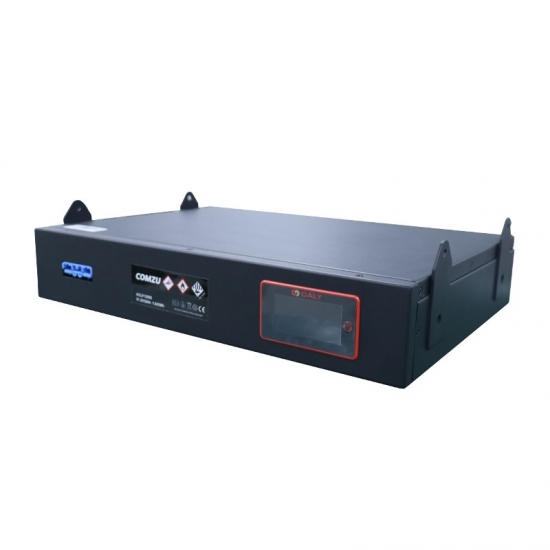

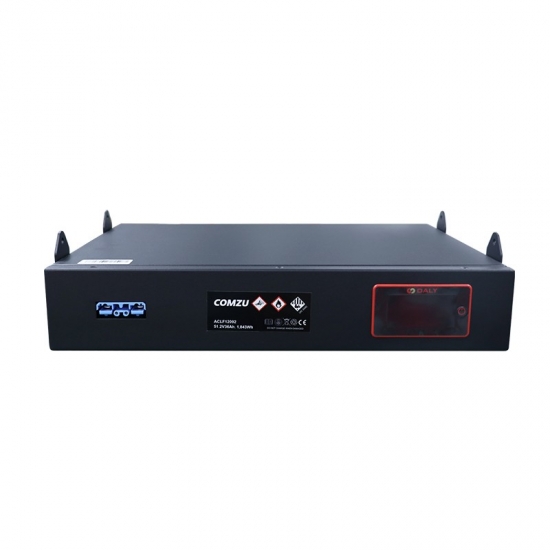

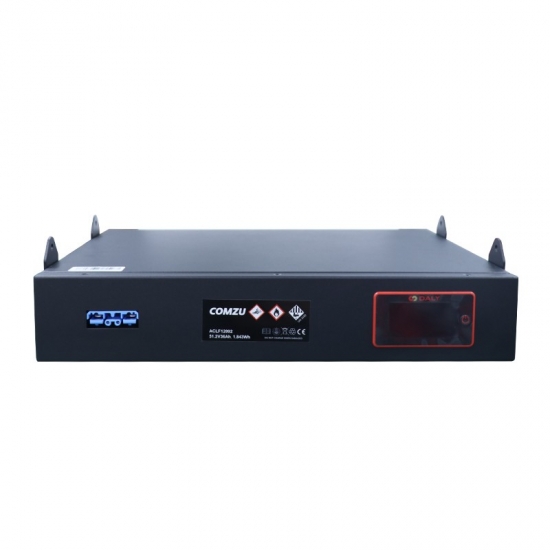

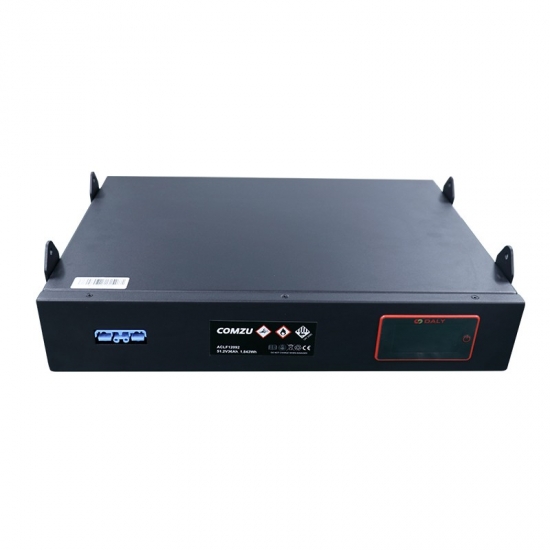

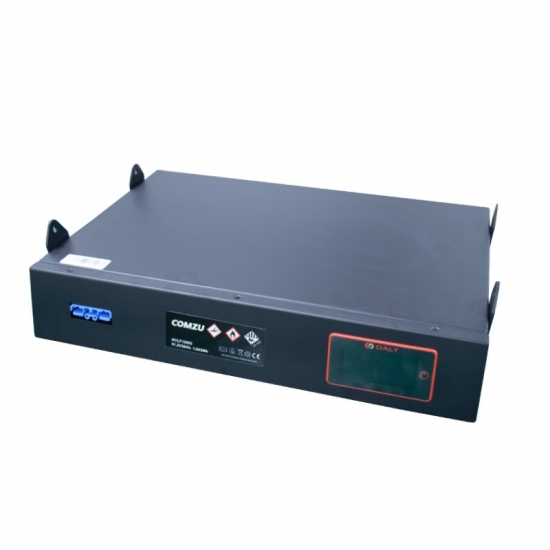

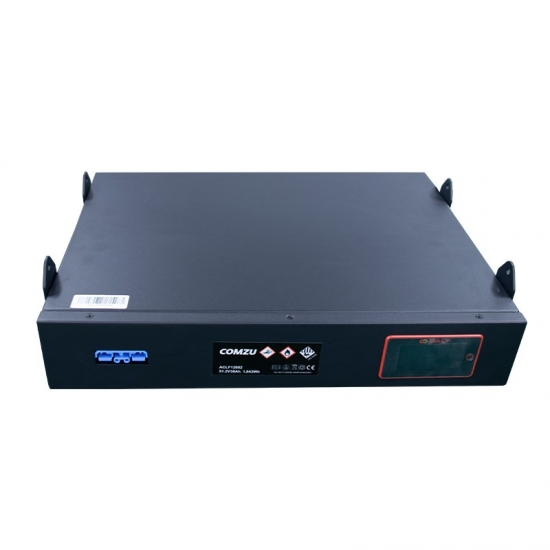

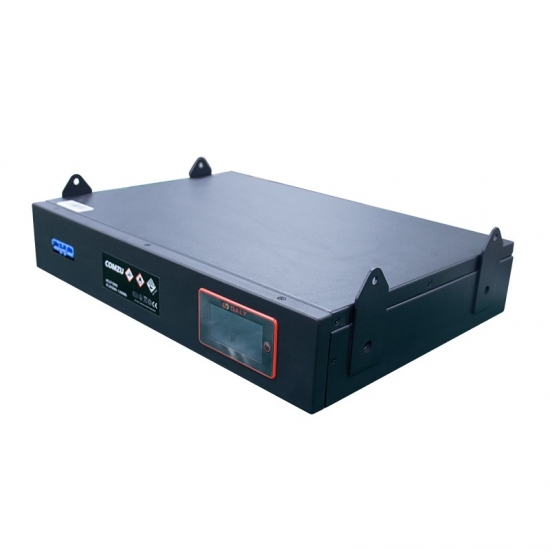

51.2V 36Ah Rack‑Mounted Energy Storage Battery
Introducing our innovative SPF51V36‑SM energy storage battery. Our 1.84kWh battery module adopts safe
and long‑lasting Lithium Iron Phosphate technology, delivering outstanding safety, reliability, and stable
performance. Built‑in smart BMS with LCD display and RS485 communication function. It is specially
designed for commercial & industrial energy storage systems to support off‑grid solar application, provide
reliable backup power and improve energy independence. Designed for efficient energy storage utilization,
this module fits standard 19‑inch server rack cabinet for rack installation, offering stable modular solution
for your industrial energy storage demands.
Application
● Solar / wind off‑grid energy storage system
● UPS & data center backup power
● Telecommunication base station
● Industrial emergency power supply
● Medical equipment power backup
● Commercial lighting system
FAQ
Q:What is the total energy of this rack‑mount battery?
A:It is 1.84kWh, 51.2V 36Ah LiFePO4 battery pack.
Q:Can multiple batteries be connected in parallel?
A:Yes, it supports parallel connection for capacity expansion. Please operate under professional guidance.
Q:What cabinet size does it fit?
A:Designed for standard 19‑inch server rack cabinet.
Q:What are the main application scenarios?
A:Widely used for data center UPS backup, telecom base station, solar off‑grid storage and industrial emergency power supply.
Q:What is the charging voltage?
A:Recommended charging voltage is 58.4V. Please use dedicated LiFePO4 charger.
Q:Can it replace lead‑acid battery directly?
A:Yes. It is an ideal replacement for traditional lead‑acid battery with longer cycle life and lighter weight.
Q:Does it support communication function?
A:Built‑in smart BMS with LCD display, supports RS485 communication for battery status monitoring.
Parameter
| Item | General Parameter | Remark |
| Rated Capacity | 36.0Ah |
Standard discharge 0.2C |
| Minimum Capacity | 34.2Ah | |
| Nominal Voltage | 51.2V | |
| Life Expectation |
Higher than 80% of the Initial Capacity of the battery |
1)Charge:CC@0.2C to 58.4V, then CV till current to 0.05C |
|
Discharge cut-off voltage |
36.8V~43.2V |
Recommended 44.8V(2.8V/Cell) |
| Charge limiting voltage | 57.6V~58.4V | |
|
Cell and assembly method |
IFR26700-3.2V4.0Ah | 16S9P |
| Housing material | SPCC | Spray black |
| Standard charge |
0.2C constant current (CC) charge to 58.4V then constant voltage (CV) 58.4V charge till charge current decline to ≤0.05C |
Charge time : Approx 7h |
| Standard discharge |
Constant current 0.2C,Cut-off voltage 40.0V |
|
|
Maximum Charge Current |
36A@25±3℃ | ≤18A(recommend) |
|
Maximum Continuous Discharge Current |
40A@25±3℃ |
|
|
Operation Temperature Range |
Charge : 0~45℃ |
60±25% R.H. |
|
Discharge : -20~60℃ (cell surface temperature≤80℃) |
||
|
Storage Temperature Range |
Less than 6 months : 0~25℃(SOC≥50%) |
60±25% R.H. |
|
Less than 3 months:-20~35℃(SOC≥50%) |
||
| Approx. Weight | ≈18.6kg±0.5kg | |
| Internal resistance | 38mΩ≤ACR≤50mΩ | 50% 1KHz,AC |
| Dimension | L*W*H=(440*311*80mm)±2mm | |
| Terminals | GPS75XFP-G3014G4 | Blue |
| Display device | DL-3.0" | |
| CAN communication | CANOPEN2.0 | |
| Communication | IP54 |
