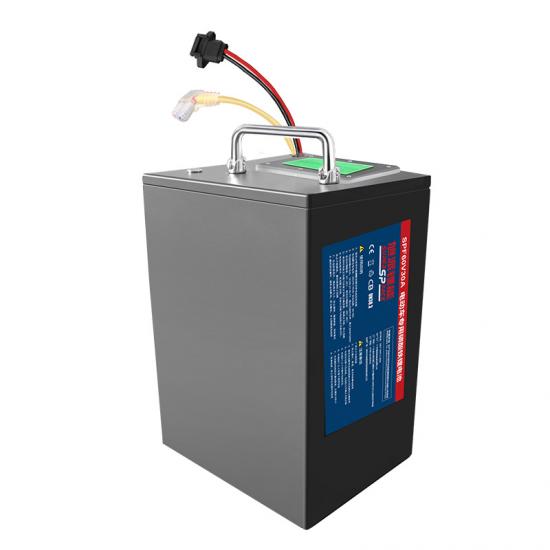

SPF60V30Ah LiFePO4 Battery swap station Lithium Battery Pack

It can fully charge electric tricycles, electric bicycles, and electric motorcycles in a short time
  • Brand:

    Superpack
Product Detail

SPF60V30Ah  LiFePO4 Battery swap station  Lithium Battery Pack


Item

General Parameter

Remark
Battery  Model SPF60V30AH
Nominal Voltage 64V
Rated Capacity 30.0Ah
Internal  Resistance (mΩ) ≤90mΩ 1KHz,AC
Size L*W*H 331*193*153mm(13.03*7.59*6.02")

Does not include handle

Approx. Weight 16.8Kg
Battery gauge LCD
Type lifepo4 battery cell
Housing material Iron
Discharge Cutoff Voltage 2.2V/Cell(≥44V)
Charge Cutoff Voltage 3.65V/Cell(≤73V)
Maximum Charge Current 14A@20℃
Maximum Continuous Discharge Current 28A@20℃

Recommended:14A

Constant current 0.5C
Cut-off voltage 50V
Charge temperature 0~45℃
Discharge temperature -20~60℃(cell surface temperature≤80℃)
Storage Temperature Range

Less than 1 year : 0~25℃(SOC≥50%)

Less than 3 months:-5~35℃(SOC≥50%)

60±25%R.H.
at the shipment state

Life Expectation Higher than 80% .of the Initial Capacity of the battery 1)Charge:CC@0.5C to 73V, then CV till current to 0.05C
2)Rest: 30min.
3)Discharge: 0.5C to 50V Temperature:20±5℃ Carry out 1200cycles
Standard charge

0.5C constant current (CC) charge to 73Vthen constant voltage (CV) 73V charge till charge current decline to ≤0.05C

Charge time : Approx  3h


Specification of PCM

Item

Parameter

Voltage

Charging voltage

DC:3.65V/cell

Balancing voltage

3.5±0.05V

Current

Balancing current

25-35mA

Self-consume current

≤100μA

Max. continuous charging current

15A

Max. continuous discharging current

30A

Over-charging protection

Over-charging voltage

3.75±0.05V/cell

Over-Charge delay time

500~1500mS

Over-charging release voltage

3.55±0.05V/cell

Over-discharging protection

Over-discharging voltage

2.2±0.1V/cell

Over-discharging delay time

500~1500mS

Over-discharging release voltage

2.7±0.01V/cell

Over-current protection

Over-current(Discharge)

100±20A

Over-current delay time

500~1500ms

Release condition

Remove load

Short circuit protection

Function condition

External short circuit

Short circuit delay time

200~300us

Release condition

Remove load

Impedance

Protection circuitry (MOSFET)

≤20mΩ

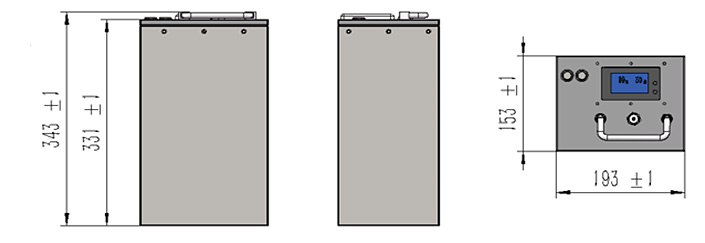

64V28AH Lithium battery Size

The lithium battery specially designed for the express delivery industry, saves time and effort without worrying about the lack of electricity for electric tricycles

 No matter where your electric tricycles, electric bicycles, and electric motorcycles go, the Superpack SPF64V28Ah lifepo4 lithium battery can fully charge electric tricycles, electric bicycles, and electric motorcycles in a short time. Explore our Battery swap station products. Learn more about lithium battery solutions.
