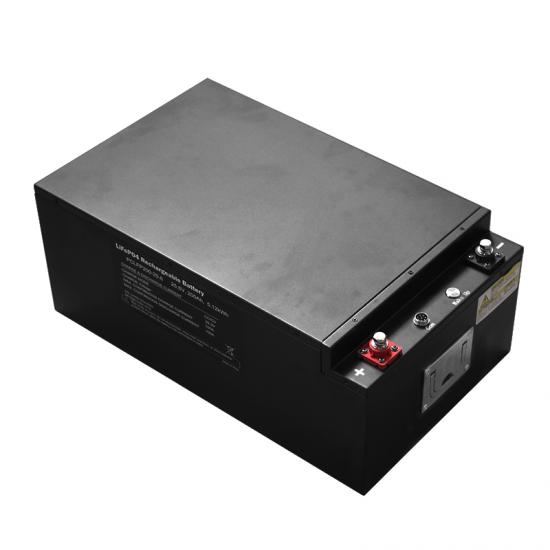

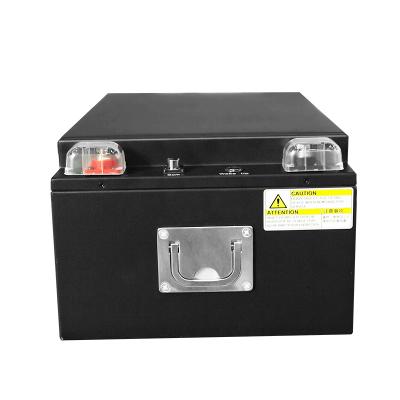

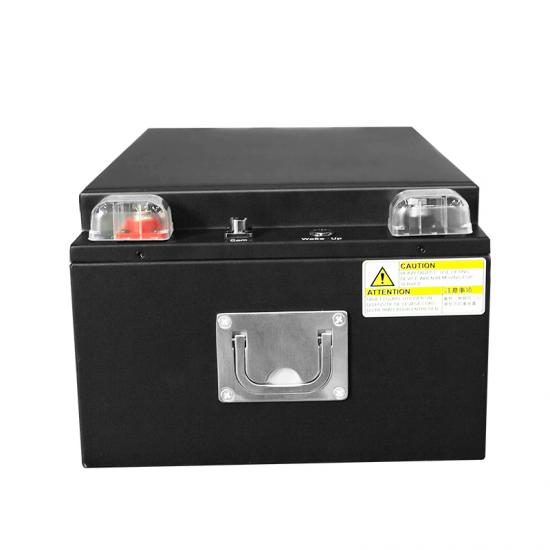

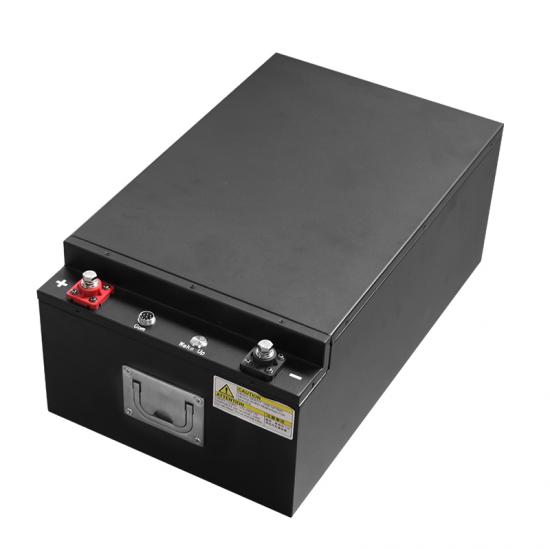

Superpack 25.6V 200Ah Lithium Iron Phosphate Battery

25.6V 200Ah Lithium Battery provides efficient, stable and reliable power support, which is especially suitable for Floor Scrubbers, Three Wheel, electric equipment and many other applications. With the advanced Battery Management System (BMS), this battery can provide an extra-long service life to meet your various high-performance needs. Whether in harsh weather or under high load conditions, Superpack batteries ensure consistent and stable power output.

Brand:
Superpack
Product Origin:
China
Color:
Black
Lead Time:
25-30 Working Days

Product categories

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Communications :RS485 and RS232 communication output

Terminal: M8*1.25mm, tightening torque 9.72±10% N.M, ensuring stable and reliable battery connection.

Scope of Application:

● Floor Scrubbers

● Golf carts

● Power tools

● Electric equipment

● Energy storage systems

● Electric transportation workers

Product Specification

Item	General Parameter	Remark
Rated Capacity	200Ah	Standard discharge 0.2C after standard charge 0.2C
Minimum Capacity	190Ah	Standard discharge 0.2C after standard charge 0.2C
Nominal Voltage	25.6V
Life Expectation	Higher than 80% of the Initial Capacity of the battery	1）Charge:CC@0.2C to 29.2V, then CV till current to 0.05C 2）Rest: 30min. 3）Discharge: 0.2C to 20V Temperature:20±5℃ Carry out 2000cycles
Discharge cut-off voltage	2.5V/Cell(20V)
Charge cut-off voltage	3.65V/Cell(29.2V)
Cell and assembly method	IFP48173125-3.2V100Ah	8S2P
Standard charge	0.2C constant current (CC) charge to 29.2Vthen constant voltage (CV) 29.2V charge till charge current decline to ≤0.05C，0.2C	Charge time : Approx 7h
Standard discharge	Constant current 0.2C，Cut-off voltage 20V
Maximum Charge Current	100A@20℃
Maximum Continuous Discharge Current	100A@20℃
Operation Temperature	Charge: 0～45℃	60±25%R.H. 23 ± 5°C recommended
Maximum Continuous Discharge Current	Discharge:0～60℃（cell surface temperature≤80℃）	60±25%R.H. 23 ± 5°C recommended
Storage Temperature Range	Less than 1 year : 0～25℃(SOC≥50%)	60±25%R.H. at the shipment state
Storage Temperature Range	Less than 3 months:-5～35℃(SOC≥50%)	60±25%R.H. at the shipment state
Approx. Weight	46.5Kg	60±25%R.H. at the shipment stat
Internal resistance	≤20mΩ	1KHz，AC
Dimension	LWH=（499300.4199.7mm）±2mm
Terminals	M8*1.25mm 9.72±10%N.M
Communication	M8*1.25mm 9.72±10%N.MPIN1:CAN-H PIN2:CAN-L PIN3/PIN4:Switch of discharging PIN5: RS485-A PIN6: RS485-B

Products

Superpack 25.6V 200Ah Lithium Iron Phosphate Battery

Key Features:

Efficient Charging and Discharging

Standard charging: 0.2C constant current charging to 29.2V, followed by constant voltage charging until the current drops to ≤0.05C, ensuring a safe and efficient charging process.Standard discharge: 0.2C constant current discharge, cut-off voltage 20V, supporting long time stable discharge.

Maximum Charging and Discharging Current

Maximum charging current: 100A @20℃, to meet the needs of rapid charging.

Maximum Continuous Discharge Current: 100A @20℃, providing stable and high power output.

Life expectancy: After 2000 charge/discharge cycles, the capacity remains above 80% of the initial capacity, which ensures the battery to work stably for a long time.

Low internal resistance: AC internal resistance ≤20mΩ, reducing energy loss

Communications :RS485 and RS232 communication output
