Suitable for RVs ,Solar, Camping，Bass Boat，Trolling Motor，Home Energy Storage, Off-grid
EV-Grade LiFePO4 Cells
100% BMS Protection + <3% Self-Discharge
1024Wh Energy / 1024W Output

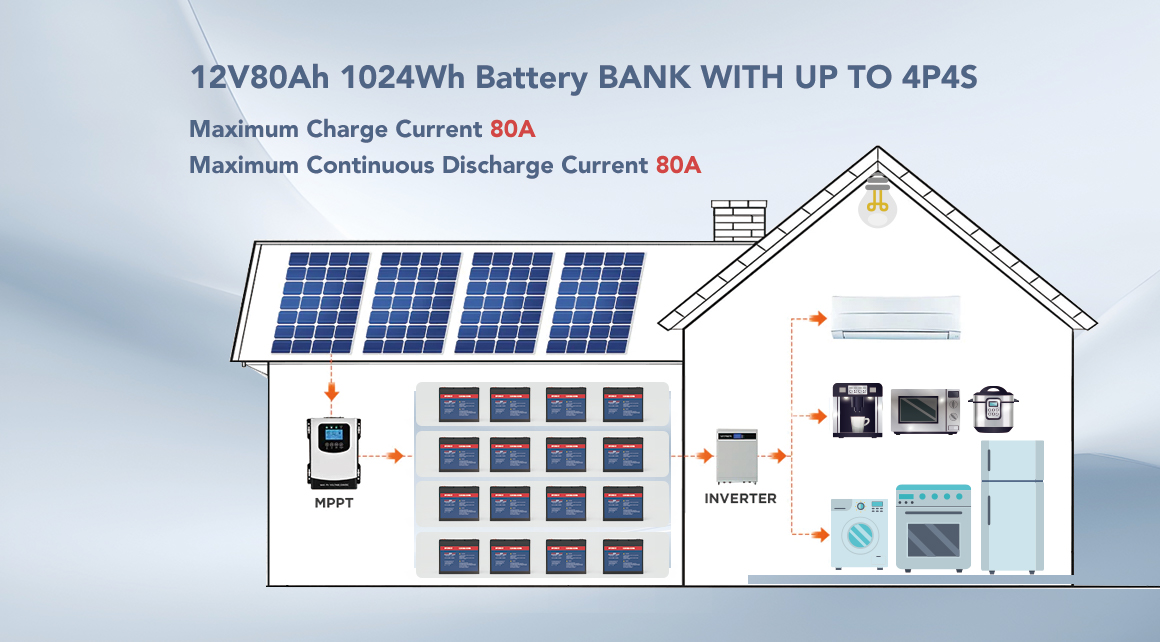

Max 4S4P
IP65 Waterproof
Brand:
SuperpackItem NO.:
SPF12V80-STProduct Origin:
ChinaColor:
BlackLead Time:
25-30 Working DaysGo Where Your Heart Leads — Unplugged, Unstoppable. With 1,024Wh energy and 1,024W power, run your AC through desert nights and blend mountain sunrise smoothies. This is more than a battery — it’s a decade-long travel buddy that outlasts dirt roads and dusty memories.
Advantages:
* There are Two main types of hot products have been widely used in varieties of application field.
-- ST: Stands for standard type
-- BL: Stands for with Bluetooth communication type
* Adopt high quality LiFePO4 cylindrical cells solutions
* Built-in BMS, It has a completed protection solution with over charge, over discharge, multi level of over current (charge/discharge) and short circuit, over temperature (charge/discharge), low temperature (charge/discharge), cells balance, and the protection threshold can be adjusted by the customization.
* Long life, up to 10X longer than lead acid equivalent
* Deep cycle discharge, up to 98% discharge efficiency at 1C, 120% duration time more than lead acid equivalent.
* Fast charge within 3 hours * Wide operating temperature range from -25℃ to 60℃ (Can be adjusted)
* Constant power available throughout discharge, as well as constant voltage, mean voltage would not decline like lead acid
* Low self-discharge, less than 3% per month * High safety
* Green new energy, ECO friendly
Application
* Lead-Acid Batteries Replacement
* Recreational Vehicle
* Golf Carts, Golf Trolleys, Golf Buggy
* E-Mover * Industrial Vacuum, Floor Scrubber
* AGV, Forklift and Low Speed Vehicle
* Robot
* E-scooter
* UPS
* Security
* Medical Equipment
* Emergency and Exit Light
* Solar Light and Landscape
* Marine, Fishing Boat
* Solar Pump
* Solar Tracker
* Remote Monitor Systems
* Telecommunication Systems
* Solar Energy Storage Systems - On/off grid systems
*Outdoor Entertainment power supply
Precautions
* Constant current (CC), then constant voltage (CV) charging is recommended
* Max. Charge current do not be higher than the parameter which has been specified in specification.
* Storage -- State of charge 30~50% -- Temperature -5 to 35℃,less than 3monthst room temperature -- Relative Humidity 45~85% -- We recommend to recharge batteries 1time every 3 months * Operating temperature range -- Charge: 0~45℃ -- Discharge: -20~60℃
* For the battery packs in series or parallels, the battery packs must be in the same status, such as the same SoC, voltage, current, environment temperature etc. We recommend to single charge to maintenance every 3 months to make sure they are in balance. Beside, the max. charge/discharge current do not be higher than the parameter which has been specified in specification
* Recommended float charge voltage is less than 3.45
*N (3.45V/cell) at 25℃
Parametric
|
Nominal Voltage |
12.8V |
|
Nominal Capacity |
80Ah |
|
Energy |
1024Wh |
|
Dimensions |
L307 x W168 x H221mm |
|
Weight |
10.4Kg |
|
Internal Resistance |
≤50mohm |
|
Maximum Charge Current |
80A |
|
Charge Cut-off Voltage |
15.2V |
|
Maximum Continuous Discharge Current |
80A |
|
Housing Material |
ABS |
