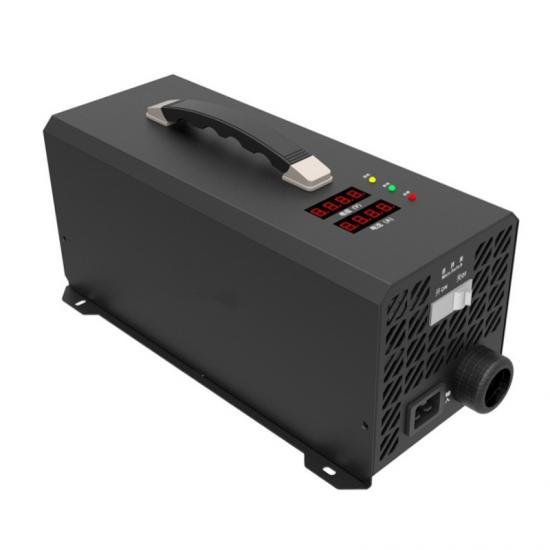

24V 100A EU Plug Industrial Lithium Battery Charger with CAN Communication
This high-efficiency intelligent charger delivers 3KW output (24V DC 100A) for industrial lithium battery systems. Featuring a compact design and advanced CAN bus communication, it enables seamless integration with battery management systems (BMS) for real-time monitoring.
Item NO.:
24V100AProduct Origin:
ChinaColor:
BlackProduct weight:
13kgLead Time:
25-30 Working DaysKey Specifications:
Input: 220V AC single-phase power supply (L, N, PE) @16A
Protections: Comprehensive safeguards against input/output over/under-voltage, over-current, short-circuit, over-temperature, and fan failure
Cooling System: Temperature-controlled fan cooling with fault detection
Certifications: Fully compliant with CE and RoHS directives (EN/IEC 62368-1, EN 60335-1)
Industrial-Grade Features:
✓ Grounded charging interface for enhanced safety
✓ Space-optimized enclosure for workshop installations
✓ Configurable charging profiles via CAN 2.0B protocol
✓ Schuko-type EU plug (CEE 7/7) with reinforced contacts
Product Parameter
| Item | Parameters | Remark |
| AC Input | ||
| Rated input voltage | 220Vac | L+N+PE |
| Input voltage range | 175-264Vac | / |
| Input connector | 16A European standard plug | / |
| Input cable length | 3000±100mm | / |
| Frequency range | 47-63 Hz | / |
| Input current | ≤15A Max | 220Vac |
| Rated input power | 3300W±10% | Rated input and output |
| Efficiency | ≥93% | Rated input and output |
| Power factor | ≥0.99 | Rated input and output |
| DC Output | ||
| Rated output voltage | 24V | / |
| Output voltage range | 18-30V | Communication adjustment |
| Output voltage range | 100A | / |
| output current | 3000W | Max output power |
| Load adjustment rat | ±5% | 10% to 90% load |
| Current precision | ±2% | / |
| Voltage precision | ±5% | / |
| Ripple voltage | ≤±1%Vo(p-p) | 20MHz |
| MTBF | 50000H | 25℃ |
| Output cable、connector | ||
| Output connector | REMA160A female | DIN |
| Output cable length | 3000±100 mm | / |
| Output cable Spec | 25 mm² | / |
| Communication | ||
| communication method | Communicate with battery | |
| Communication agreement | Communicate agreement with BMS battery | |
| Charger | ||
| Size | Net weight |
|
| Weight | 13±2kg | Complete weight（with package） |

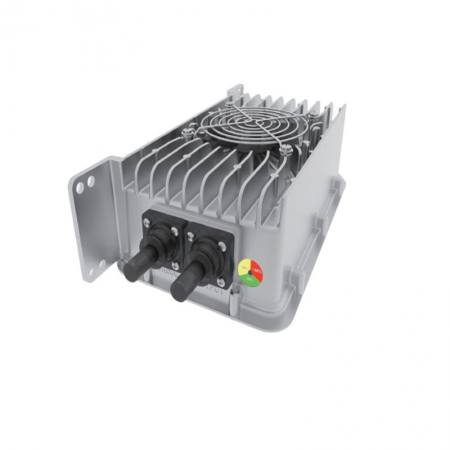

This series chargers are suitable for flooded lead acid batteries, lithium batteries，used to cycle charge or floating charge battery pack in electric cars, sightseeing vehicles, patrol vehicles, fork lifts, communication, electric power, ships, etc. 1350W Series On-board Seal Charger Data Sheet Download
Learn More

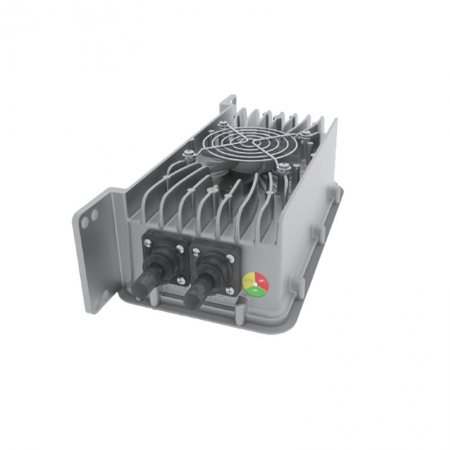

1500W Series On-board Seal Charger 1500W Series On-board Seal Charger Data Sheet Download
Learn More

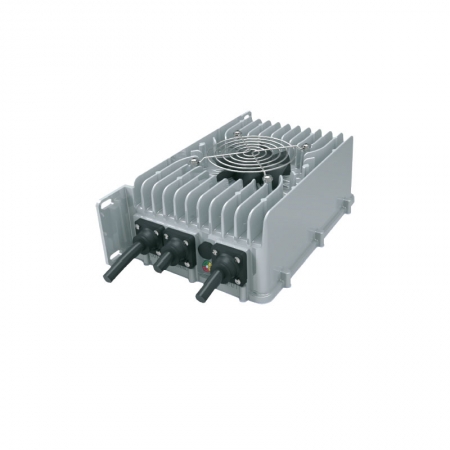

2000W Series On-board Seal Charger 2000W Series On-board Seal Charger Data Sheet Download
Learn More

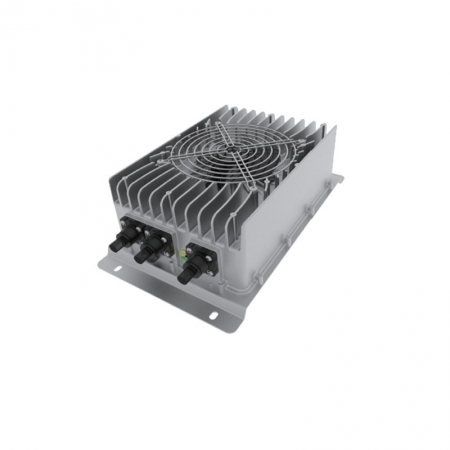

3300W Series On-board Seal Charger 3300W Series On-board Seal Charger Data Sheet Download
Learn More
Effectively cleans carpets and hard floors, making your home smarter
Learn More

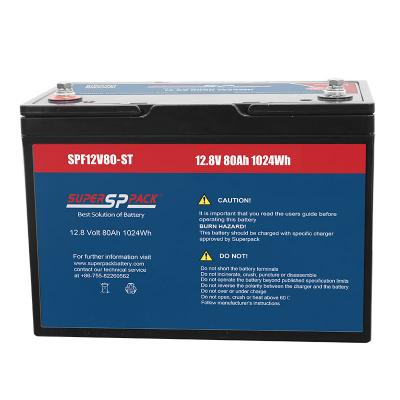

Customizable Systems: Configurable communication protocols and intelligent BMS for safety and performance. High Discharge Rate: Handles instant peak currents, ideal for power-demanding applications.Modular Design: Scalable parallel expansion for flexible voltage and capacity configurations.Real-Time Monitoring: App support for live data tracking, including charge, voltage, and system health. Compact & Lightweight: Smaller, lighter, and easy to handle without compromising power. Wide Temperature Range: Reliable performance in diverse and extreme environmental conditions.
