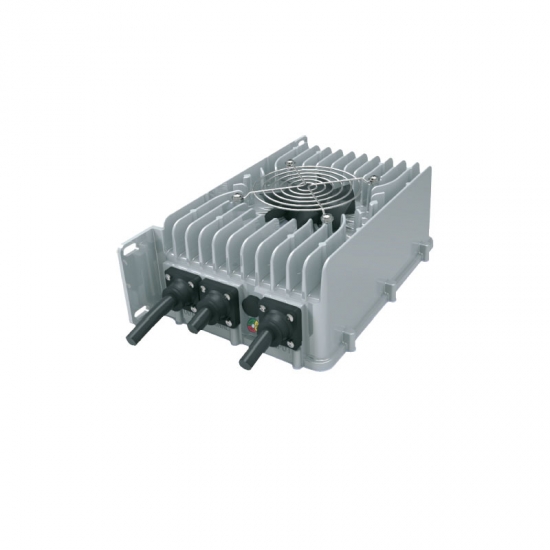

2000W Series On-board Seal Charger
1、Burnout Protection：Temperature of charger exceeds the limitation, the charger will low down the power load.
Temperature of environment exceeds 65 ℃, the charger will stop charging and switch itself to standby mode until4、Short Circuit Protection:The circuit inside the charger shuts down with batteries when output is short circuit.
The charger will start charging only after troubleshooting and restart the charger.
5、Automatic shutdown when fully charging:The charger automatically turns off after the battery is fully charged according to the charger's judgment .
Technology Parameters
AC Input Voltage Range
90-264VAC；45-65Hz
AC Input Max Current
13.5A @100VAC； 10.5A @220VAC
Power Factor
≥0.99
Efficiency
≥94.0%
Noise
≤45dB
Protection level
IP67
Net Weight
4.4kg
Operating Temperature
-30℃-65℃
Storage Temperature
-40℃-95℃
This series chargers are suitable for flooded lead acid batteries, lithium batteries，used to cycle charge or floating charge battery pack in electric cars, sightseeing vehicles, patrol vehicles, fork lifts, communication, electric power, ships, etc. 1350W Series On-board Seal Charger Data Sheet Download
