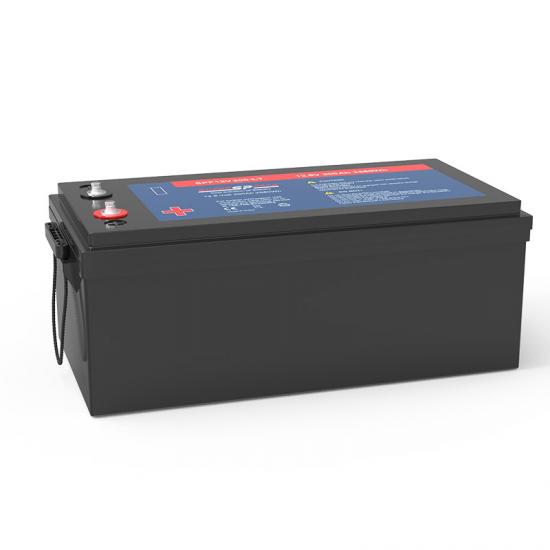

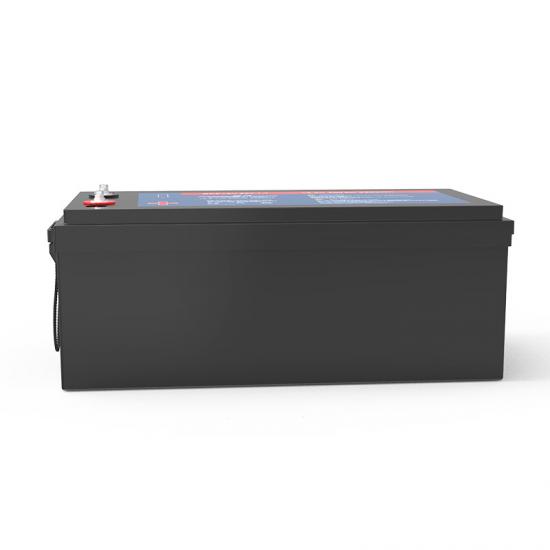

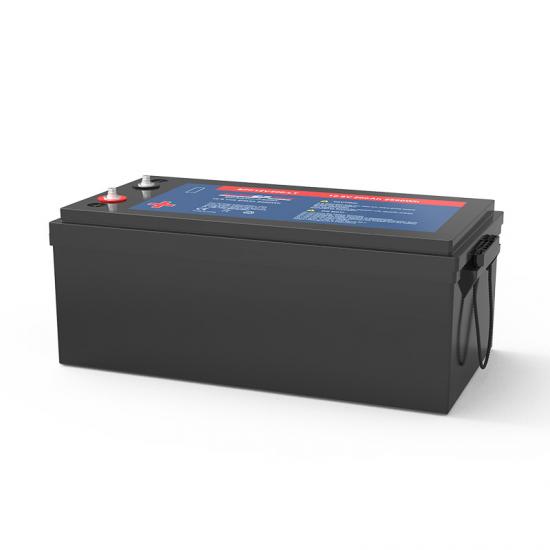

Deep Cycle LiFePO4 Battery 12.8V 200Ah with In built BMS
Superpack 12V Lithium Iron Phosphate battery is ideal for sealed lead battery replacement.
Maximum modules in series: 6 sets
Brand:
SuperpackItem NO.:
SPF12V200-LTProduct Origin:
ChinaColor:
BlackLead Time:
25-30 Working Days
Deep Cycle LiFePO4 Battery 12.8V 200Ah with In built BMS
When you are exploring the sea, the stability of the battery becomes particularly important. Superpack's Deep Cycle LiFePO4 battery is one of the most durable and reliable batteries. The stable lithium battery allows you to stay at sea for longer.
Advantages:
* There are five main types of hot products have been widely used in varieties of application field.
-- ST: Stands for standard type
-- BL: Stands for with Bluetooth communication type
-- SM: Stands for smart battery type with SMBus, RS485, RS232, CANBus and Ethernet, Etc.
-- LT: Stands for low temperature type can be charged below zero degrees
-- LB: Stands for low temperature type with Bluetooth communication
* Adopt high quality LiFePO4 cylindrical cells solutions
* Built-in BMS, It has a completed protection solution with over charge, over discharge, multi level of over current (charge/discharge) and short circuit, over temperature (charge/discharge), low temperature (charge/discharge), cells balance, and the protection threshold can be adjusted by the customization.
* For “LT and LB” types, we used a reliable heating film to heat up battery temperature up to 5 degrees around 1hour and then the battery turn on charging MOS/Relay to charge if the environment temperature below zero degrees
* Lightweight, 50~60% less weight than lead acid equivalent
* Long life, up to 10X longer than lead acid equivalent
* Deep cycle discharge, up to 98% discharge efficiency at 1C, 120% duration time more than lead acid equivalent.
* Fast charge within 3 hours
* Wide operating temperature range from -25℃ to 60℃ (Can be adjusted)
* Constant power available throughout discharge, as well as constant voltage, mean voltage would not decline like lead acid
* Low self-discharge, less than 3% per month
* High safety
* Green new energy, ECO friendly

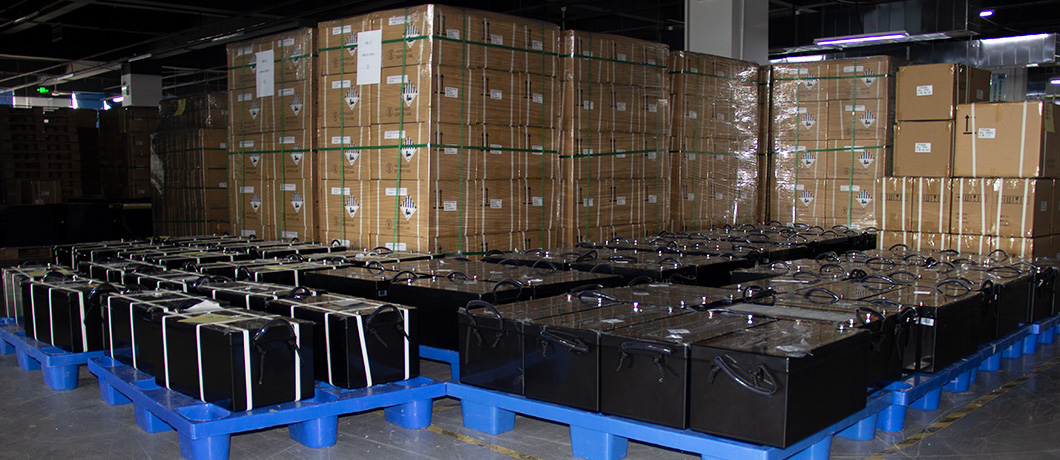

Production line
Application
Off Grid Electrical Systems
Recreational Vehicles
Solar Energy Storage
Boats & Cruising
Home Solar & Power Walls
Marine Applications
Rv Camper Trailers
Off-grid Cabins & Tiny Homes
Parameter
|
Nominal Voltage |
12.8V |
|
Nominal Capacity |
200Ah |
|
Energy |
2560Wh |
|
Dimensions |
L520 x W268 x H228mm |
|
Weight |
27.7Kg |
|
Internal Resistance |
≤30mohm |
|
Maximum Charge Current |
100A |
|
Charge Cut-off Voltage |
14.6V |
|
Maximum Continuous Discharge Current |
100A |
|
Housing Material |
ABS |
