Superpack solar lithium battery delivers reliable energy storage for homes & businesses. It pairs with solar panels to bank excess daytime power, ensuring steady supply day or night. This sun-powered solution advances renewable adoption for sustainable, energy-independent living.
Brand:
SuperpackItem NO.:
BESS- 15kWh-11kWProduct Origin:
ChinaColor:
whiteLead Time:
25-30 Working Days
Superpack Energy Storage System | Globally Certified & Sustainable Power
Global Safety Certifications
Trust the Superpack ESS, internationally certified for maximum safety and reliability. Our system meets rigorous global standards, holding CE, ROHS, and MSDS certifications – your assurance of secure operation worldwide.
Drive Sustainability with Green Energy Storage
Embrace a cleaner future with the Superpack ESS. This renewable energy storage solution significantly reduces carbon footprint, enabling sustainable energy usage and supporting global eco-friendly initiatives.
Premium Quality from Guangdong, China
Experience world-class manufacturing from Guangdong, China. The Superpack ESS is engineered with advanced production techniques and strict quality control, delivering dependable performance for global users.
Innovative High-Efficiency Energy Storage
Superpack pioneers cutting-edge energy storage technology. We develop high-efficiency, eco-conscious energy storage systems, actively advancing the global energy transition through sustainable innovation.

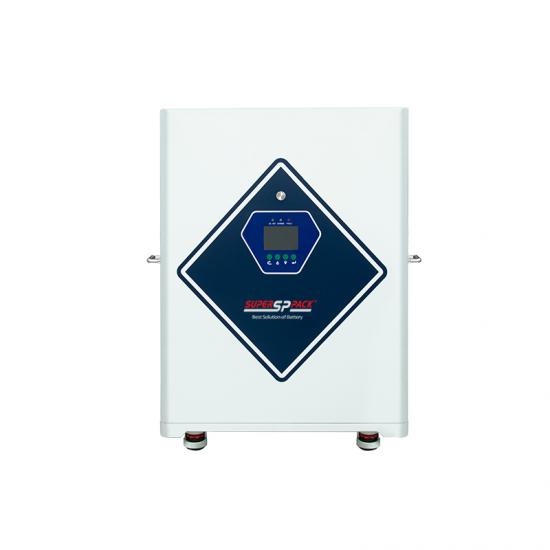

BESS- 15kWh-11kW Solar energy storage system
● Intelligent BMS: Built-in battery management for safety & longevity.
● LCD Touchscreen: Easy monitoring and control.
● Premium LiFePO4: EV-grade cells, 3000+ cycles, safe & reliable.
● 14.3kWh Capacity: Substantial energy storage.
● 11kW Bidirectional Power: High-power input/output.
Smart Integration
CAN/RS232/RS485 ports ensure compatibility with energy management systems, boosting efficiency and delivering precise control.

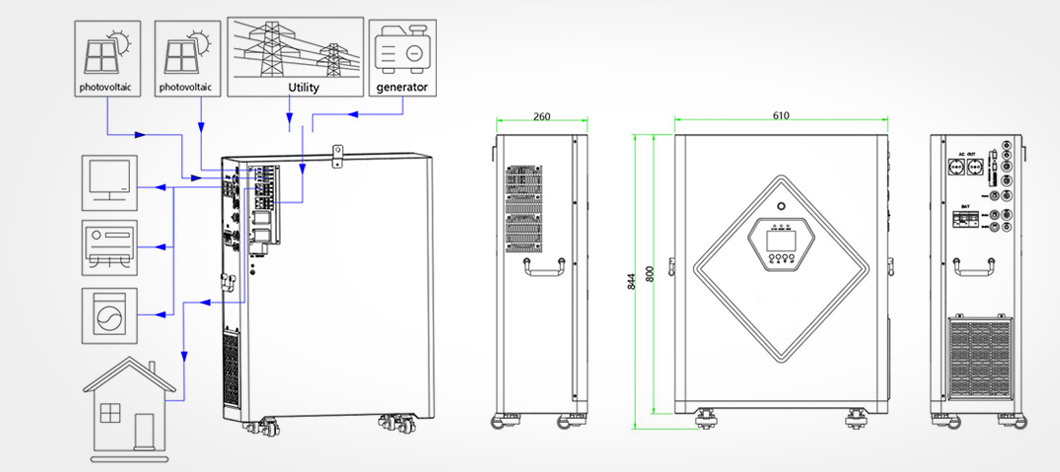

System application topology diagram
Specifications
| Project | Parameters | Remark | |
| Basic Parameters | Model | BESS- 15kWh-11kW | |
| Rated power | 14336Wh | ||
| Actual power | >15KWh | ||
| Cell Chemistry | LiFePO4 | ||
| Battery rated voltage | 51.2V DC | Voltage range: 43.2～58.4V | |
| Battery cycle times | ≥8000 | (25±2)℃/0.5P charge and discharge | |
| Net weight | ≈150 kg | ||
| Size | L 610*W 260*H 848mm | ||
| AC Input | Rated AC input voltage | 230V AC±5% | |
| AC input voltage range | 170～280V AC | ||
|
Frequency range |
50Hz/60Hz |
Sine wave/ |
|
|
Mains bypass load efficiency |
>95% |
Rated load/battery fully charged |
|
|
Charging AC current |
25A |
Adjustable up to 50A |
|
| Load Output |
Rated output power |
11KW |
|
|
AC output voltage range |
230VAC±5% |
|
|
|
Output frequency |
50Hz/60Hz |
Pure sine wave |
|
|
Maximum AC output current |
50A |
|
|
|
Surge capability |
5S 2 times rated power |
|
|
|
Motor load capacity |
7HP |
|
|
| Overload protection | 102%<load<125%) ±10% | Report an error, turn off output after 5 minutes | |
| Load>125% | Report an error, close the output after 5 seconds | ||
| Bypass switching time | 10ms | ||
| No-load power consumption | <80W | ||
| MPPT | MPPT maximum power |
5.5KW+5.5KW=11KW |
2-way |
|
Maximum input current |
22A+22A |
|
|
|
Maximum open circuit voltage |
500V DC |
|
|
|
MPPT voltage range |
90V～450V DC |
|
|
|
Conversion efficiency |
>95% |
|
|
| Other |
Humidity |
5% to 90% relative humidity |
|
|
Charging temperature |
0℃～55℃ |
|
|
|
Discharge temperature |
-20℃～55℃ |
|
|
|
Storage temperature |
-25℃～60℃ |
|
|
|
Noise |
≤60dB |
Cooling fan sound |
|
|
Heat dissipation |
Air Cooling |
|
|
|
Maximum number of parallel devices |
Single-phase: 6 in parallel |
|
|
|
Maximum battery expansion capacity |
1-14 |
|
