Superpack's 48V 200Ah battery is the ideal wall-mounted energy storage solution for homes, featuring a stylish blue and grey exterior. It is designed for industrial, off-grid residential, and commercial solar applications. Typically paired with solar panels or other renewable energy sources, this battery stores excess energy generated during the day for use at night or during high-demand periods, offering cost-effective energy support for homes and businesses.
Brand:
SuperpackProduct Origin:
ChinaColor:
GrayLead Time:
25-30 Working Days
Features
· Grade A LiFePO4 Cells: Utilizes high-quality batteries to ensure optimal battery performance from the source.
· External LCD Screen: Monitors energy storage battery data and operating status in real-time.
· High-Performance Lithium Iron Phosphate Battery: Offers superior safety and long service life.
· RS485/CANbus Communication: Enables easy communication with compatible equipment.
· Expandable Battery Bank: Can be expanded in parallel as power needs increase.
· 98% Efficiency: Operates with 98% efficiency for more than 6000 charge cycles.
· 100% Depth of Discharge: Provides the option for full utilization of battery capacity.

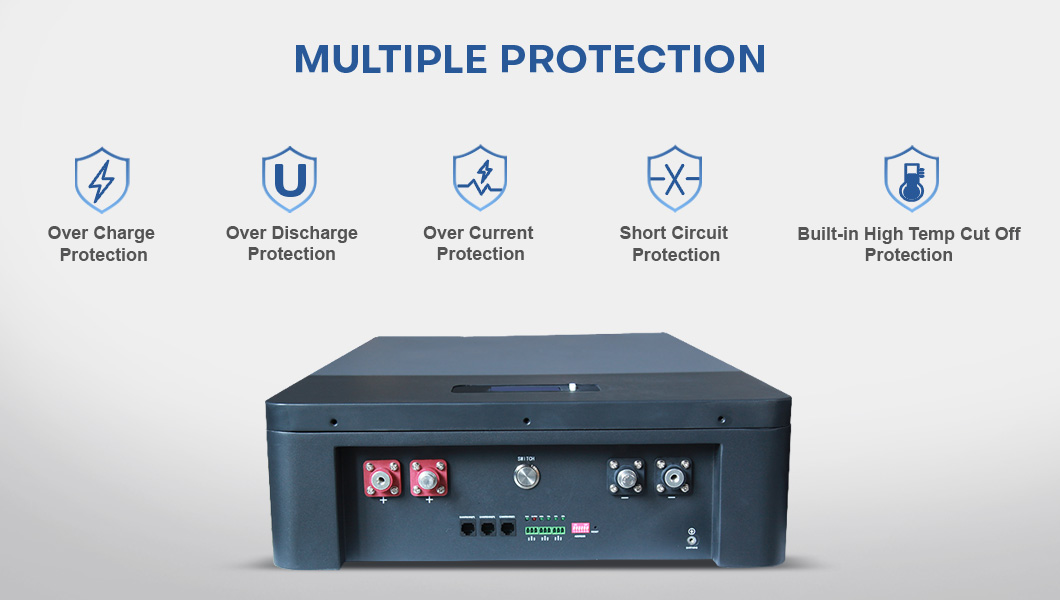

· Integrated Battery Management System (BMS): Ensures safe and efficient battery operation.
· Flexible Control: Suitable for all commercial applications.
· Quick and Easy Installation: Requires minimal setup and is maintenance-free.
Application
• Household Energy Storage
• UPS System
• Solar Energy Storage System
• Electric Power System
• Communication Equipment
Product Specification
|
Item |
General Parameter |
|
Rated Capacity |
200Ah |
|
Minimum Capacity |
190Ah |
|
Nominal Voltage |
48V |
|
Life Expectation |
Higher than 80% of the Initial Capacity of the battery |
|
Discharge cut-off voltage |
40.5V(2.7V/Cell) |
|
Charge cut-off voltage |
57.6~58.4V |
|
Cell and assembly method |
IFP50160115-3.2V100Ah |
|
Housing material |
Iron |
|
Standard charge |
0.2C constant current (CC) charge to 54.75Vthen constant voltage (CV) 54.75V charge till charge current decline to ≤0.02C |
|
Standard discharge |
Constant current 0.2C，Cut-off voltage |
|
Maximum Charge Current |
100A |
|
Maximum Continuous Discharge Current |
100A |
|
Operation Temperature Range |
Charge：0～55℃ |
| Discharge20～60℃（cell surface temperature≤80℃） | |
|
Approx. Weight |
94Kg±1% |
|
Internal resistance |
8~20mΩ @50%SOC |
|
Dimension |
L*W*H=（900*500*180mm）±2mm |
|
Terminals |
M8 |
|
Communication |
RS485/CANbus |

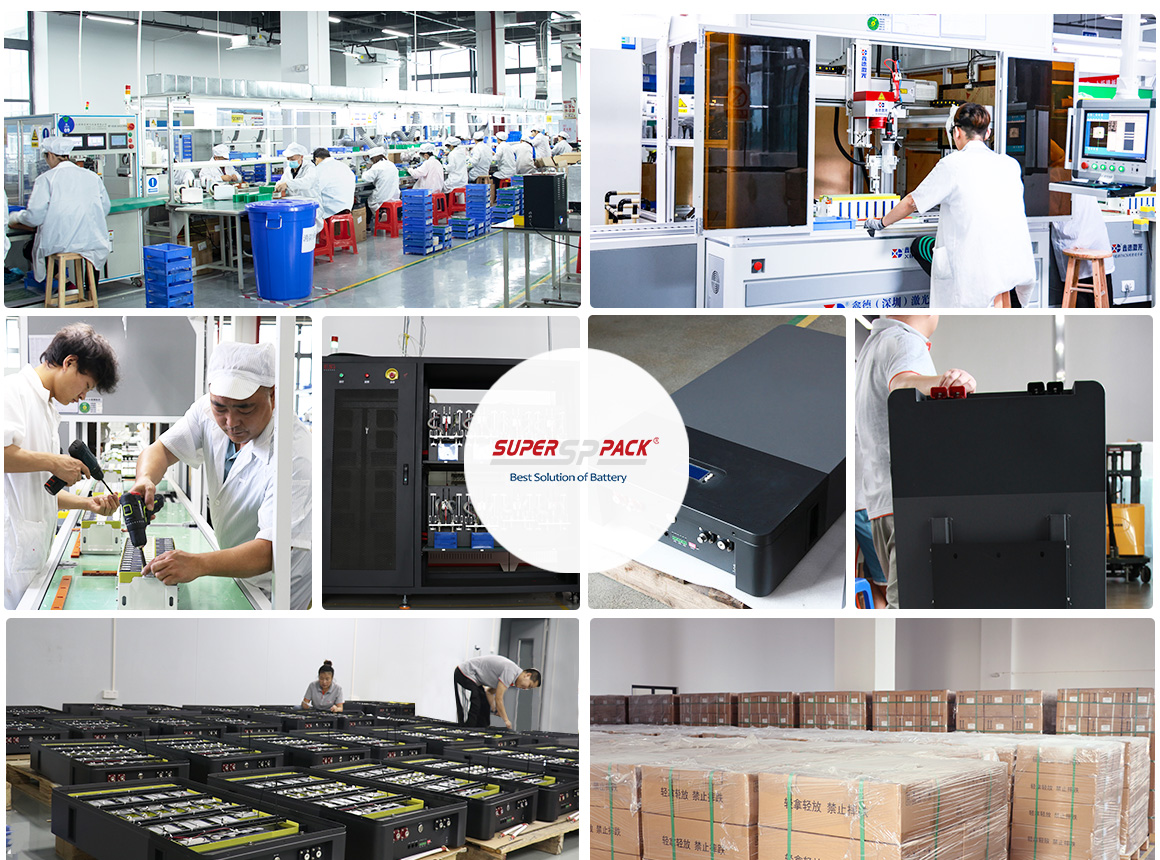

Production line
FAQ
Q:Is Superpack Technology Co., Ltd a lithium battery factory?
A:Superpack is an experienced battery manufacturer that integrates research, development, production, and sales.
Q:What is the quality of lithium battery products from Superpack?
A:Superpack has a strong R&D team and holds several international certifications, including MSDS, UN38.3, FCC, IEC62133, CE, UL, KC, BIS, CB, ROHS, and ISO9001:2015.
Q: Can you provide OEM and ODM service?
A: Yes, We are a professional energy storage Battery system manufacture with factory, Can be customized according to customer requirements and design production,welcome to place OEM and ODM orders and visit our factory.
