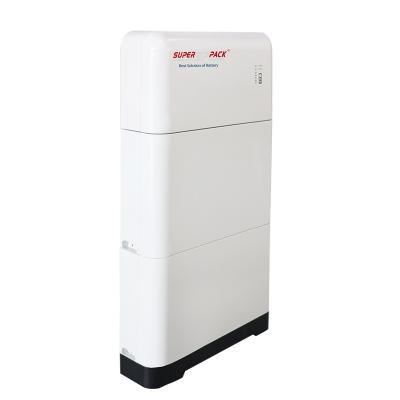

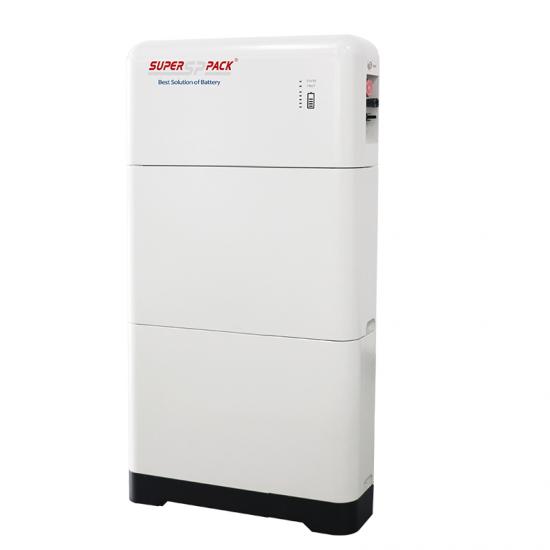

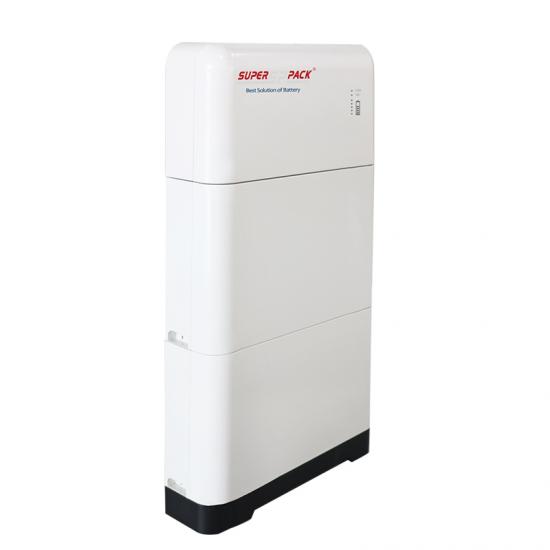

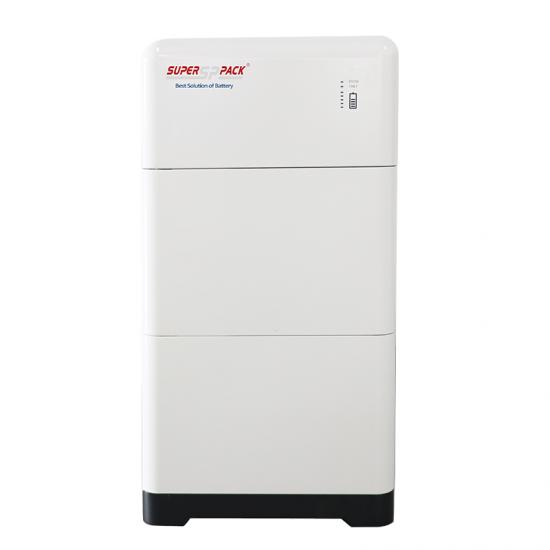

Superpack’s Stack HV Series is a high-voltage LiFePO4 battery system designed for home energy storage and residential solar setups. With a nominal voltage of 204.8V, it features flexible, stackable modules and easy floor-mounted installation.
● Maximum output is 10KW or 20KW.
● 10KWh is suitable for 10KW and 20KWh for 20KW; Single phase or 3 phases on/off hybrid inverter.
● RS485/CANbus, compatible with main brand inverters.

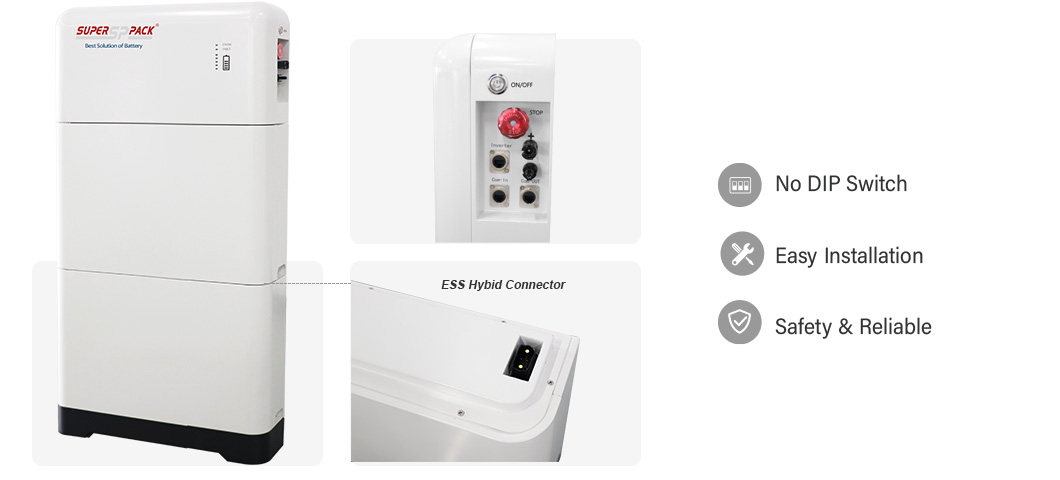

● Easy to install.
Brand:
SuperpackItem NO.:
SPF-204V50-HVProduct Origin:
ChinaColor:
whiteLead Time:
25-30 Working Days
1. Advanced LiFePO4 Technology:
2. Extended Lifespan:
3. Scalable Energy Options:
4. High Output Power:
5. Compact and Versatile Design:
6. Smart Communication:
7. Robust Safety Features:
8. Wide Operating Temperature Range:
9. Environmentally Friendly:
10.High Protection Rating:

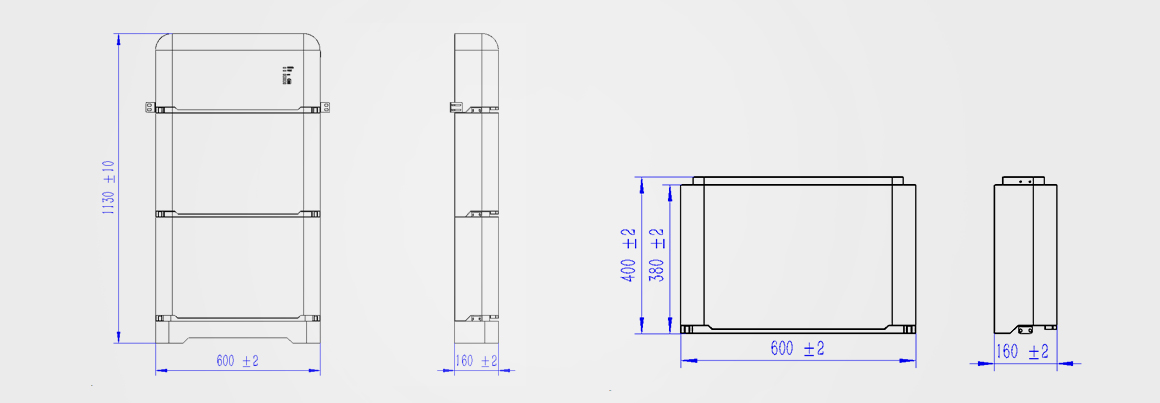

SPF204V50-HV Drawing

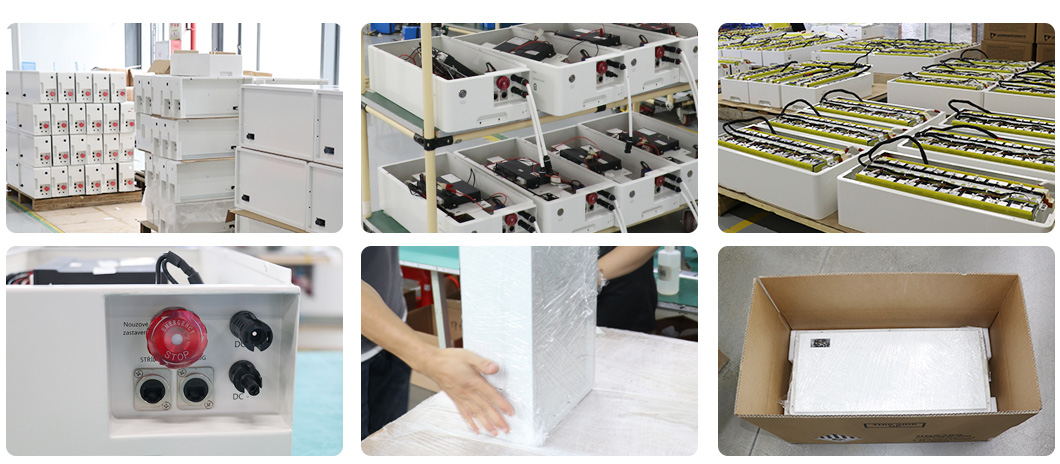

Production line
High Voltage Battery System suitable applications include
Specifications
| Model | SPF204V50-HV |
| BATTERY | |
| Cell Chemistry | LiFePO4 |
| Battery Energy | 10.24KWh |
| Nominal Voltage | 204.8V |
| Battery Capacity | 50Ah |
| Maximum Charging Current | 50A |
| Maximum Continuous Discharge Current | 50A |
| Maximum Output Power | 10KW |
| HV Controller | 1pc |
| Weight | 58.6Kg |
| Dimension Lx DxH | 600 x 160 x 1130mm |
| Operating Voltage Range | 179.2 ~230.4V |
| Cycle Life | 6000 cycles at 80% DOD |
| Designed Life-span | 10 years |
| Installation | Floor-mounting (Horizonal and stacking) |
| Communication | 0~50°C |
| Charging Temperature Range | -20~60°C |
| Discharge Temperature Range | IP54 |
| Enclosure Protection | ≤85% |
| Humidity | ≤2000m |
| Altitude | In door |
| Inverter Choosing | On/Off Grid Single/3 phases inverter |
| Heat Management | Air Cooling |
| Communication Matching with Inverters Certification | RS485/CANbus/Ethernet/WiFi MEGAREVO/GOODWE/GRWT/SAM/SUNGROW |
| Certification | UL1973, IEC62619, CE61000, UN38.3 |
