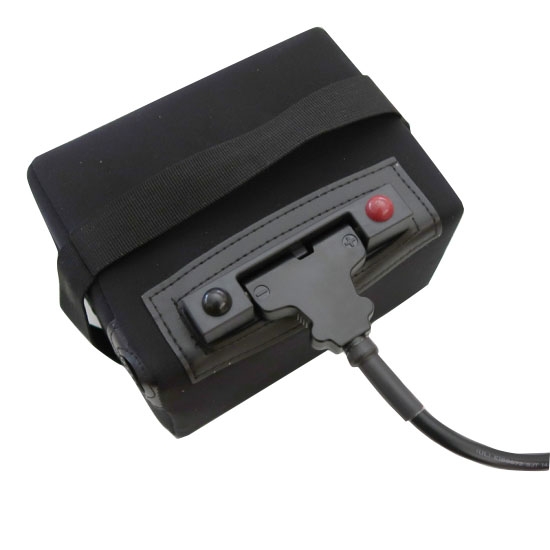

Rechargeable Lithium LiFePO4 Battery 12V 22Ah for Golf Trolley
12V22Ah LiFePO4 battery for powakaddy, motocaddy, hill billy, stewart, bat-caddy, bigmax, golfstream, ben sayers, offmetrolley, caddytrek, gokart, golferpal, bag boy etc.
Brand:
SuperpackItem NO.:
SPF12V22-STProduct Origin:
ChinaMin order:
10Lead Time:
25-30 Working Days
This battery is for golf trolley and you can use them to replace the 12V lithium battery from powakaddy, motocaddy, hill billy, stewart, bat-caddy, bigmax, golfstream, ben sayers, offmetrolley, caddytrek, gokart, golferpal, bag boy etc.
Lithium-ion Battery Overview
The special designed Lithium batteries are advanced and lightweight. It is a complete revolution for the electric golf caddy market. No more lifting and maneuvering a 24 lb weight into your trolley, and in and out of your vehicle. They are less than 1/3 the weight of a lead acid battery and less than 1/3 the size !
High cycle life
>2000 cycles @80% DoD for effectively lower total cost of ownership.
Wider Compatibility
Suitable for all mainstream Golf Trolleys

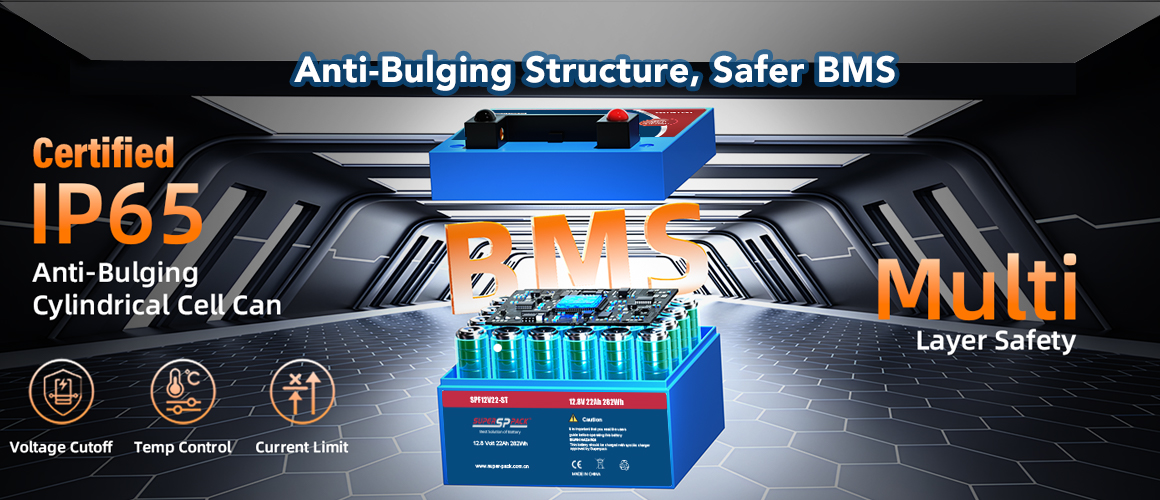

Built in circuit protection
Protection Circuit Module (PCM) is incorporated against abuse.
Better storage
up to 6 months thanks to its extremely low self discharge (LSD) rate and no risk of sulphation.
Quickly recharge
Can be fully charged in 2.5 hours with specified charger.
Extreme heat tolerance
Can work properly at the ambient temperature up to+60°C.
Lightweight
Lithium batteries provide more Wh/Kg while also being up to 1/3 the weight of its SLA equivalent.
Small size and light weight leave less pressure to the trolley which is more easy to handle and use.
Product Parameter
|
Item |
Parameter |
|
Nominal Voltage |
12.8V |
|
Nominal Capacity |
22Ah |
|
Energy |
281.6Wh |
|
Dimensions |
L168 x W128 x H102mm |
|
Weight |
3.0Kg |
|
Internal Resistance |
≤30mohm |
|
Maximum Charge Current |
5A |
|
Charge Cut-off Voltage |
14.6V |
|
Discharge Cut-off Voltage |
10.0V |
|
Maximum Continuous Discharge Current |
30A |
|
Housing Material |
ABS |
|

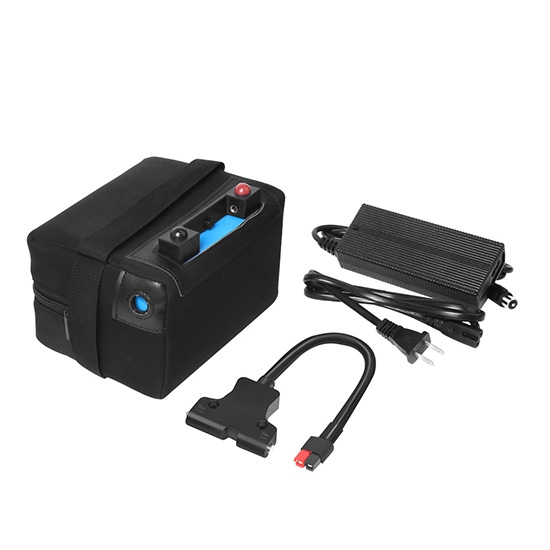

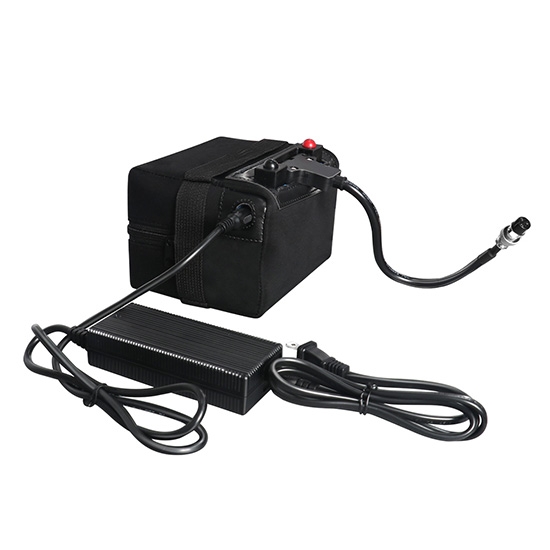

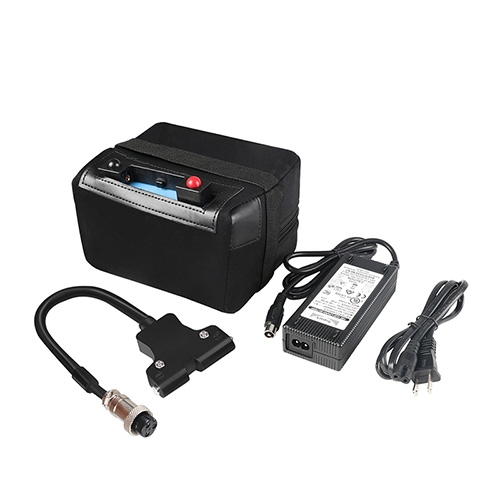

Accessories |

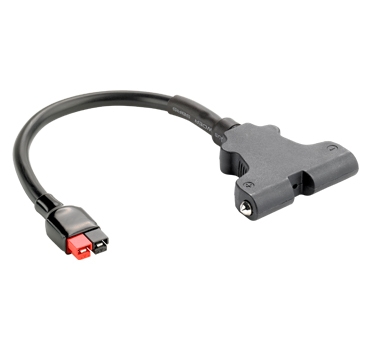

T-bar, bag and 12V3A charger |
|
Duration |
36 Holes |
|
Service life |
2000+ cycles |
