Brand:

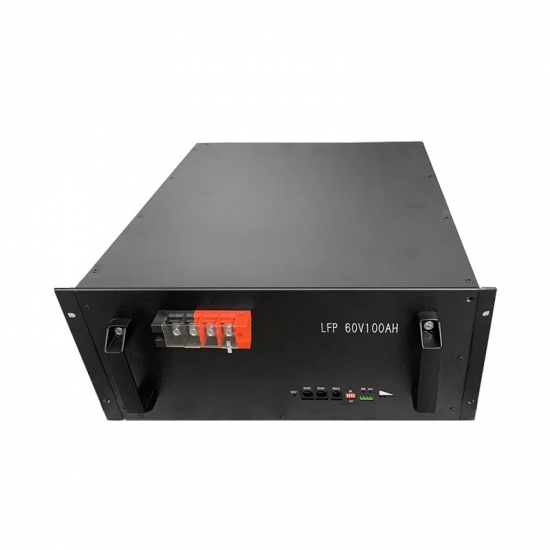

SuperpackSuperpack SPF60V100ah Off-grid Energy Storage
Superpack Energy Lithium Batteries LiFePO4 is the safest of the mainstream li-ion battery types.
For solar array owners, the appeal of lithium battery storage makes sense. On sunny days, Solar-powered home battery backup systems have a number of advantages. If you’re looking for energy storage, solar battery backup is not your only option. Home battery backup systems can run purely on energy from the electrical grid, saving you the hassle and cost of installing solar panels. Like solar energy storage, battery backup systems from the electrical grid can keep your home running in the event of a power outage. Additionally, they can save you money on your utility bill if you charge them when utility prices are low then disconnect when prices are high. Upfront prices for battery backup systems without solar energy storage range from $10,000 to $20,000 for a medium-sized home. Unfortunately, since they cannot be charged separately from the electrical grid, these batteries will not last as long during an outage. If you want to run your home separately from the grid for more than a few hours, you may need to reduce your house’s energy usage. For example, you may want to avoid taking long showers or running the washing machine during an extended outage in order to avoid draining the battery.
| Name |
64V 100Ah Energy Storage |
|
Item |
General parameter |
|
Nominal voltage |
64V |
|
Nominal capacity |
100 Ah |
|
Energy |
6400Wh |
|
Approx. weight: |
64Kg |
|
Dimensions (LxWxH) |
529 *483.2*222mm |
|
Discharge cut-off voltage |
54V |
|
Charging cut-off voltage |
73V |
|
Housing material |
Steel casing |
|
Standard Discharge |
The capacity means the discharge capacity of the battery, which is measured with discharge current10A with 40V cut-off within 0.5 hour after the Standard Charge |
|
Maximum Continuous Charge Current |
100A@25℃ |
|
Charge Temperature Range |
0~45℃ |
|
Discharge Temperature Range |
-20~60℃ |
|
Internal resistance |
40mΩ |
|
Communication mode |
RS232/RS485 |
Compatible with 48V DC Inverter
| Inverter Brand | Inverter Type | Communication | Application | Installation |
|
sunny island 6.0H | Powerwall Battery | ||
|
Multiplus 48V | CAN | On/off-grid* | Powerwall / Rackmount Battery |
|
SUN-SG01LP1 series | CAN / RS485 | On/off-grid* | Powerwall / Rackmount Battery |
| SUN-SG03LP1 series | CAN / RS485 | On/off-grid* | Powerwall / Rackmount Battery | |
|
SPH3000 - 6000 | CAN | On/off-grid | Powerwall / Rackmount Battery |
| SPF2000 - 5000 | RS485(9600) | On/off-grid | Powerwall / Rackmount Battery | |
|
GW-BP | CAN | On/off-grid | Powerwall / Rackmount Battery |
| SBP GW-ES | CAN | On/off-grid | Powerwall / Rackmount Battery | |
| EM | CAN | On/off-grid | Powerwall / Rackmount Battery | |
|
Xtender 48V serie | CAN | On/off-grid | Powerwall / Rackmount Battery |
|
Infinisolar series 48V | RS485(9600) | On/off-grid | Powerwall / Rackmount Battery |
| Axpert series 48V | RS485(9600) | On/off-grid | Powerwall / Rackmount Battery | |
|
RHI series | CAN | On/off-grid | Powerwall / Rackmount Battery |
|
LXP Hybrid 6K/8K | CAN | On/off-grid | Powerwall / Rackmount Battery |
|
BD series | CAN | On/off-grid | Powerwall / Rackmount Battery |
|
SMT-5K-TL-LV | CAN | On/off-grid | Powerwall / Rackmount Battery |
|
Conext XW Pro series | CAN | Debugging in progress | |
|
HYD series | RS485(115200)/CAN | Debugging in progress | |
|
Any-grid PSW-H-5kW-230/48V | RS485(9600) | Debugging in progress | |
|
SH5K | CAN | Debugging in progress | |
|
BK-BP Series | CAN | Debugging in progress |
48v 100ah LiFePO4 (LFP) battery for telecom base station/solar system
Learn More
51.2V100Ah Battery Telecom Base Station/ Energy Storage System (Ess) / Solar System Battery / Ups
Learn More
To create a 288V battery energy storage system, you can combine six 48V52Ah LiFePO4 battery modules. This configuration provides a robust and scalable power source suitable for various applications, from renewable energy storage to backup power systems. With the inherent safety
Learn More
18V5Ah LiFePO4 Lithium Battery for e-Scooters, e-Bikes, solar applications, robots, and other applications that require a higher energy density battery.
Learn More
12V100Ah deep cycle marine battery for RV,Electric Vehicles,Floor Machines,Marine,Recreational Vehicles,Solar
Learn More
18.5V20Ah lithium-ion battery is a popular choice for cleaning robotics, offering ample power for lengthy cleaning sessions and reliable performance.
Learn More
High-temperature LiFePO4 cells for use with emergency lighting units
Learn More
Features: ● High quality single cells.● Intelligent BMS management system. ● 6kWh high capacity lithium iron phosphate cell. ● 3kW bidirectional inverter output. ● Supports UPS (uninterruptible power supply) settings. ● Intelligent Off Network Control System. ● With USB charging ports. ● Support 120V, 3kW photovoltaic power generation. Application Specifications Item SP-ESS-6kWh-B1 Electrical Characteristics Cell Chemistry LiFePO4 Nominal Voltage 25.6V Battery Energy 6kWh Cycle Life >3000 Cycle @80%DOD,at 25°C Communication RS485/RS232/CAN Standard Charge Charge Voltage 29.2V Standard Charge Current 100A Rapid Charge Current 150A Max. Charge Current 150A Standard Discharge Discharge Cut-off Voltage 20A Standard Discharge Current 100A Max. Continuous Discharge Current 150A Inverter Inverter 170-280VAC; 50/60Hz AC Output 230VAC 50/60Hz Rated Power 3000W MPPT MAX.PV Array Power 3000W MPPT Operating Voltage 90-450VDC MPPT Max Charge Current 80A UB-A Specification 5V 3.6A Temperature Charge Temperature 0°C~55°C Discharge Temperature -20°C~65°C Mechanical Dimensions (H*W*D) 610*560*270mm Weight 86.5±0.5Kg
Learn More
