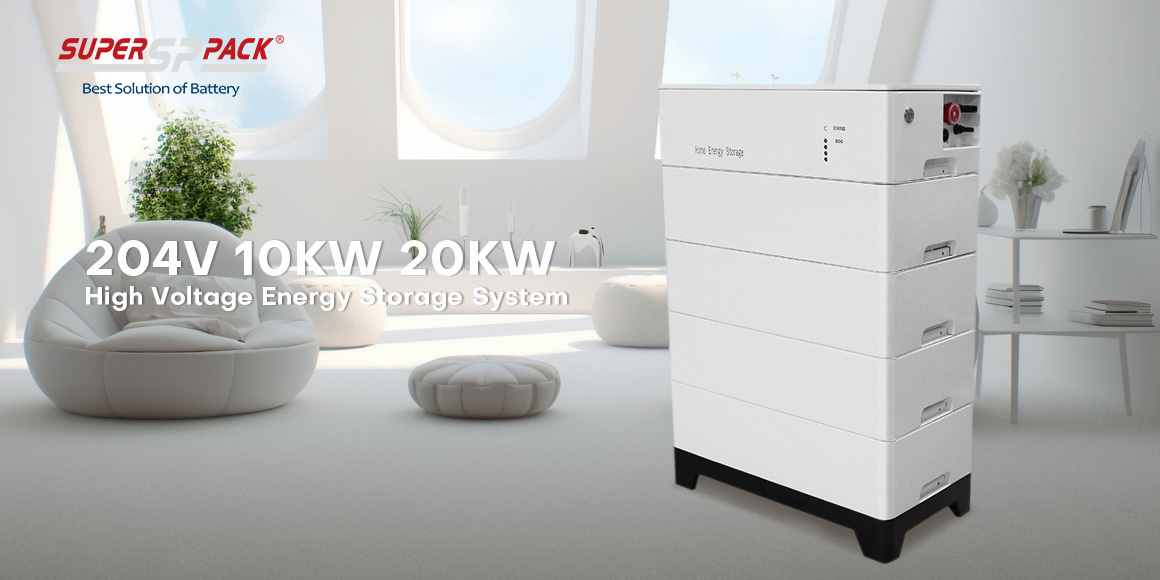

204V 10KW 20KW High Voltage Energy Storage System Lifepo4 Battery
Superpack 204V high voltage energy storage system custom-designed for commercial and industrial applications. Engineered with cutting-edge technology, it sets a new standard in energy storage for the modern era. This innovative system is designed to cater to the unique needs of commercial and industrial operations, offering unparalleled reliability and efficiency.
Brand:
SuperpackProduct Origin:
ChinaColor:
whiteLead Time:
25-30 Working Days
Superpack 204V High voltage Green energy storage provides renewable energy generation for your home and business while increasing uptime and reliability. Energy storage makes power from renewable sources dependable and available on demand.
204V High Voltage Battery System (Stacked Style)
•Maximum output is 10KW or 20KW.
•10KWh is suitable for 10KW and 20KWh for 20KW; Single phase or 3 phases on/off hybrid inverter.
•RS485/CANbus, compatible with main brand inverters.
•Easy to install.
Specifications:
|
Item |
SPF204V50-HV |
SPF204V100-HV |
|
BATTERY |
||
|
Cell Chemistry |
LiFePO4 |
LiFePO4 |
|
Battery Energy |
10.24kWh |
20.48kWh |
|
Nominal Voltage |
204.8V |
204.8V |
|
Nominal Capacity |
50Ah |
100Ah |
|
Maximum Charging Current |
50A |
100A |
|
Maximum Continuous Discharge Current |
50A |
100A |
|
Maximum Output Power |
10kW |
20kW |
|
HV Controller |
1pc |
1pc |
|
Weight |
108Kg |
216Kg |
|
Dimensions (L x W x H) |
560 x 270 x 850mm |
560 x 540 x 850mm |
|
Operating Voltage Range |
179.2 ~230.4V |
|
|
Cycle Life |
6000 Cycles at 80% DOD |
|
|
Designed Life-span |
10 Years |
|
|
Installation |
Floor Mouned (Horizonal and Stacking) |
|
|
Communication |
RS485/CANbus/Ethernet/WiFi |
|
|
Charging Temperature Range |
0~50°C |
|
|
Discharge Temperature Range |
-20~60°C |
|
|
Enclosure Protection |
IP54 |
|
|
Humidity |
≤85% |
|
|
Altitude |
≤2000m |
|
|
Application |
Indoor |
|
|
Inverter Choosing |
On/Off Grid Single/3 Phases Inverter |
|
|
Heat Management |
Air Cooling |
|
The 10pcs 51.2V LiFePO4 battery module in series with a high-voltage (HV) battery controller delivers 512V of power in a compact package. Its modular design allows for easy installation, while RS485 and CANbus interfaces offer broad compatibility with various inverters. This flexible setup suits both on-grid and off-grid systems, providing a versatile energy solution for a wide range of applications.
