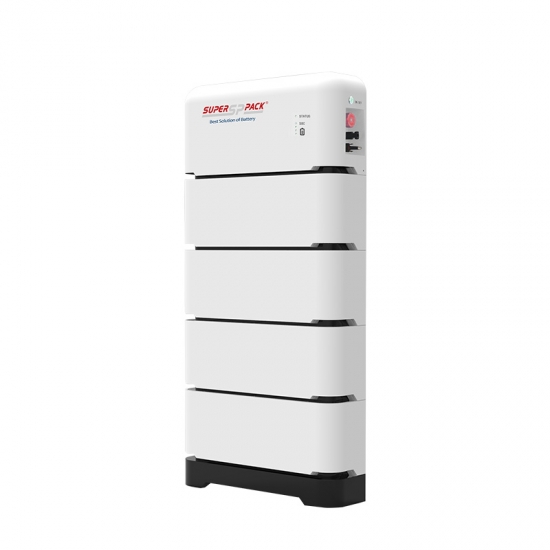

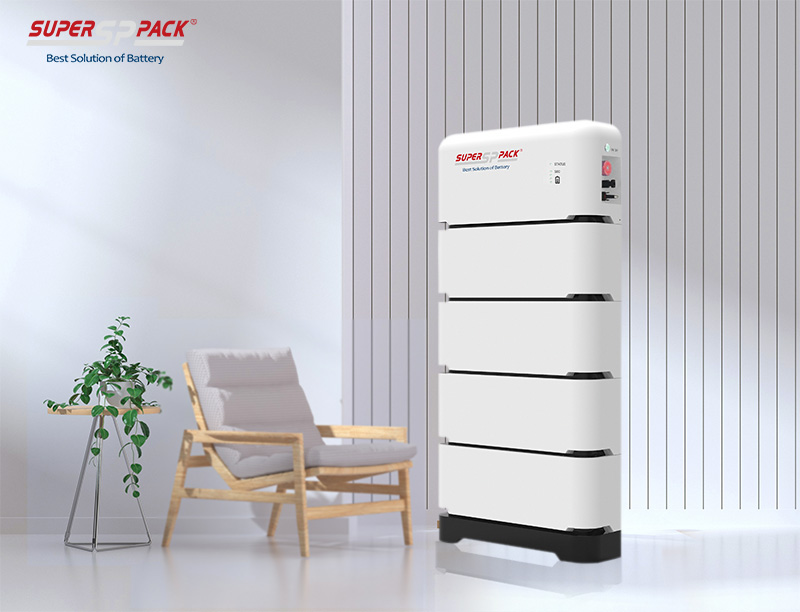

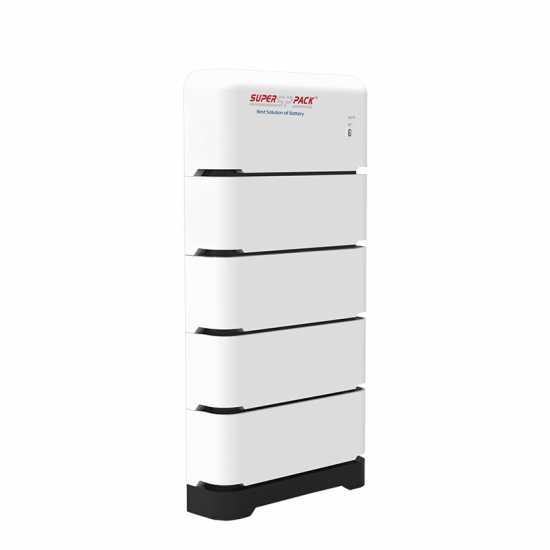

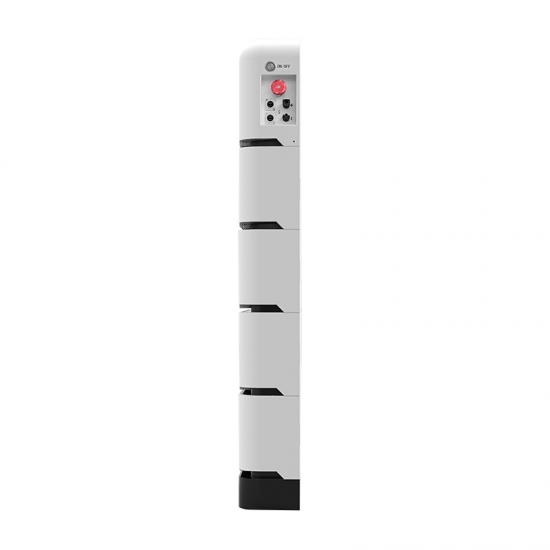

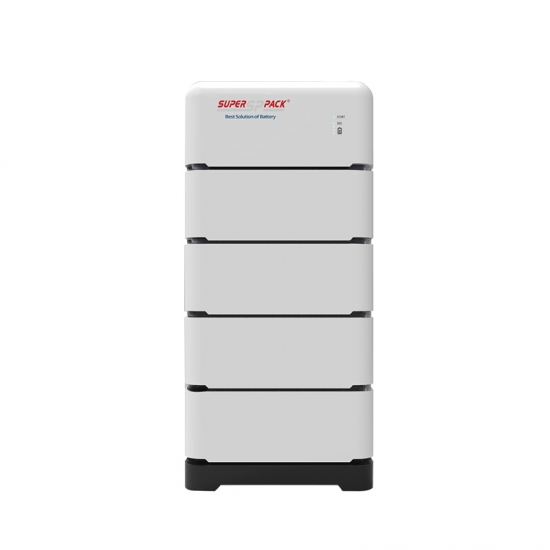

204V50Ah Rechargeable Stacked High Voltage Household Energy Storage Battery
The maximum output capacity is either 10 kW or 20 kW. A 10 kWh battery is compatible with the 10 kW inverter, while a 20 kWh battery pairs with the 20 kW inverter. This system supports both single-phase and three-phase operations, offering a versatile on/off hybrid inverter solution.
Brand:
SuperpackItem NO.:
SPF204V50-HVProduct Origin:
ChinaColor:
whiteLead Time:
30 working days
Since energy storage is a key part of energy transition and power transformation, Superpack has developed a new High Voltage Battery System 204v Stacked Series, which is a safe, efficient and economical home energy storage system, An ESS can store surplus energy generated from rooftop photovoltaic panels for use when needed. When the sun has set, energy demand is high, or there is a black-out, you can use the energy stored in your ESS to meet your energy needs at no extra cost. In addition, an ESS helps you pursue the goal of energy self-consumption and ultimately energy-independen

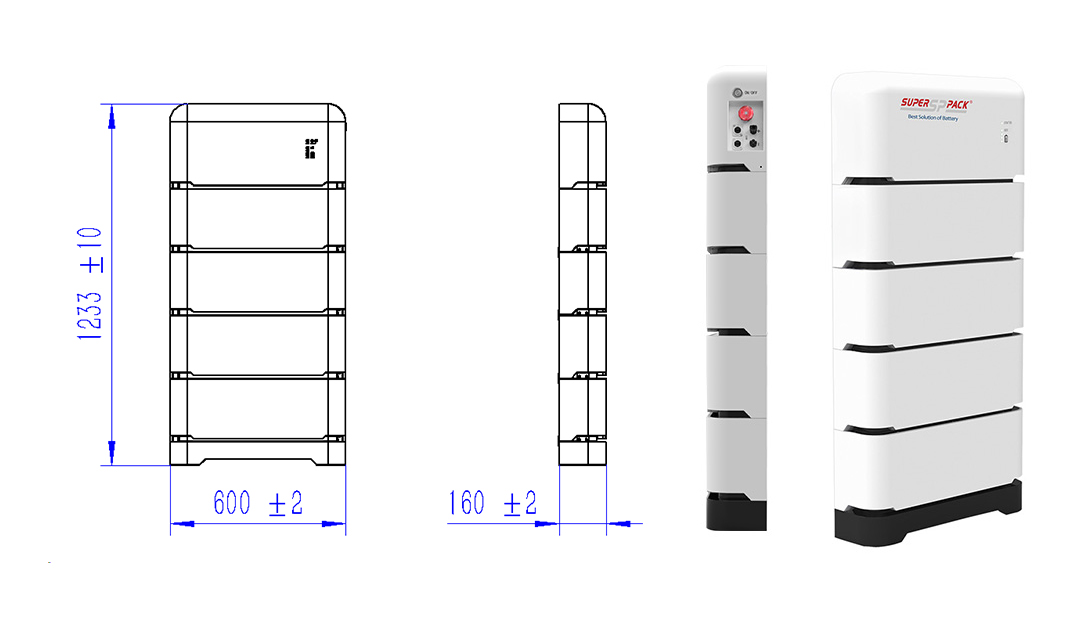

Dimension

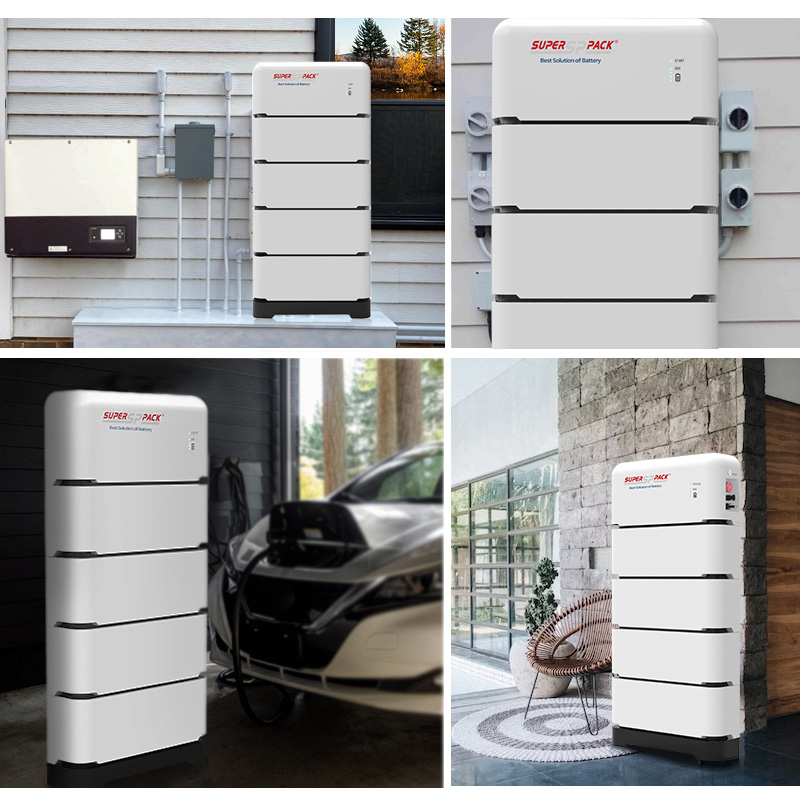

Renewable Energy Storage Commercial and Industrial Telecommunications
| Items |
Specification |
| Nominal Capacity | 52Ah |
| Nominal Voltage | 204.8V |
| Charging Cut-off Voltage | 230.4V |
| Max. Continuous Charge Current@25℃ | 35A |
| Max. Continuous Discharge Current@25℃ | 50A |
| Max Discharge Power @25℃ | 10.24KW |
| Peak Discharge Power @25℃,100ms | 13.31KW |
| Discharge Cut-off Voltage | 192V |
| Operating Temperature Charge | 0℃ ~ 60℃ |
| -20℃ ~ 60℃ | |
| Weight | ≈108Kg |
| Dimension Lx DxH | 600x160x1233mm |
| Iinternal resistance |
＜50mΩ |
| Communication mode | RS485/CAN |
Superpack 204V high voltage energy storage system custom-designed for commercial and industrial applications. Engineered with cutting-edge technology, it sets a new standard in energy storage for the modern era. This innovative system is designed to cater to the unique needs of commercial and industrial operations, offering unparalleled reliability and efficiency.
Learn More
The 10pcs 51.2V LiFePO4 battery module in series with a high-voltage (HV) battery controller delivers 512V of power in a compact package. Its modular design allows for easy installation, while RS485 and CANbus interfaces offer broad compatibility with various inverters. This flexible setup suits both on-grid and off-grid systems, providing a versatile energy solution for a wide range of applications.
Learn More
SPF512V30 LifePo4 batteries offer remarkable flexibility, Their modular design allows for easy scalability, enabling users to expand their energy storage capacity as needed.
Learn More
48v Deep Cycle Lifepo4 Battery Powerwall for Home Solar Storage System
Learn More
12.8V 100Ah motorhome house batteries,LiFePO4 Battery with Inbuilt BMS 12V Lithium Iron Phosphate battery is ideal for sealed lead battery replacement.
Learn More
25.9V 200AH LiFePO4 lithium battery pack for Electric forklift ,golf cart,Electric Vehicle,Sweepers, Scrubber
Learn More

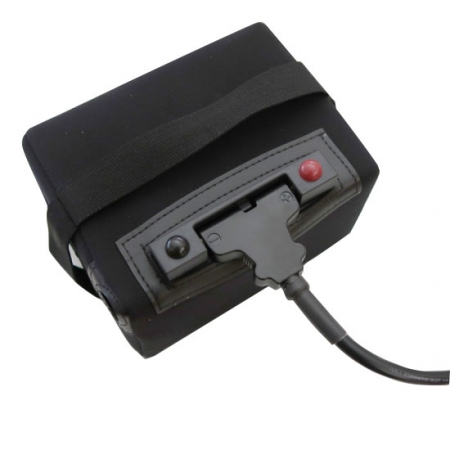

12V 7600mAh Lithium ion battery rechargeable for Patient Monitor Battery
