Lithium Iron Phosphate (LiFePO4) batteries are widely used in golf carts, e-rickshaws, cleaning machines, electric sightseeing vehicles and utility vehicles, vintage carts, wheelchairs, and handling equipment
Brand:
SuperpackProduct Origin:
ChinaColor:
BlackLead Time:
25-30 Working DaysSuperpack has developed a series of GC2 lithium iron phosphate batteries to replace lead-acid batteries, which are extensively used in low-speed electric vehicles such as golf carts, utility vehicles, and warehouse tractors. They also find applications in scissor lifts, trolling motors, outboard motors, lawn mowers, forklifts, cleaning machines, and tow tractors, offering high safety, ultra-long life, high energy density, long-lasting charge, fast charging, and eco-friendliness, all achievable with a simple battery swap.Intelligent Feature
| Up to 10 Parallel Connections • Scalable capacity up to 300Ah • Additive continuous and peak current • Intelligent battery-to-battery balancing |
Characteristics • Fast charging within 3 hours |
|
|
|
|
Unique BMS Design |
Heat-sink Design • Strategically located • Unique passive cooling • Prevents over-heating of critical components • Plastic housing: ABS+PC • BCI Size GC2 • Enclosure: UL94-V0 & IP67 |

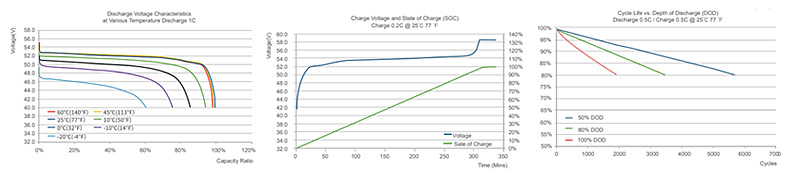

Typical Performance Curve for SPF48V32-GC2

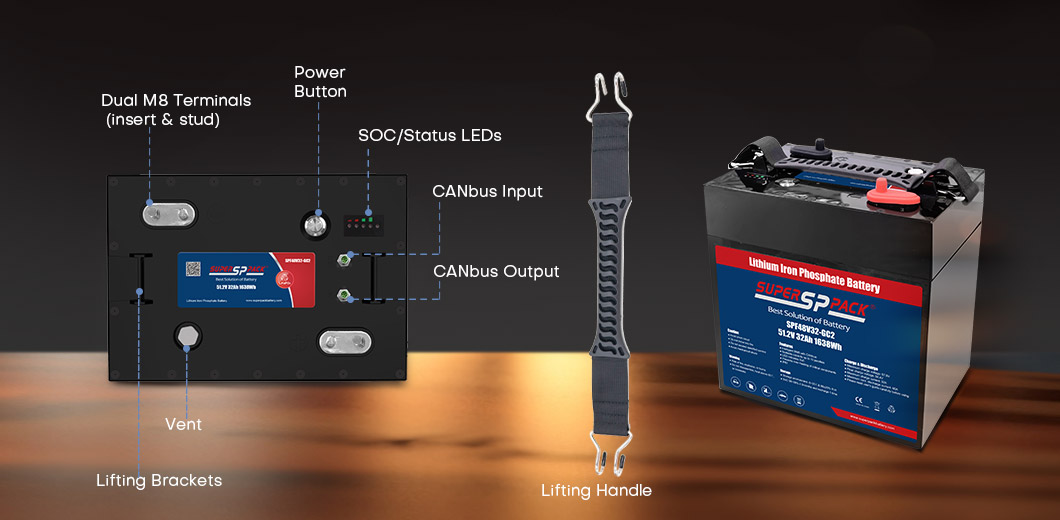

LiFePO4 GC2 Battery Structure

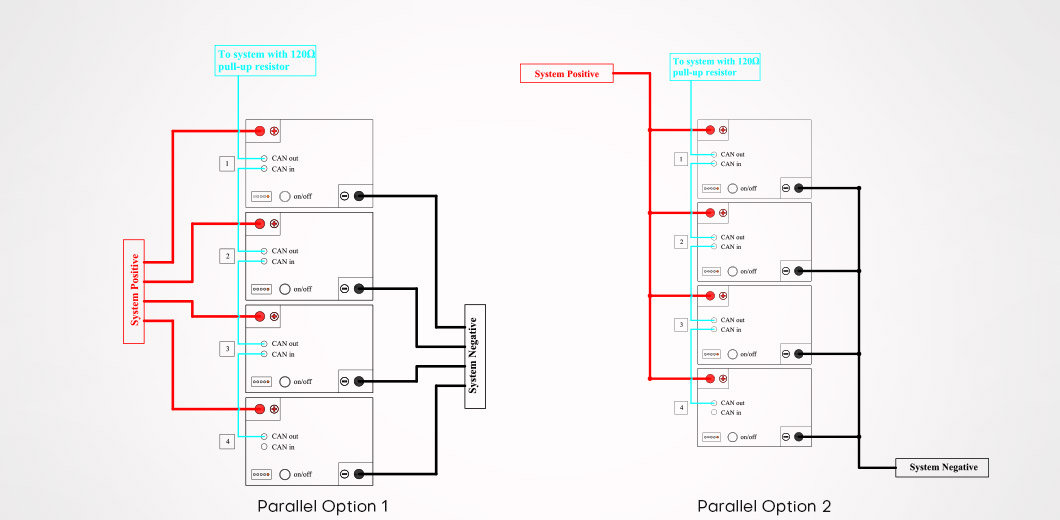

LiFePO4 GC2 Parallel Connection
Application

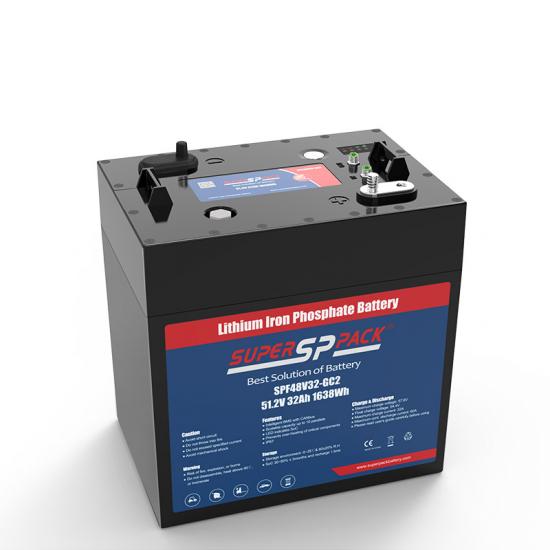

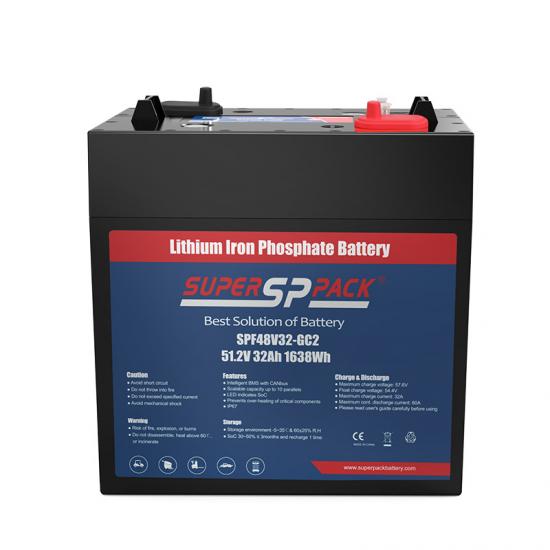

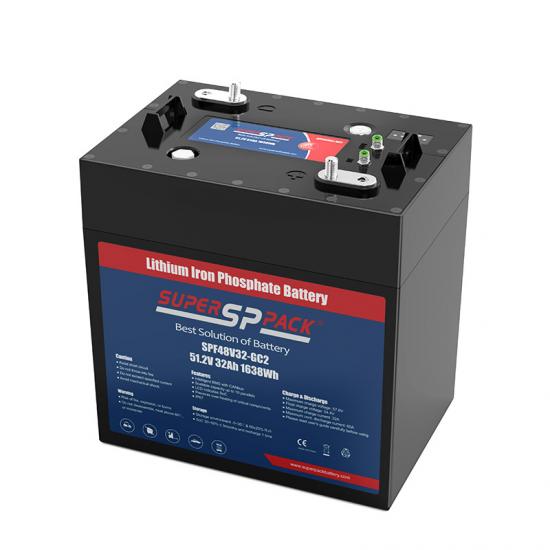

LiFePO4 Battery in GC2 Size
|
Item |
SPF48V32-GC2 |
SPF24V64-GC2 |
SPF12V128-GC2 |
|
Nominal Voltage |
51.2V |
25.6V |
12.8V |
|
Nominal Capacity |
32Ah |
64Ah |
128Ah |
|
Watt-Hours |
1.638KWh |
||
|
Energy Density |
110Wh/Kg |
||
|
Cycle Life |
6000cycles (DOD80%) |
||
|
Charge Efficiency |
99% |
||
|
Resistance @ 50% SOC |
≤30 mΩ |
≤20 mΩ |
≤15mΩ |
|
Max. Cont. Discharge Current |
60A |
100A |
150A |
|
Peak Discharge Current |
100A |
200A |
250A |
|
Max. Cont. Charge Current |
32A @ 25ºC |
64A @ 25ºC |
128A @ 25ºC |
|
Self-Discharge |
<3% per Month @25ºC in Off mode |
||
|
BCI Size |
260 x 180 x 276mm (10.2” x7.1” x 10.9”) |
||
|
Weight |
15.6Kg (34.3Ibs) |
||
|
Case Material |
ABS+PC |
||
|
Stud Terminal |
M8 x 1.25 - 20 |
||
|
Insert Terminal |
M8 x 1.25 - 20 |
||
|
Torque |
79.7-88.5 in-Ibs. 6.6 -7.4 ft-Ibs 9-10 N-m |
||
|
Handles |
Molded |
||
|
Enclosure Protection |
IP67 |
||
|
Case Flame Rating |
UL94-V0 |
||
|
Charge Temperature Range |
32 ~ 113 ºF (0 ~ 45 ºC) |
||
|
Discharge Temperature Range |
-4 ~ 140 ºF (-20 ~ 60 ºC) |
||
|
Relative Humidity |
25 ~ 85% RH |
||
|
Storage Temperature |
-4°F to 95°F (-20°C to 35°C) |
||
|
Certification |
IEC62133, UL2271, CE, UN38.3 |
||
Enhance your low-speed vehicle with lithium batteries: lightweight, fast-charging and long-lasting. Enjoy peak performance and eco-friendliness. Discover the advantages of this advanced power source for efficient and sustainable transportation.
