Enhance your low-speed vehicle with lithium batteries: lightweight, fast-charging and long-lasting. Enjoy peak performance and eco-friendliness. Discover the advantages of this advanced power source for efficient and sustainable transportation.
Brand:
SuperpackProduct Origin:
ChinaColor:
BlackLead Time:

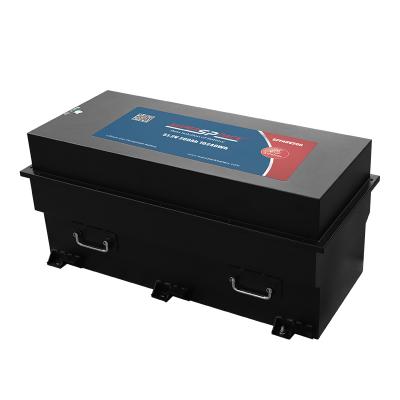

25-30 Working DaysLow Speed Vehicle Lithium Battery systems offer reliable and safe power for various applications, including off-grid setups, using a 51.2V DC Coupled Low Voltage design. With a compact and modular design, they fit seamlessly into any space, indoors or outdoors. These batteries boast longer cycle life and durability compared to other lithium-ion batteries, thanks to their ability to withstand more charge and discharge cycles, reducing the need for replacements. Additionally, these systems are highly scalable and flexible, allowing you to customize your energy storage capacity and configuration based on your specific requirements.
Features& Advantage:
Higher Charging Efficiency, Less Power Consumption:
Superpack LiFePO4 batteries charge quickly, maximizing productivity during short breaks.
100% Recyclable: Our batteries offer easy recycling options to meet rising lithium-ion battery demand.
Advanced BMS: Each battery includes an advanced Battery Management System (BMS) for peak performance and investment protection.
Maintenance-free: Our batteries require no daily management, ensuring hassle-free operation.
Lead Acid Replacement LiFePO4 Battery for Low Speed Vehicle : Switch to green energy with our longer-lasting, longer-range LiFePO4 batteries.
Ultra Safe:
LiFePO4 batteries feature high thermal and chemical stability, along with built-in safety features.
LiFePO4 batteries are durable, reliable, and perfect for powering adventures. Upgrade to rechargeable LiFePO4 batteries for customized solutions in 48V, 36V, and 24V Low Speed Vehicle.
Low Speed Vehicle Lithium Batteries Main Parameter
|
Item |
General Parameter |
Remark |
|
Rated Capacity |
56.0Ah |
Standard discharge to 40V after standard charge (0.2C) to 57.6V |
|
Minimal Capacity |
53.2Ah |
|
|
Nominal Voltage |
51.2V |
|
|
Life Expectation |
Residual capacity is more than 60% of the rated capacity |
1) Charge: CC@0.2C to 57.6V, then CV till current to 0.05C |
|
Discharge cut-off voltage |
2.3V/cell（≥36.8V） |
|
|
Charger constant voltage |
57.6V |
CC/CV charger for lithium ion battery is recommended |
|
Assembly method |
IFR26700EC-4.0Ah |
16S14P (FYI) |
|
Housing material |
Cold rolled steel sheet |
|
|
Standard charge |
0.2C constant current (CC) charge to 57.6V,then constant voltage (CV) 57.6V charge till charge current decline to ≤0.05C |
Charge time : Approx 7.0h |
|
Standard discharge |
Constant current 0.2C |
|
|
Maximum Charge Current |
56A@20℃ |
|
|
Maximum Discharge Current |
56A@20℃ |
|
|
Operation Temperature Range |
Charge: -20~45℃ |
60±25%R.H. |
|
Discharge: -20~60℃ |
||
|
Storage Temperature Range |
Less than 1 year: 0~25℃ |
60±25%R.H. |
|
Less than 3 months:-5~35℃ |
||
|
Approx. Weight |
35Kg |
|
|
Max. Dimension |
L460*W334*H232mm (Unit: mm ) |
|
|
Terminals |
Bolt M8*20mm |
|
|
Internal resistance |
≤30 mΩ @ 50% SOC |
|
|
Communication protocol |
RS485, GX16-6 |
|
|
Batteries in series |
Single use only |
|
Lithium Iron Phosphate (LiFePO4) batteries are widely used in golf carts, e-rickshaws, cleaning machines, electric sightseeing vehicles and utility vehicles, vintage carts, wheelchairs, and handling equipment
Learn More

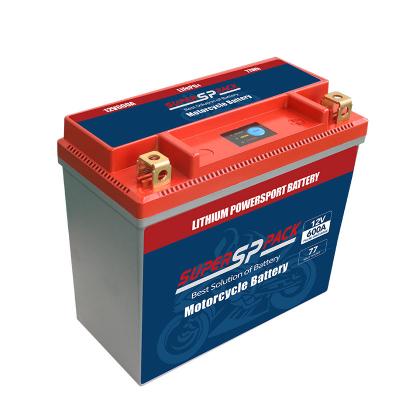

Embark on your adventures with the Superpack lithium powersport battery, designed to elevate your experiences to new heights. Crafted for over 2000 start cycles and offering unparalleled pulse cranking power, it promises an extraordinary journey.
Learn More

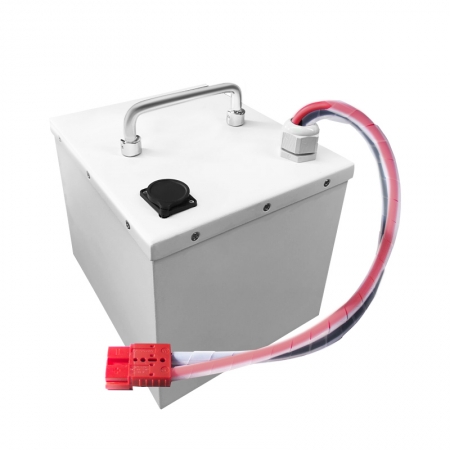

12V50-SM Medical Cart Battery: special designed for computer on wheels/ medical carts/ doctor workstation/ nurse workstation/ mobile cart which can replace U1-12RT, U1-40,U1-45,U1-50 & URB12400-U1-SMB
Learn More

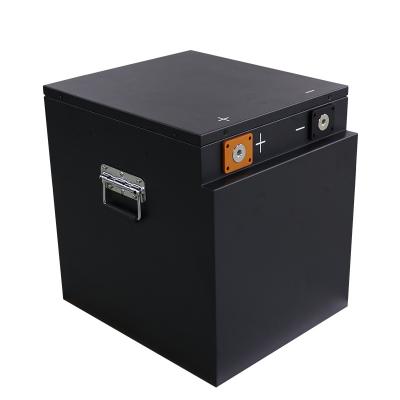

[High Capacity and Efficiency] Rated Capacity of 150Ah and a Minimum Capacity of 147Ah ensure that the battery can store and deliver substantial energy, making it ideal for extended use in golf carts and other electric vehicles. [BMS Multiple protection]The Superpack 48V 150Ah golf cart battery features a unique built-in Battery Management System (BMS) that delivers robust protection against overcharging, over-discharging, overcurrent, short circuits, and temperature extremes. This ensures enhanced safety and reliability for your battery during operation. [Cycle Life] Over 4000 cycles, significantly surpassing traditional lead-acid batteries (300-500 cycles), which reduces long-term replacement costs.
Learn More
Lithium Ion Battery for Electric Scooter
Learn More

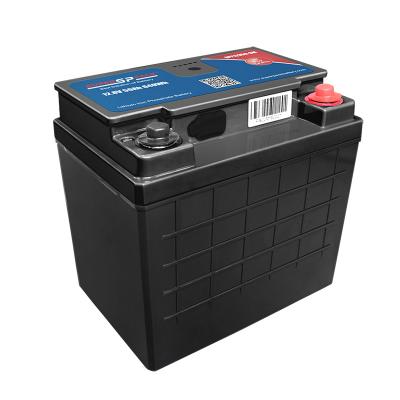

Superpack's 12V 50Ah Battery Pack for Medical Carts, Outdoor Operations, Camping, Trolling Motors, Wheelchairs & Mobility Scooters.
Learn More
Rechargeable 12V 20Ah LiFePO4 lithium ion battery pack for Medical Cart
Learn More

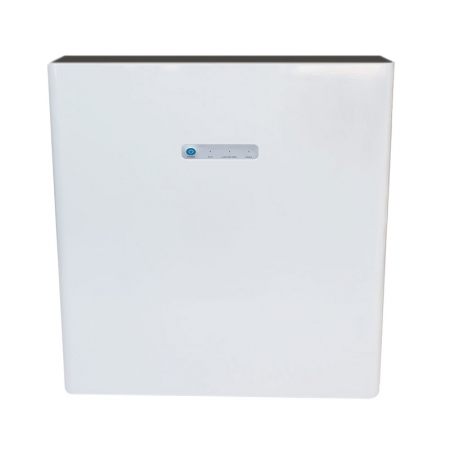

Superpack SPF48V100 energy storage system is completed integrated with deep-cycle lithium iron phosphate battery. It is a low voltage energy storage system and a modular design battery pack 51.2V100Ah. It can be expanded energy from 5KWh to 75KWh for parallel connecting from 1pcs to 15pcs modules. The single module’s maximum output power 5KW. It is suitable for single/3 phase on/off hybrid inverter for residential energy storage system.
