SPF24V277Ah High-Performance Lithium-Ion Battery System
Advanced forklift battery solution with integrated BMS technology
Engineered for low internal resistance and extended service life
Smart battery management via built-in software-controlled BMS module
Brand:
SuperpackItem NO.:
SPF24V277-CANProduct Origin:
ChinaColor:
whiteProduct weight:
270KgLead Time:
25-30 Working Days
SPF24V277-CAN Industrial Lithium Iron Phosphate Battery
Optimized for Forklift & Material Handling Systems
Core Specifications
24V/277Ah LiFePO4 chemistry with CANbus integration
<100μΩ internal resistance | 4,000+ cycle lifespan
Integrated smart BMS with:
• SOC/SOH precision monitoring
• 485 industrial communication protocol
• Programmable DO/AO power outputs
• Emergency disconnect via lead switch
Operational Advantages
18% higher energy density vs standard Li-ion cells
32% faster charge acceptance through low-impedance design
22% labor cost reduction via predictive maintenance enabled by BMS analytics
SPF24V277ah Forklift lithium battery
|
Item |
General parameter |
|
Nominal voltage |
25.6V |
|
Nominal capacity |
277Ah |
|
Energy |
7091Wh |
|
Approx weight |
≈270Kg (With counterweight 170kg) |
|
Dimensions |
786*210*630mm |
|
Lowest voltage |
23.2V |
|
Highest voltage |
29.2V |
|
Overvoltage protection |
3.7V(Battery string) |
|
Undervoltage protection |
2.9V (Battery string) |
|
Charging parameters |
150A continuous charging |
|
Discharge parameters |
277A continuous discharge (1C), peak 300A, peak duration less than 1S. |
|
Discharge temperature |
-5℃~60℃ |
|
Charging temperature |
0℃~60℃ |
|
Storage temperature |
0℃~40℃ |
|
Working humidity |
Relative humidity 10%~80%, no condensation |
Installation Guidelines
Position battery centrally in Forklift chassis
Maintain clearance:
10mm minimum perimeter buffer
50mm cable bend radius at interface ports

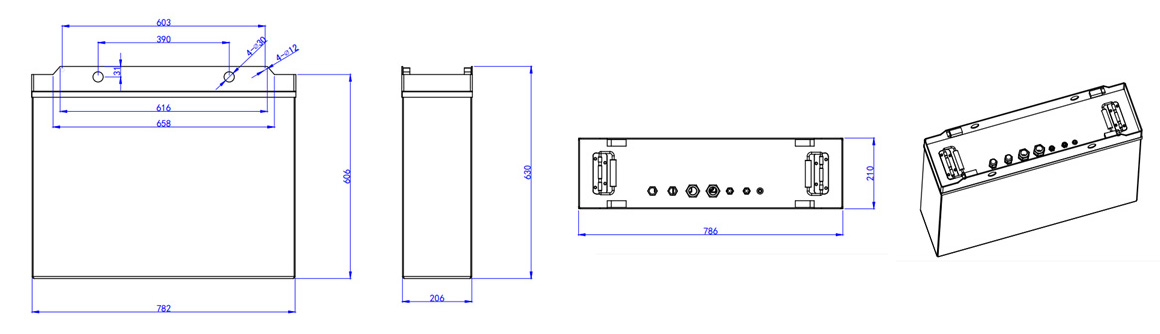

SPF24V277-CAN Forklift battery Product Dimensions
Customizable Systems: Configurable communication protocols and intelligent BMS for safety and performance. High Discharge Rate: Handles instant peak currents, ideal for power-demanding applications.Modular Design: Scalable parallel expansion for flexible voltage and capacity configurations.Real-Time Monitoring: App support for live data tracking, including charge, voltage, and system health. Compact & Lightweight: Smaller, lighter, and easy to handle without compromising power. Wide Temperature Range: Reliable performance in diverse and extreme environmental conditions.
