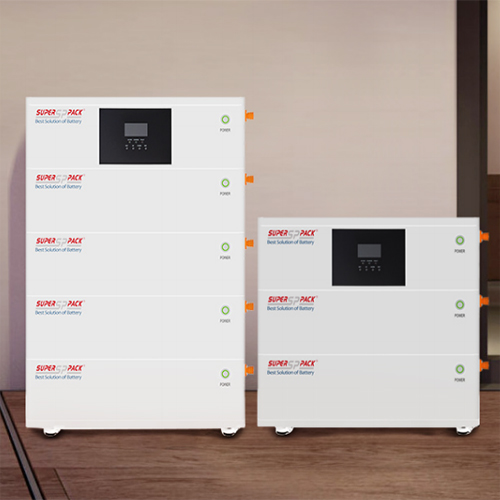

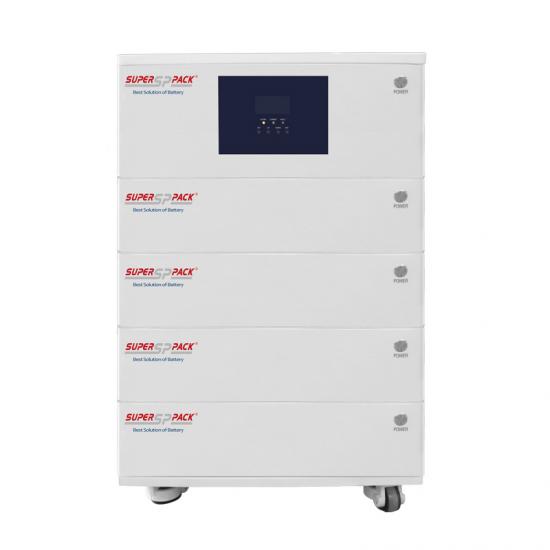

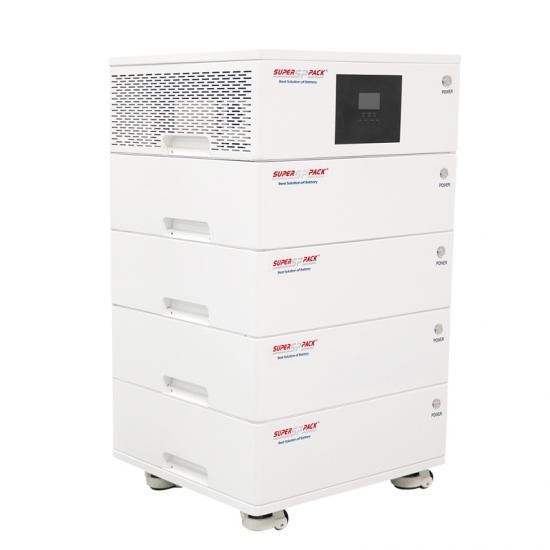

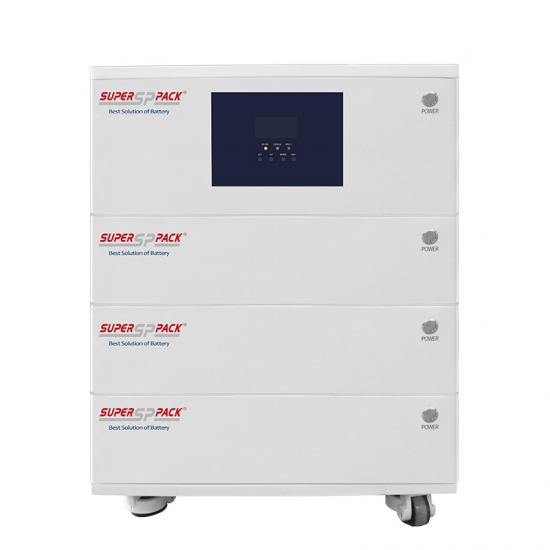

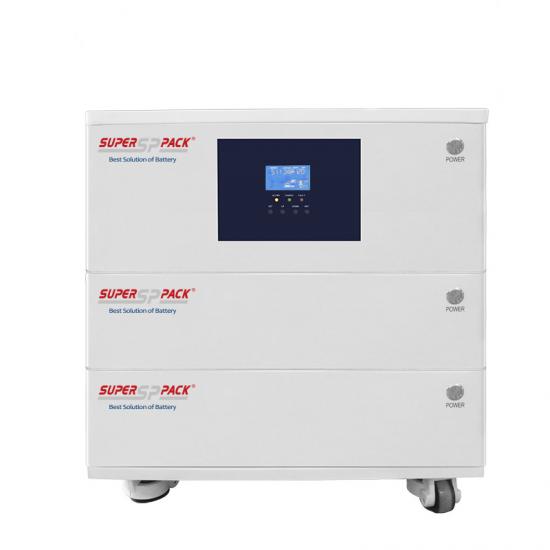

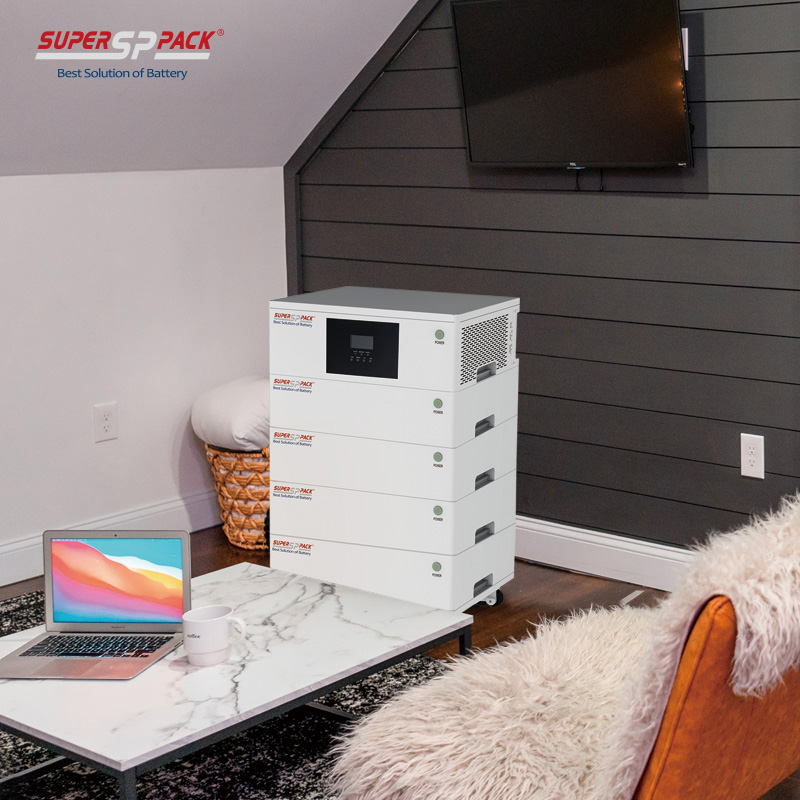

Energy storage system for home with lithium ion battery 5kWh/10kWh/15kWh/20kWh. The all in one energy storage system includes inverter, controller and batteries.
Brand:
SuperpackItem NO.:
SP-ESS-5K-5K-A1Color:
WhiteLead Time:
25-30 Working DaysThe Best Energy Storage System Solution
Energy Storage Systems (ESS) for home can provide solutions to many electric-grid challenges.
The Superpack is available in many sizes: optional 5kWh,10kWh/15kWh/20kWh. So whatever power and capacity you need, the Superpack have the perfect storage solution for your energy needs.
Play and plug connection saves 40% installation time
Large energy storage capacity up to 20kWh.
Designed life-span 6000 times
Over Voltage/Over Temperature/Overload//Overall Full Protection
Monitor your energy remotely via smartphone APP or web
Remote Control | Outdoor Rated | Intelligent Energy Management | Fully Certified & Tested |
App gives you complete control of the energy in your home using real-time data. | Power inverter protect your system even under the most servere conditions. | Meticulously designed to unify the control of your home energy needs. | A grade level quality and fully certified. |
Features:
▪ 5KW Off-Grid Energy Storage System
▪ Battery + Inverter + Controller
▪ Hybrid Solar Inverter 5KW Off-Grid + MPPT controller
▪ Battery Modules 51.2V100AH – LiFePO4

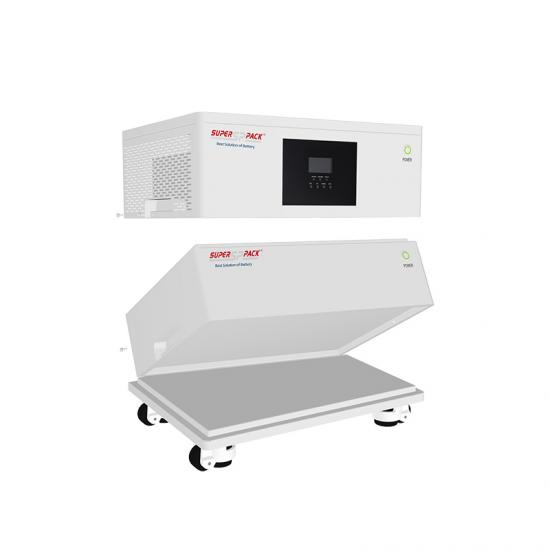

▪ Floor & Wall-Mounting
▪ Multiple Parallel Configuration, Capacity Range 5KWH to 20KWH
▪ Advance BMS Control
▪ Long Cycle Life 6000 Cycles
▪ Calendar Life 10+ years
Specification:
Inverter+Controller Parameter | |
Battery Input | |
Battery Type | LFP |
Rated Battery Input Voltage | 51.2V |
Hybrid Charging Maximum Charging Current | 80A |
Battery Voltage Range | 44.8-57.6V |
Solar Input | |
Maximum PV Open-cir cuit Voltage | 500vdc |
PV Working Voltage Range | 120-500Vdc |
MPPT Voltage Range | 120-450Vdc |
Maximum PV Input Current | 18A |
Maximum PV Input Power | 5200W |
Maximum PV Charging Current | 80A |
AC Input(generator/grid) | |
Mains Maximum Charging Current | 40A |
Rated Input Voltage | 110/120Vac |
Input Voltage Range | (90Vac~140Vac) ± 2% |
Frequency | 50Hz/60Hz (Automatic Detection) |
Mains Charging Efficiency | >95% |
Switch Time (bypass and inverter) | 10ms(Typical Value) |
Maximum Bypass Overload Current | 63A |
AC Output | |
Output Voltage Waveform | Pure Sine Wave |
Rated Output Voltage (Vac) | 120Vac(100/105/110Vac Settable) |
Rated Output Power (VA) | 5000(4100/4300/4500) |
Rated Output Power(W) | 5000(4100/4300/4500) |
Peak Power | 10000VA |
On-load Motor Capacity | 4HP |
Output Frequency Range(Hz) | 50Hz ± 0.3Hz/60Hz ± 0.3Hz |
Maximum Efficiency | >90% |
No-load Loss | Non Energy-saving Mode: ≤50W Energy-saving Mode :≤25W(Manual Setup) |
General | |
Certificate | CE(IEC62109-1)/CETL(UL1741 CSA C22.2 NO .107.1) |
Rated Output Voltage (Vac) | EN61000 |
Working Temperature Range | -15°C~ 55°C |
Storage Temperature Range | -25°C~ 60°C |
Humidity Range | 5% to 95%(Conformal Coating Protection) |
Dimensions | 560*480*200mm |
Weight (KG) | 22kg |
Module Parameter | |
Battery Type | LFP |
Battery Rated Voltage | 51.2V |
Battery Working Voltage Range | 44.8~ 57.6V |
Maximum Charging Current | 100A |
Maximum Discharging Current | 100A |
DOD | 6000cycles@80%DOD |
Parallel Quantity | 4 |
Dimension W × L× H | 560x480x150mm |
Weight | 49 kg |
Base Parameter | |
Material | Steel |
Dimension L× D× H | 560x480x70mm |
Weight | 7 kg |
BATTERY | SP-ESS-5K-5K-A1 | SP-ESS-5K-10K-A1 | SP-ESS-5K-15K-A1 | SP-ESS-5K-20K-A1 |
Battery Module | 1 | 2 | 3 | 4 |
Battery Energy | 5.12kWh | 10.24kWh | 15.36kWh | 20.48kWh |
Battery Capacity | 100AH | 200AH | 300AH | 400AH |
Weight | 78kg | 127kg | 176kg | 225kg |
Dimension L× D× H | 560x480x420mm | 560x480x570mm | 560x480x720mm | 560x480x870mm |
PV CHARGE | ||||
Solar Charge Type | MPPT | |||
Maximum Output Power | 5KW | |||
PV Charging Current Range | 0~80A | |||
PV Operating Voltage Range | 120~500V | |||
MPPT Voltage Range | 120~450V | |||
AC CHARGE | ||||
Maximum Charge Power | 3150W | |||
AC Charging Current Range | 0~40A | |||
Rated Input Voltage | 110/120Vac | |||
Input Voltage Range | 90~140Vac | |||
AC OUTPUT/ INVERTER | ||||
Rated Output Power | 5KW | |||
Maximum Output Current | 42A | |||
Frequency | 50Hz | |||
Overload Current | 45A | |||
Maximum Peak Power | 10KVA | |||
Maximum Efficiency | >90% | |||
Rated Output Voltage (Vac) | 120Vac | |||
Auto Switch Period | <10ms | |||
THD | <3% | |||
GENERAL DATA | ||||
Communication | RS485/CAN/WIFI(optional) | |||
Storage Time / Temperature | 6 months @25℃;3 months @35℃;1 months @45℃; | |||
Charging Temperature Range | 0~45℃ | |||
Discharging Temperature Range | -10~45℃ | |||
Operation Humidity | 5% ~ 85% | |||
Nominal Operation Altitude | <2000m | |||
Cooling Mode | Electric Fan | |||
Noise | 60dB(A) | |||
Ingress Protection Rating | IP20 | |||
Recommended Operation Environment | Indoor | |||
Installation Method | Horizontal | |||
Certification | UL1741, UL1973, UN38.3, MSDS |
