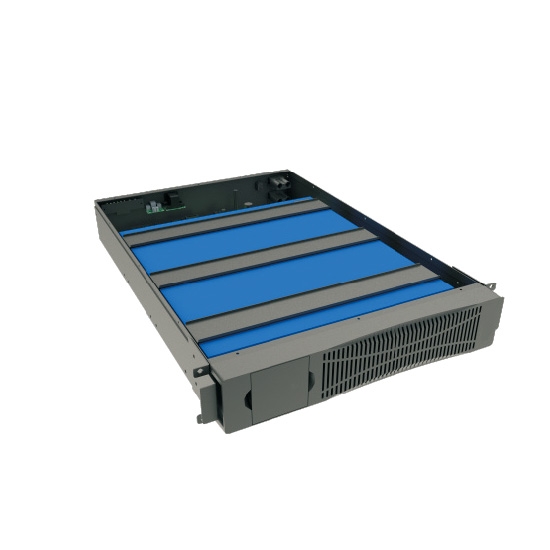

Superpack UPS Backup Power Supply for Renewable Energy Systems
Emergency power backup for commercial, multi-residential, data center, hospital, or other type of facility
Brand:
SuperpackItem NO.:
SP-24V-2KWSuperpack UPS Backup Power Supply
Explore The Full Range Of Battery Solutions To Meet Your Backup Power Requirements. get more reliable, valuable, accurate date from your battery backup. Battery monitoring systems, network monitoring, For A Complete, Seamless Backup Power Solution.
Superpack UPS Backup Power prepares you for your next power outage and never has to worry about running out of power.
|
Model |
SP-24V-2KW |
|
Nominal Voltage(Vdc) |
25.6 |
|
Nominal Capacity |
50.4Ah |
|
Series and Parallels |
8S14P |
|
Max. Continuous Output Current(A) |
75 |
|
Max. Continuous Output Power(kW) |
2 |
|
Charging voltage(Vdc) |
29.2 |
|
Output Voltage of Battery Pack(Vdc) |
20~29.2 |
|
Charging current |
0.5C(max) , 0.2C(typical) |
|
Recommend charge operation temperature range |
0~45 |
|
Output Protection |
Fuse |
|
Typical Recharge Time(90%capacity) |
2~2.5hours@25A， 5hours@10A |
|
Typical Discharge Time |
35min@2kW ,70min@1kW,105min@0.5kW |
|
Typical Life Time |
3~8 years,depending on the usage |
|
Typical Cycle Time |
2000 cycles(80%DOD,3500cycles(50%DOD), depending on discharge current and ambient temp |
|
Dimensions W X H X D （mm） |
440*86.5*460(2U) |
|
Net Weight(kg) |
16 |
|
Operating Temperature (max) |
0 to 45℃ |
|
Operating Humidity |
RH≤70% Non-Condensing |
|
Storage Temperature (max) |
0 to 40°C （short-term storage）, 15 to 25℃ (long-stem storage) , 80% of full capacity |
|
Storage Humidity |
RH≤70% Non-Condensing |
24V48Ah LiFePO4 Lithium Battery, Deep Cycle Rechargeable Perfect for Solar Generator, Solar Panel, UPS, Outdoor Light, Mobility Scooter, Cleaning,Power Wheels,Fish Finder, Power Station
Learn More
12.8V 7.2Ah LiFePO4 Battery: Application: solar lighting, LED TV and so on.
Learn More

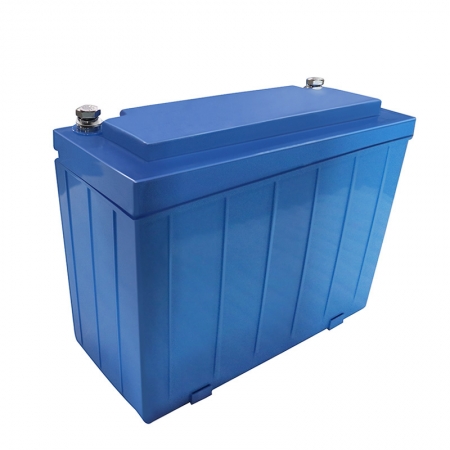

Lithium ion battery for marine-12.8V 300Ah with In built BMS Superpack 12V Lithium Iron Phosphate battery is ideal for sealed lead battery replacement.
