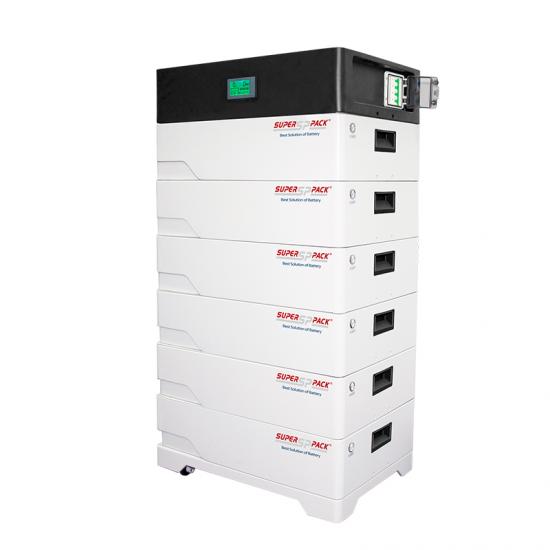

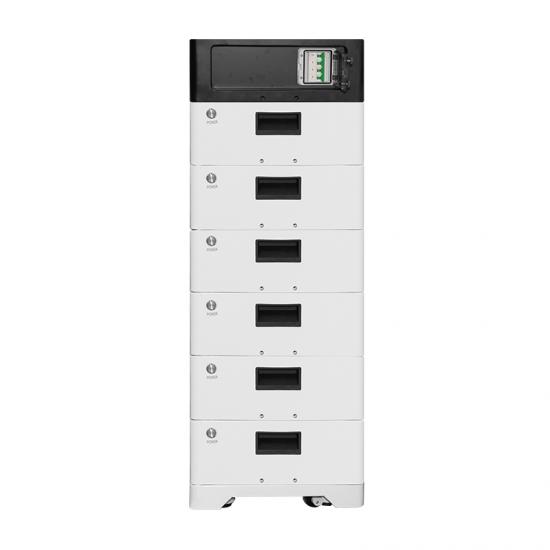

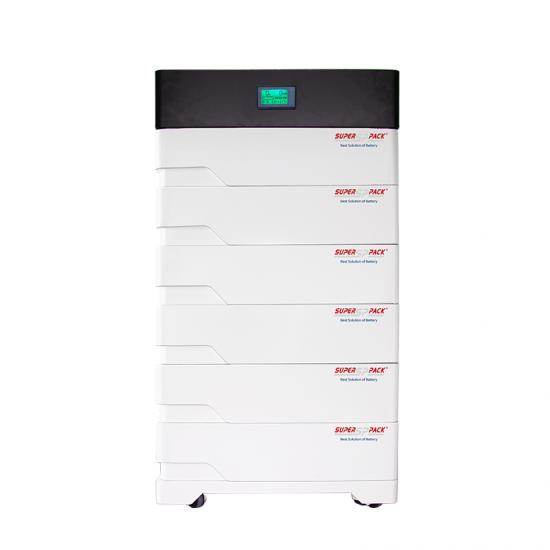

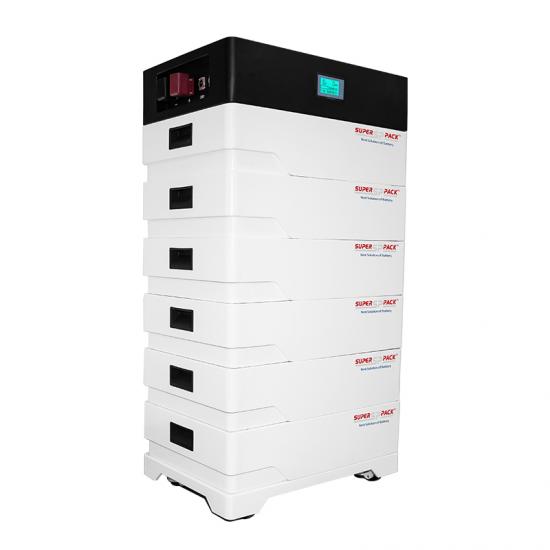

Superpack's 30kWh modular LiFePO4 battery is an advanced and flexible energy storage solution, offering multiple layers of protection and top-tier safety performance.
Brand:
SuperpackProduct Origin:
ChinaColor:
White+BlackLead Time:
25-30 Working Days
This advanced energy storage solution features a single 51.2V 100Ah module, powered by 6 LiFePO4 battery modules, delivering reliable and efficient performance.
Ideal for both residential and commercial applications, this home lithium battery system can serve as a UPS (Uninterruptible Power Supply) or a solar energy storage system. With a Maximum Charge Current of 300A, it ensures superior charge and discharge efficiency, fast charging capabilities, and enhanced energy conversion, making it ideal for optimal energy storage and management. This system provides a sustainable, eco-friendly solution for both energy storage and backup power needs."
◉ High current charging and discharging performance is excellent, single battery pack can meet the normal use of 5KWH household appliances.
◉ Intelligent control, visual design
◉ More than 6,000 charge cycles for long-lasting performance.
◉ Small internal resistance, superior discharging performance;
◉ Multiple battery modules can be stacked, allowing for flexible selection of voltage and capacity to suit diverse application requirements.
◉ Supports RS232, RS485, and is compatible with most popular hybrid and off-grid inverters on the market."
◉ Brand new A-grade lithium iron phosphate battery with safety
◉ Long cycle life, reduce maintenance cost.
◉ No matching and commissioning required, easy to install
|
Item |
General Parameter |
| Rated Capacity | 100Ah |
| Minimum Capacity | 95Ah |
| Nominal Voltage | 51.2V |
| Life Expectation |
Higher than 80% of the Initial Capacity of the battery |
| Discharge cut-off voltage | 43.2V(2.7V/Cell) |
| Charge limiting voltage | 58.4V(3.65/Cell) |
| Cell and assembly method | IFP48173115-3.2V100Ah |
| Housing material | Iron |
| MaximumCharge Current | 300A |
| Maximum Continuous Discharge Current | 300A |
| Operation Temperature Range |
Charge：0～55℃ Discharge：20～60℃（cell surface temperature≤80℃） |
| Approx. Weight | (47.5±0.5)Kg |
| Internal resistance | ≤20mΩ |

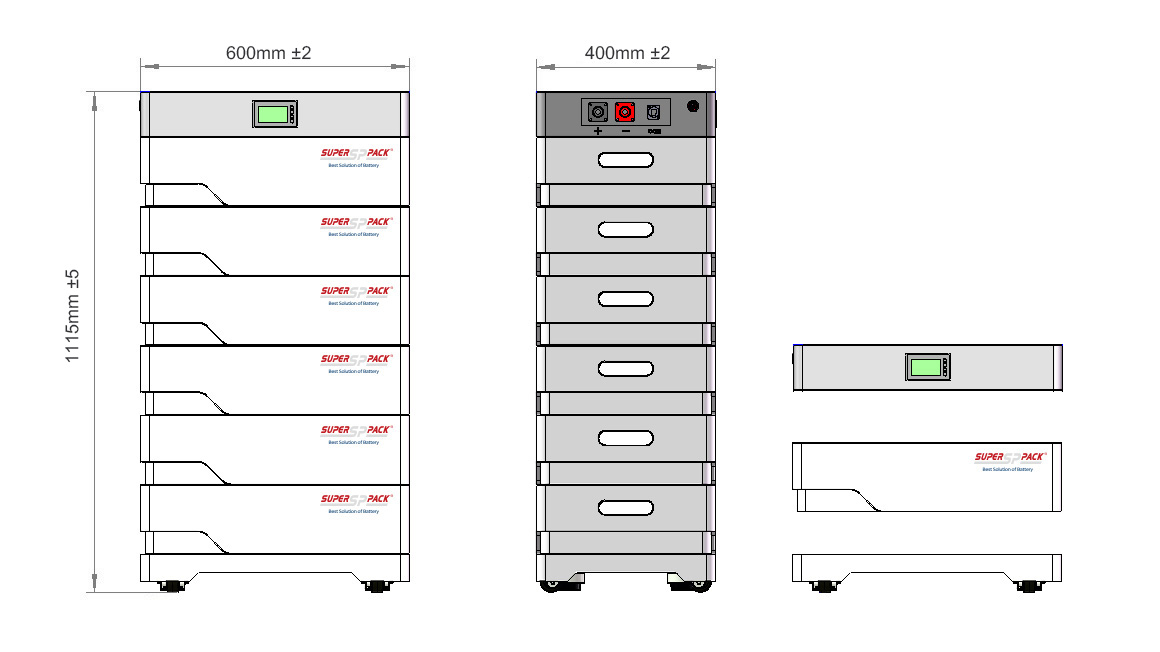

| Dimension | L*W*H=（635*420*1170mm）±2mm |

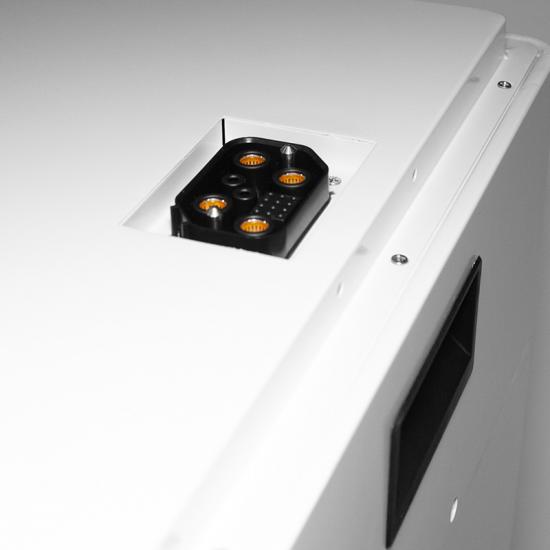

| Terminals | GPF18 |
| Communication | RS232/RS485/CANbus |
FAQ
How does a home battery energy storage system work?

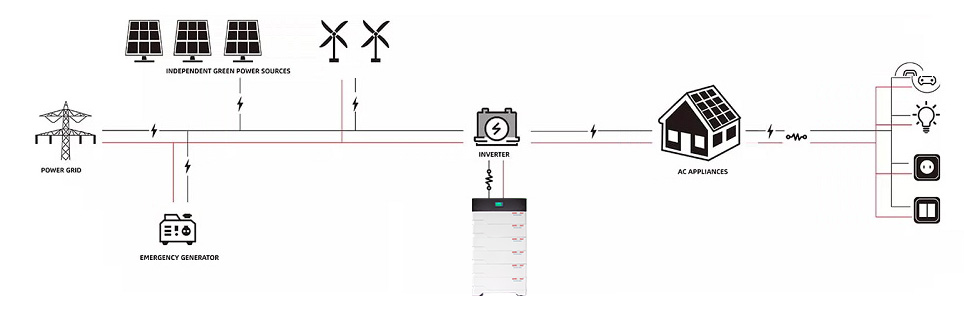

Home battery energy storage systems typically consist of several key components: Battery Cells & Modules: Lithium-ion battery cells are manufactured by suppliers and assembled into modules, the smallest unit of an integrated system. Battery Racks: Modules are connected in racks to store the energy, generating direct current (DC). Inverter: The inverter converts the stored DC output into alternating current (AC) for use in your home. Battery Management System (BMS): The BMS manages the battery's performance, ensuring safe operation, and is usually integrated with the factory-made modules. For solar power systems, solar panels are connected to a controller, which then stores the energy in the battery racks. When energy is needed, the battery's DC current passes through an inverter, which converts it into AC for use in your home.
A home battery can power essential appliances such as:
How much energy can a home battery energy storage system store?
Energy storage is measured in kilowatt-hours (kWh), with battery capacities typically ranging from 1 kWh to over 10 kWh. Most households opt for batteries with around 10 kWh of storage capacity.
A fully charged 10 kWh battery (minus a minimum charge for battery longevity) can power various household appliances for different durations:
In the event of a blackout, a 10 kWh battery can typically provide power for 10 to 12 hours, depending on which appliances are connected.

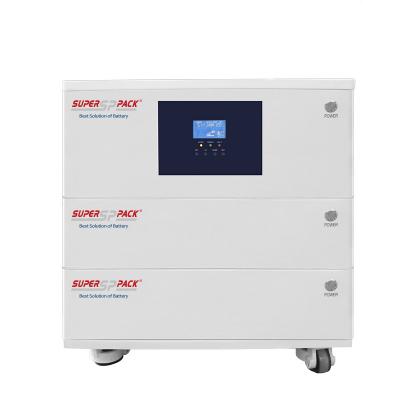

Energy storage system for home with lithium ion battery 5kWh/10kWh/15kWh/20kWh. The all in one energy storage system includes inverter, controller and batteries.
Learn More

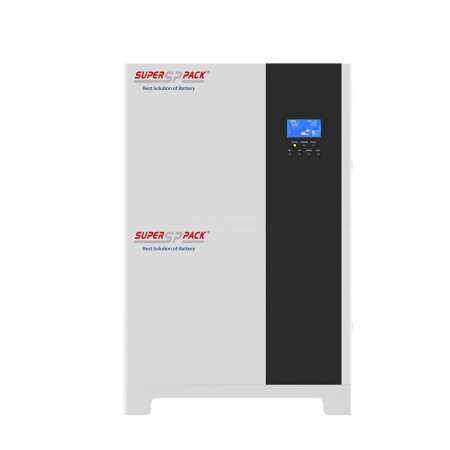

5KW All-In-One Off-Grid Energy Storage System Floor Mounting is made of lithium iron phosphate battery, which is safety, long life, low internal resistance, and high charge and discharge efficiency.
Learn More

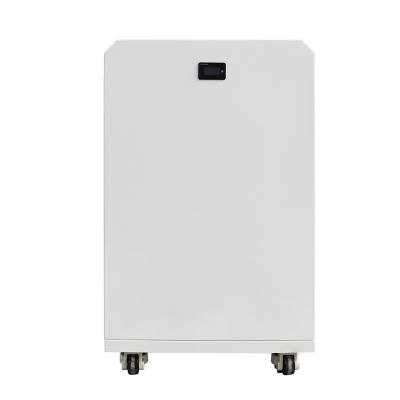

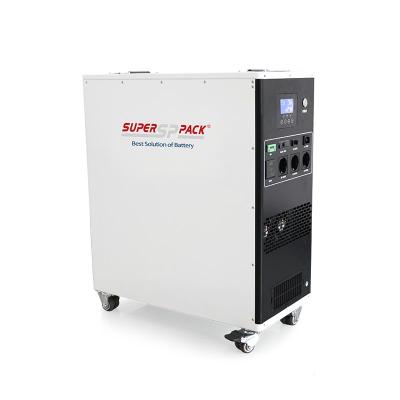

SP-ESS-1.5K-5K-E1 Wheeled home energy storage system for easy mobility, a flexible modular design,Scalable from 5 to 20 KWh
