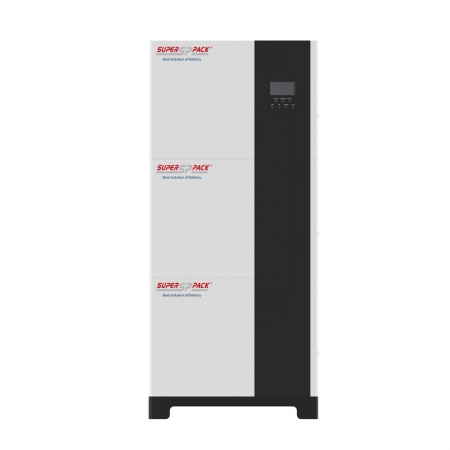

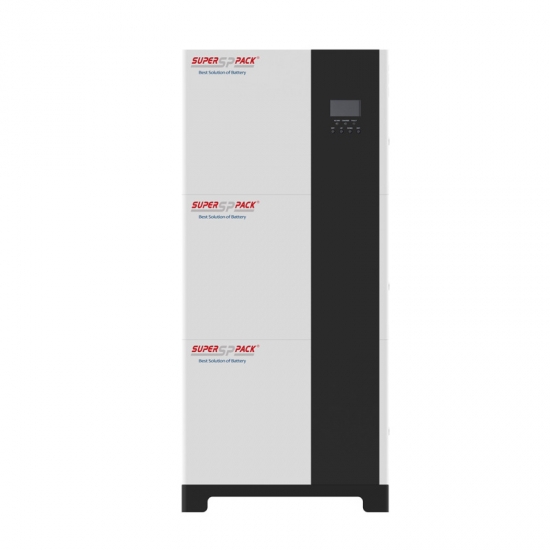

5KW All-In-One Off-Grid Energy Storage System

5KW All-In-One Off-Grid Energy Storage System Floor Mounting is made of lithium iron phosphate battery, which is safety, long life, low internal resistance, and high charge and discharge efficiency.

  • Brand:

    Superpack
  • Item NO.:

    SP-ESS-5K-5K-A2
  • Product Origin:

    China
  • Color:

    white+Black
  • Lead Time:

    25-30 Working Days
  • Product Details

Superpack All-In-One Off-Grid Energy Storage System

Power Control Module
The energy storage system consists of a power control and battery expansion modules. It can store and release electric energy based on the requirements of the inverter management system. The input and output ports of the battery are low-voltage direct current ports. The power control module is an all-in one off-grid system with inverter + MPPT+ AC charger.

Battery Capacity
The battery supports capacity and power expansion. One inverter supports a maximum of four battery expansion modules in parallel from 5KWH to 20KWH. If it needs to expand power to 10KW, it can connect two inverter in parallel, please consult with our engineer before purchase the system.

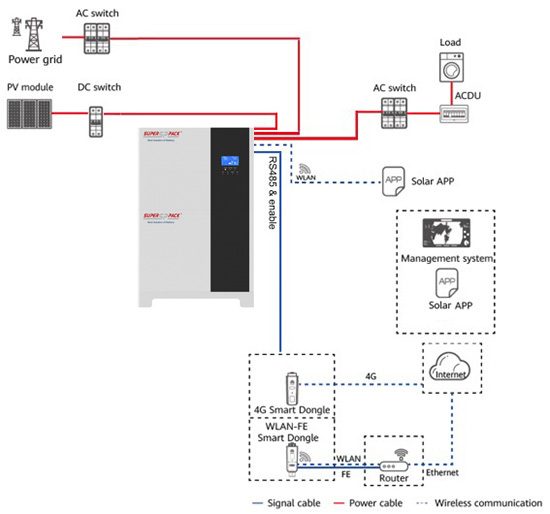

Off-grid ESS Networking
The Off-grid ESS is mainly used in the scenario where there is no grid and the system operates in pure off-grid mode. The pure off-grid ESS stores the generated PV energy in batteries and supplies power to loads when the PV energy is insufficient or there is no PV energy at night.






Main Features

• 5KW All-In-One Off-Grid Energy Storage System (Single Phase)

• Lithium Iron Phosphate Battery + Off-grid Single-phase Inverter + MPPT Charging Controller

• High Safety: Low-voltage ESS

• Single battery module: SPF48V100-SM 51.2V100AH, 5.12KWH, can be independent operating

• Multiple parallel configuration from 1 to 3 battery modules to expand energy from 5KWH to 15KWH

• For the system in parallel to expand outpout power to 10KW or more, please consult with our engineers and undering the guidance

• Rated AC output power 5KW

• Advanced BMS control

• Long cycle life: 6000cycles

• Calendar life: 10+ years

• Compact size and space saving: 3U height

• Installation styles: Stack

• Various countries and regions ready

• Certificate:

For Europe, Australia and Japan: TUV IEC62619/CE-IEC61000/IEC62040

For America, Canada: UL1973, UL9540A



Specifications:

Battery + Inverter + Controller
Battery Input LFP
Rated Battery Input Voltage 51.2V
Hybrid Charging Maximum Charging Current 80 A
Battery Voltage Range 44.8-57.6V
Solar Input
Maximum PV Open-circuit Voltage 500 VDC
PV Working Voltage Range 120-500 VDC
MPPT Voltage Range 120-450 VDC
Maximum PV Input Current 18 A
Maximum PV Input Power 5200 W
Maximum PV Charging Current 80 A
AC Input(generator/grid)
Mains Maximum Charging Current 40A
Rated Input Voltage 110VAC/120VAC
Input Voltage Range (90Vac-280Vac)±2%
Frequency 50Hz/ 60Hz (Automatic Detection)
Mains Charging Efficiency > 95%
Switch Time (bypass and inverter) 10ms (Typical Value)
Maximum Bypass Overload Current 63A
AC Output
Output Voltage Waveform Pure Sine Wave
Rated Output Voltage (VAC) 120Vac (100/105/110Vac Settable)
Rated Output Power (VA) 5000 (4100/ 4300/4500)
Rated Output Power(W) 5000 (4100/ 4300/4500)
Peak Power 10000VA
On-load Motor Capacity 4HP
Output Frequency Range (Hz) 50Hz 土0.3Hz/60Hz±0.3Hz
Maximum Efficiency >90%
No-load Loss Non Energy-saving Mode: ≤50W Energy-saving Mode :≤25W (Manual Setup )
General
Certificate CE(IEC62109-1)/CETL(UL 1741 CSA C22.2 NO .107.1)
EMC Certificate EN61000
Working Temperature Range -15°C ~ 55°C
Storage Temperature Range -25°C ~ 60°C
Humidity Range 5% to 95%(Conformal Coating Protection)
Dimensions W600*D165*420mm
Weight (KG) 23kg
Module Parameter
Battery Type LFP
Battery Rated Voltage 51.2 V
Battery Working Voltage Range 44.8 ~ 57.6 V
Maximum Charging Current 100 A
Maximum Discharging Current 100 A
DOD 80%
Parallel Quantity 3
Dimension L × D × H W600 x D165 x 420 mm
Weight 52 kg
Base Parameter
Material Steel
Dimension L × D × H W600 x D165 x H80 mm
Weight 8 kg
System Parameter
Model No. SP-ESS-5K-5K-A2 SP-ESS-5K-10K-A2 SP-ESS-5K-15K-A2
Battery Module 1 2 3
Battery Energy 5.12kWh 10.24kWh 15.36kWh
Battery Capacity 100AH 200AH 300AH
Weight 83kg 135kg 187kg
Dimension L × D × H W600 x D165 x H920 mm W600 x D165 x H1340 mm W600 x D165 x H1760 mm
PV CHARGE
Solar Charge Type MPPT
Maximum Output Power 5KW
PV Charging Current Range 0~80A
PV Operating Voltage Range 120~500V
MPPT Voltage Range 120~450V
AC CHARGE
Maximum Charge Power 3150W
AC Charging Current Range 0~40A
Rated Input Voltage 110/120Vac
Input Voltage Range 90~140Vac
AC OUTPUT/ INVERTER
Rated Output Power 5KW
Maximum Output Current 42A
Frequency 50Hz
Overload Current 45A
Maximum Peak Power 10KVA
Power Factor 1
Rated Output Voltage (VAC) 120Vac
Auto Switch Period <10ms
THD <3%
GENERAL DATA
Communication RS485/CAN/WIFI(optional)
Storage time / temperature 6 months @25℃;3 months @35℃;1 months @45℃
Charging temperature range 0~45℃
Discharging temperature range -10~45℃
Operation Humidity 5% ~ 85%
Nominal Operation Altitude <2000m
Cooling Mode Electric Fan
Noice 60dB(A)
Cycle Life 6000 cycles at 80% DOD
Ingress Protection Rating IP20
Recommended Operation Environment Indoor
Installation Method Floor Mounting
Certification UN38.3, MSDS



Product Details:

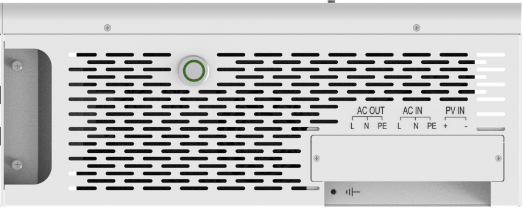

AC input/Output Ports
