Brand:
SuperpackPayment:
T/T in advanceProduct Origin:
ChinaColor:
White/BlackLead Time:
25-30 Working Days

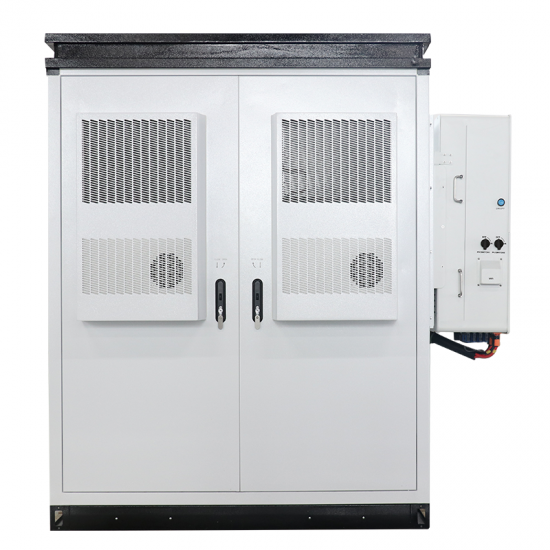

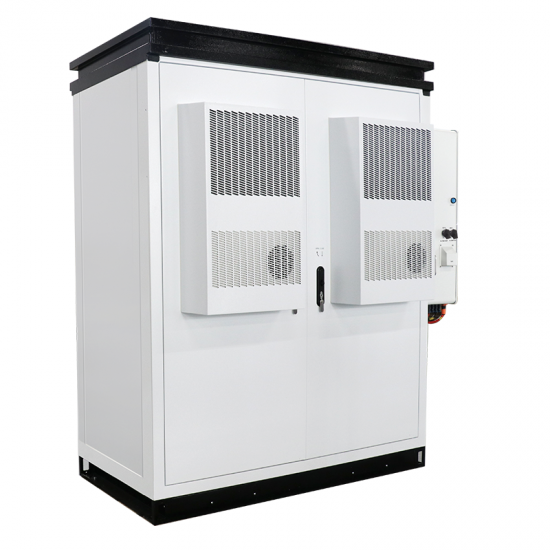

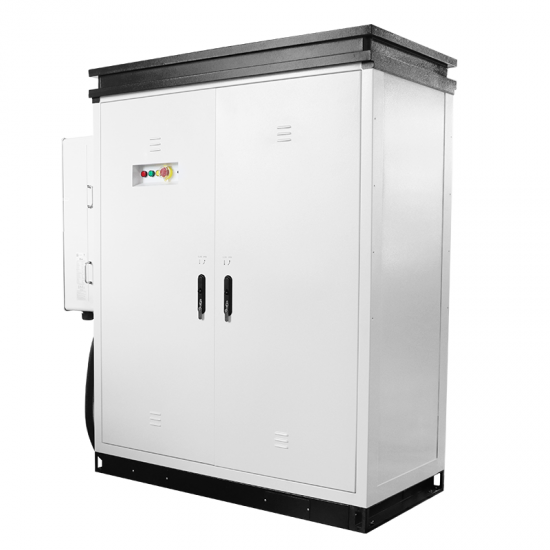

Battery Energy Storage System-connectedIndustrial Pack Grid Grid-connectedBusiness District & MallStationEV Charging Farm Microgrid Island Microgrid MicrogridRemote Villages 50kWh/70kWh commercial and industrial energy storage solutions
Product Features

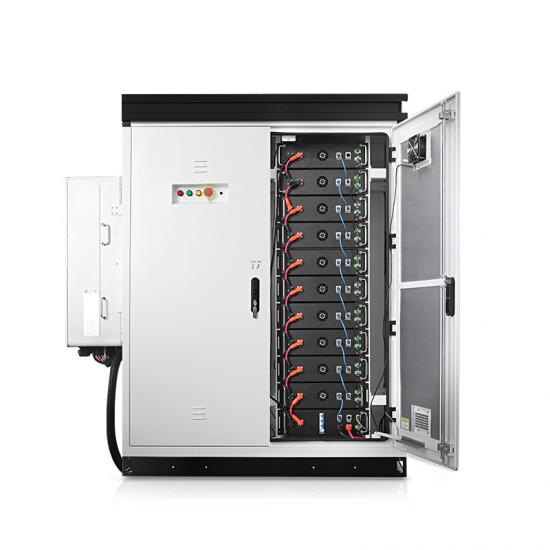

● 10/14pcs 51.2V LiFePO4 battery module in series + 1pc HV controller, compact design.
● RS485/CANbus, compatible with main brand inverters.
● Easy to install.
● Suitable for 3 phases on/off grid solar energy storage.
● Work with 25kW hybrid inverter.
Product Specification
| Model |
25KW/50KWH-2H |
30KW/60KWH-2H |
35KW/60KWH-2H |
50KW/100KWH-2H |
|
No. of Battery Module |
10 |
12 |
14 |
20 |
|
Rated Voltage |
512V |
614.4V |
716.8V |
512V |
|
System Capacity |
50kWh |
60KWh |
70KWh |
100KWh |
|
Rated Output Power |
25KW |
30KW |
35KW |
50KW |
|
Operating Time |
2h |
2h |
2h |
2h |
|
No.of Battery Stack in Parallel |
25 |
25 |
25 |
/ |
|
Dimensions (W*D*H) |
600*600*1750mm |
600*600*2050mm |
600*600*2335mm |
1500*1050*1950mm |
|
Weight (kg) |
600Kg |
700Kg |
800Kg |
1250Kg |
|
Installation Type |
Rack |
Power Cabinet |
||
|
Enclosure Protection |
P20 |
IP55 |
||
|
Warranty |
10years |
|||
|
Cell Type & Capacity |
LiFePO4-100A |
|||
|
Battery Module Type |
16S1P (3U) |
|||
|
Altitude |
< 2000m ( 2000~3000m be derated output power) |
|||
|
Charging Temperature |
0~55°C |
|||
|
Discharging Temperature |
-20~60°C |
|||
|
Relative Humidity |
45~85%R.H |
|||
|
Cooling Method |
Forced Air Cooling |
|||
|
Noise Emission |
≤ 75dB |
|||
|
Fire Fighting System |
FAS & FM2000 / Novec 1230 |
|||
|
Communication Port |
CAN / RS485 |
|||
|
Certification |
TUV/CE/IEC62619/UN38.3/UL |
|||
Its SP-ESS-5K-20K-A1 compact and modular design allows for flexible installation options, making it suitable for a wide range of residential properties. you can enjoy more reliable and consistent energy storage, allowing you to maximize the benefits of your solar energy system.Plus, with its smart monitoring and management features, you can easily track your energy usage and optimize your system for maximum efficiency
